Removal and Installation: Notes

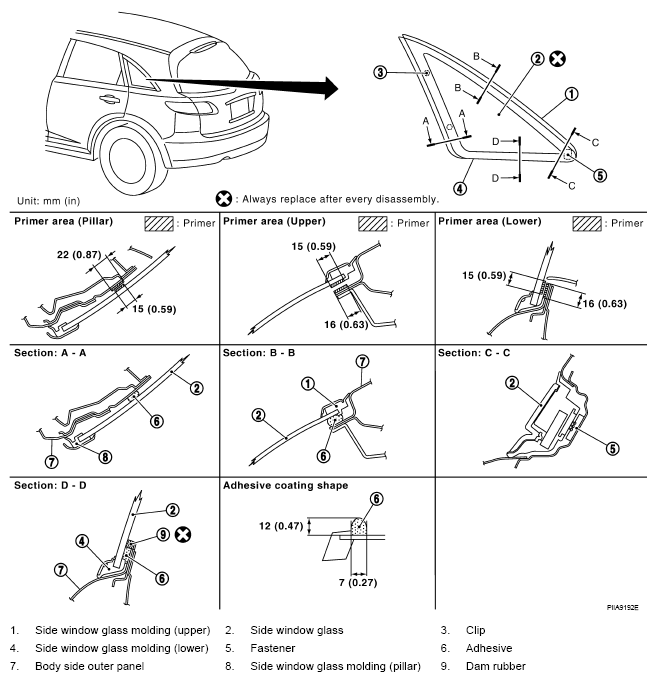

Fig 1: Identifying Side Window Glass Components

G05221249

Courtesy of NISSAN MOTOR CO., U.S.A.
