Home >> Infiniti >> 2007 >> FX45 >> Repair and Diagnosis >> Body & Frame >> Seats >> Front Seat >> Removal and Installation >> Notes

Removal and Installation: Notes

CAUTION: Do not disassembly the component parts of only front passenger seat in the dotted lines shown in the figure below.

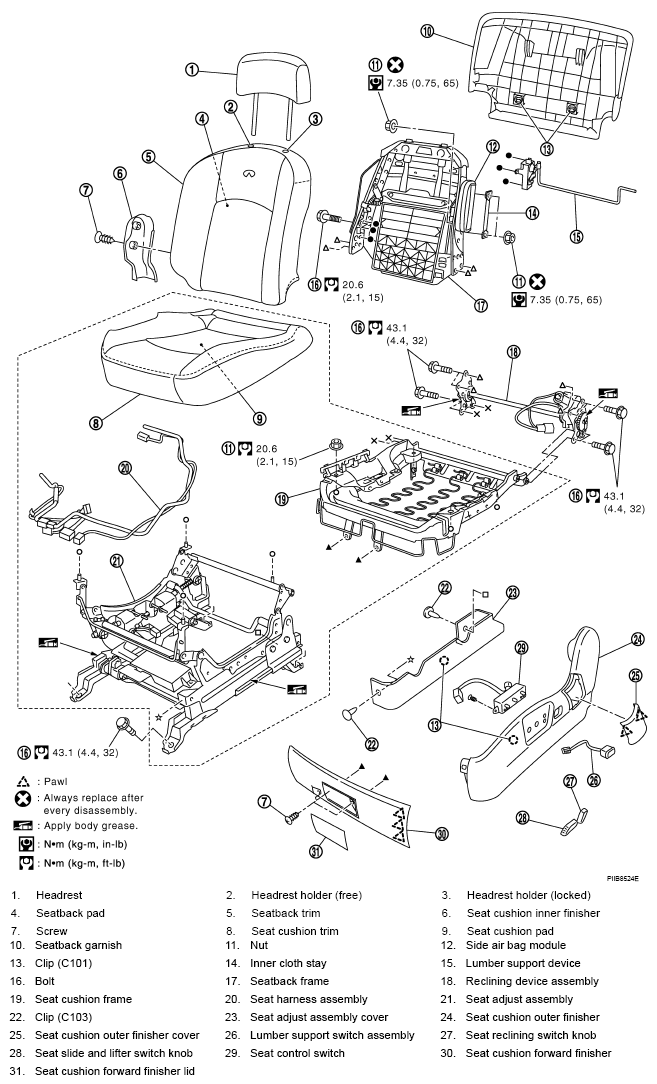

Fig 1: Front Seat Replacement Components With Torque Specifications
G05221615Courtesy of NISSAN MOTOR CO., U.S.A.
