Memory Storing And KEYFOB Interlock Storing

• Store the 2 driving positions and shifts to the stored driving position with the memory switch.
• Keyfob interlock function is set simultaneously with setting driving position memory. It can set driving position to memory position.

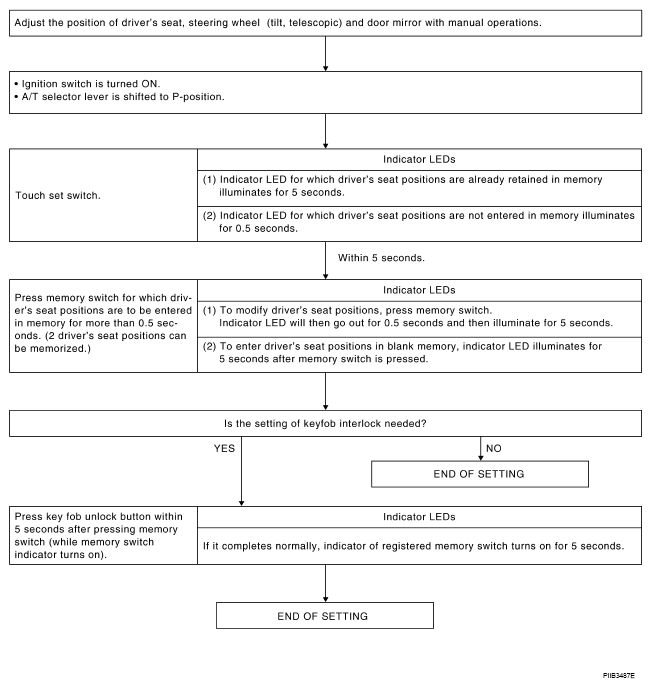

Fig 1: Identifying Memory Storing And Keyfob Interlock Storing - Diagnostic Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

• If another keyfob interlock function setting is performed by same key, newly registered setting is valid.
• If new memory string is performed to memory switch that already set keyfob interlock function, keyfob interlock function setting is reset.
• If key does not set previously, keyfob interlock function cannot set.
