Schematic/With Intelligent Key

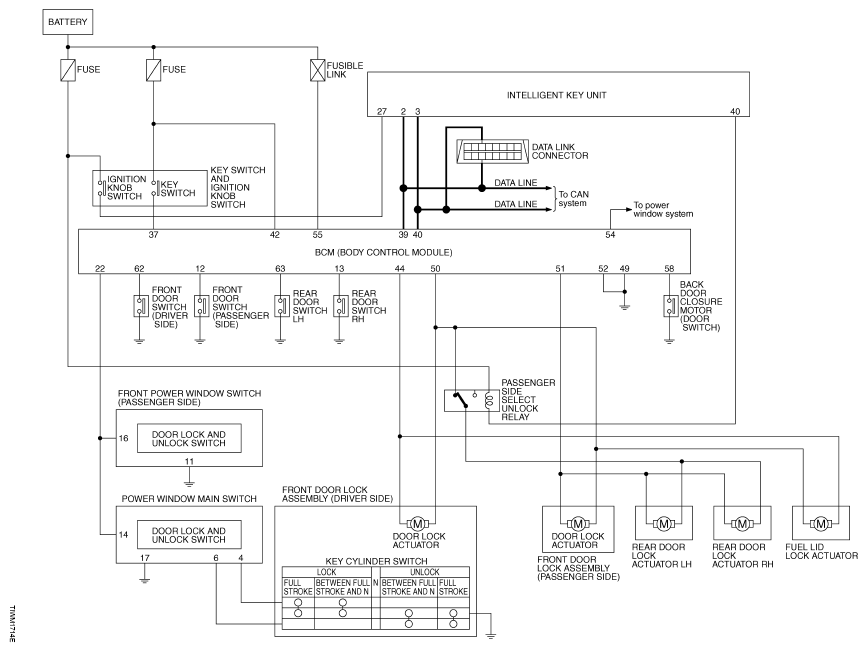

Fig 1: Identifying Schematic Diagram (With Intelligent Key)

G05220758

Courtesy of NISSAN MOTOR CO., U.S.A.
