Home >> Infiniti >> 2007 >> FX35 RWD >> Repair and Diagnosis >> Steering >> Power Steering System >> Power Steering Oil Pump >> Disassembly and Assembly (VK45DE Models) >> Components

Disassembly and Assembly (VK45DE Models): Components

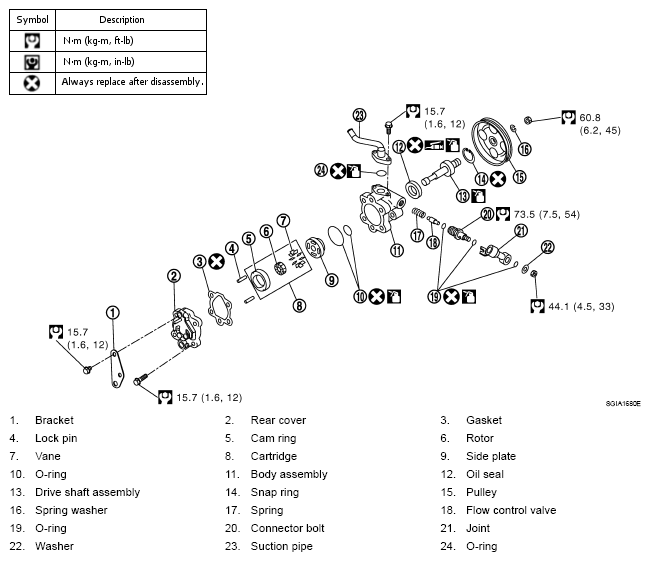

Fig 1: Exploded View Of Power Steering Oil Pump Components (VK45DE Models) With Torque Specifications

G05220644
