Power Window System: Schematic

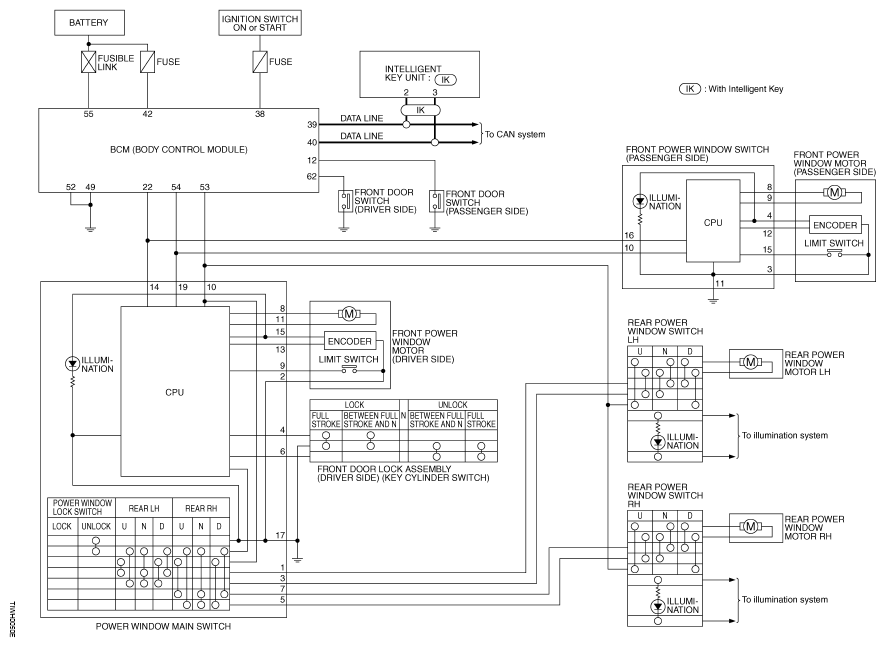

Fig 1: Identifying Power Window - Schematic Diagram

G05221170

Courtesy of NISSAN MOTOR CO., U.S.A.
