Remote Keyless Entry System: Schematic

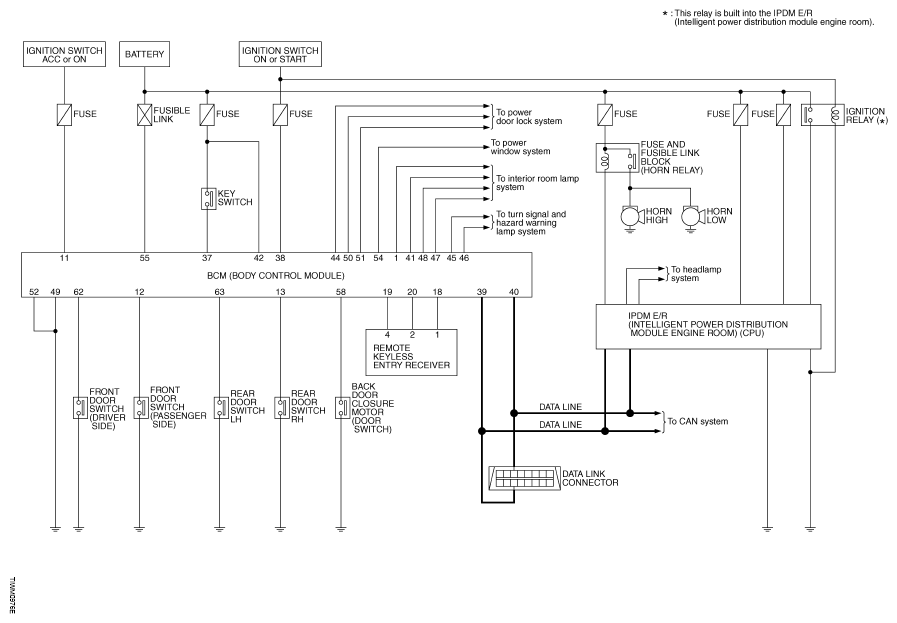

Fig 1: Identifying Schematic Diagram

G05220808

Courtesy of NISSAN MOTOR CO., U.S.A.
