Transfer Fluid: Replacement: Draining

  1. Stop the engine.
  2. Remove the drain plug and gasket to drain the transfer fluid as shown.
  3. Install the new gasket on the drain plug and install the drain plug in the transfer. Tighten the drain plug to specification.

    Drain plug : Refer to " COMPONENTS  "  .

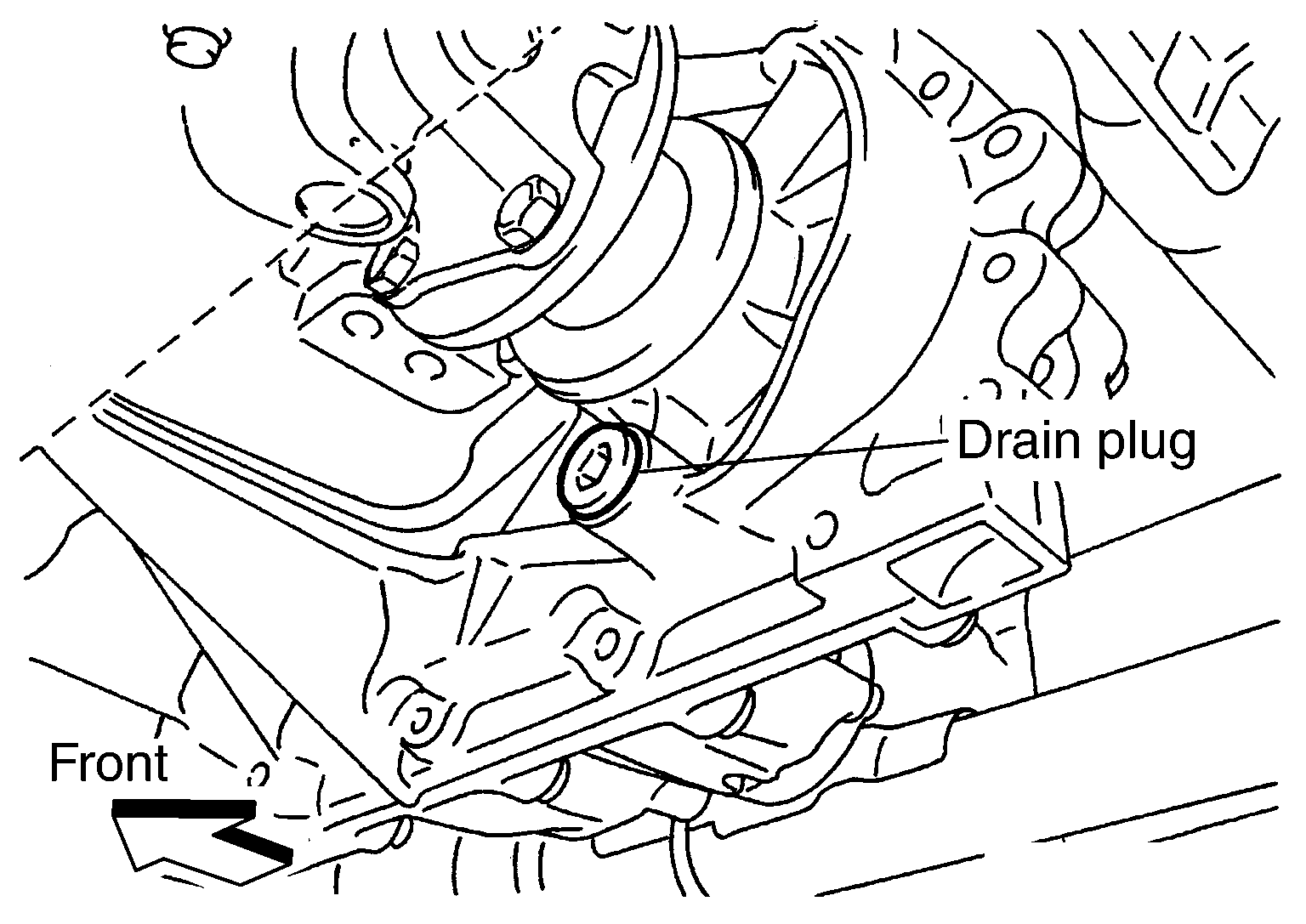

    Fig 1: Identifying Drain Plug
    G04133918Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Do not reuse the gasket.
