Rear Case

  1. Remove the rear case bolts.

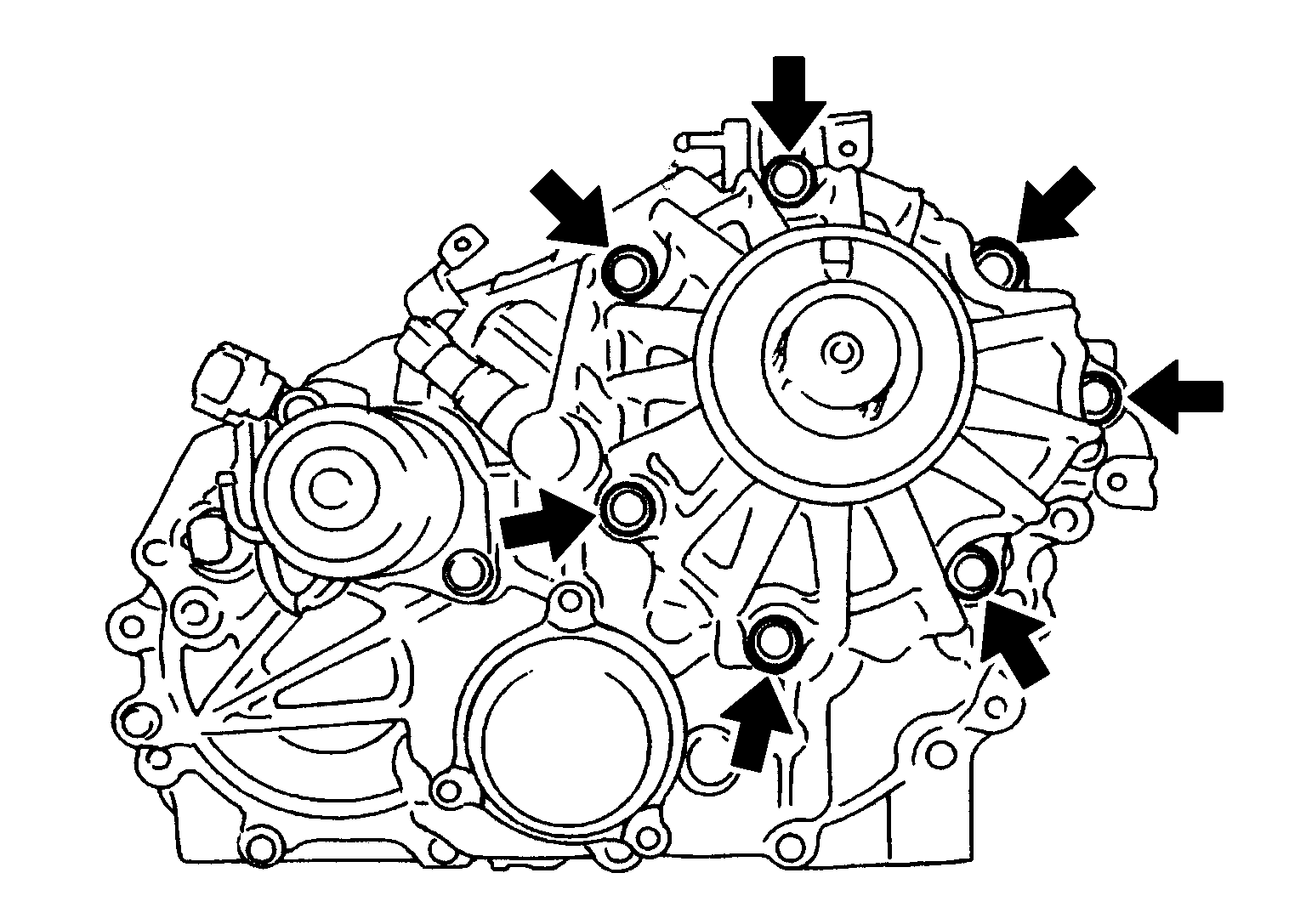

    Fig 1: Identifying Rear Case Bolts
    G04134104Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove the rear case from the center case.

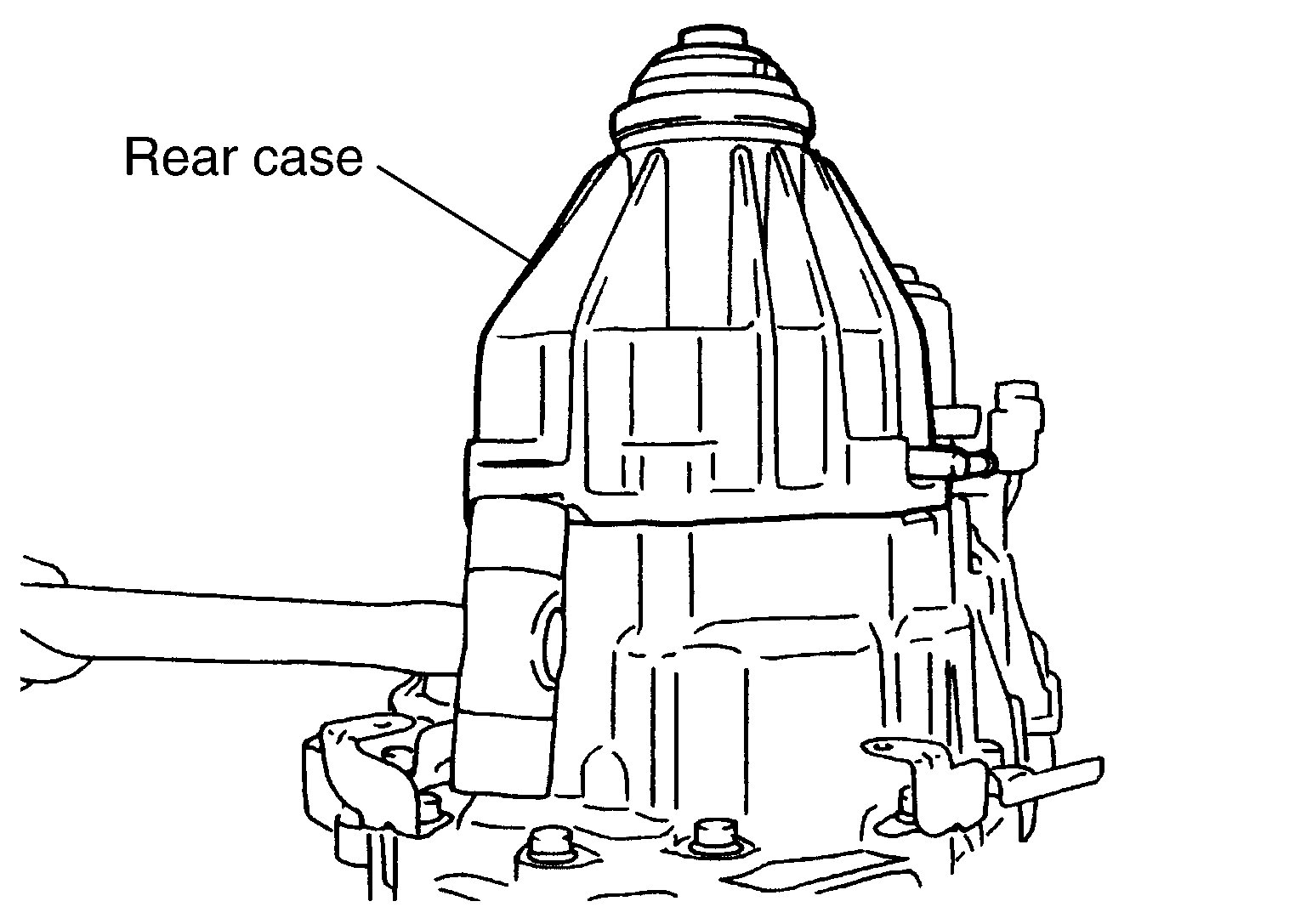

    Fig 2: Identifying Rear Case From Center Case
    G04134105Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the dust cover using suitable tool.

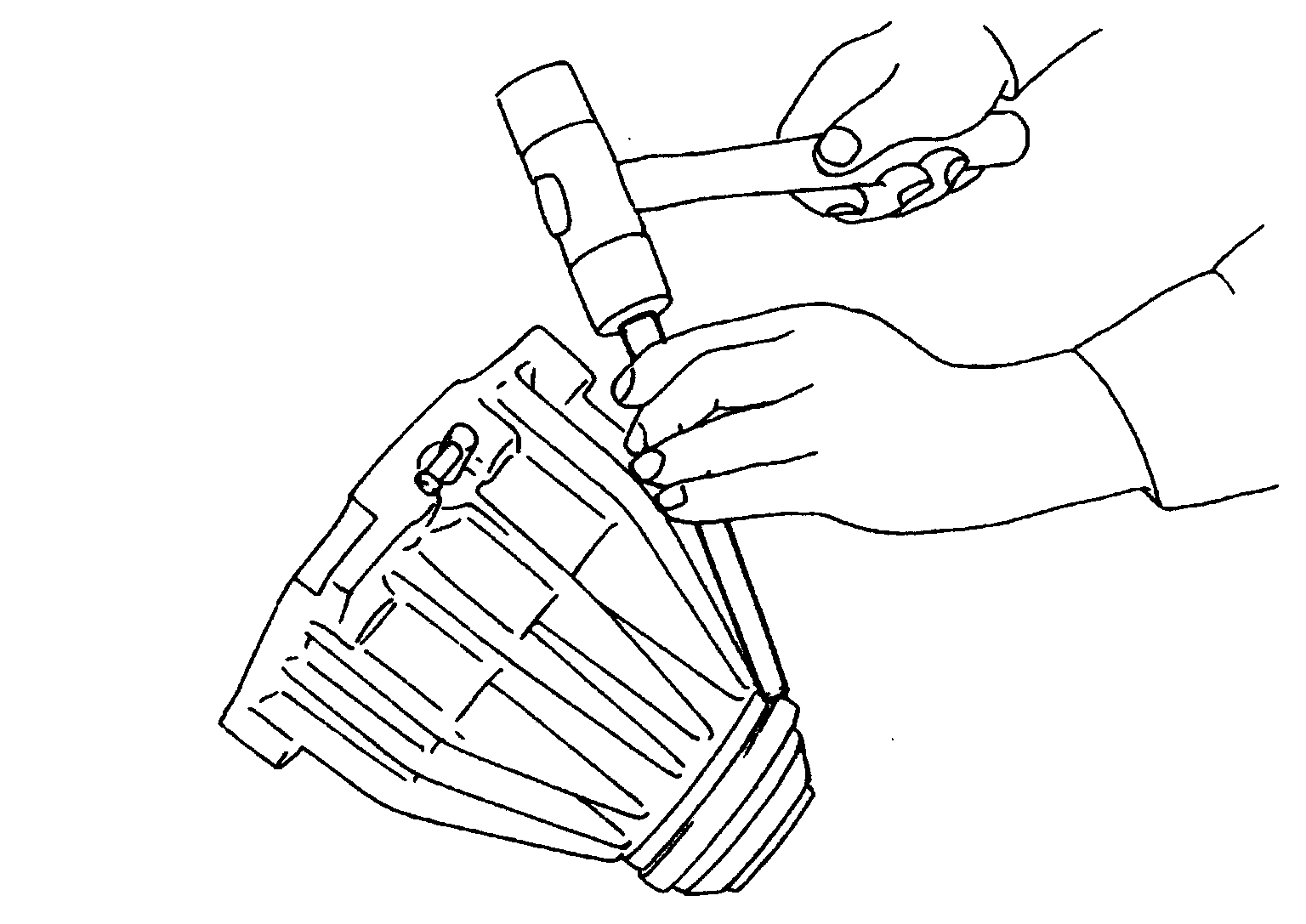

    Fig 3: Removing Dust Cover Using Suitable Tool
    G04134106Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove the rear oil seal using suitable tool.
    CAUTION: Do not damage rear case.
  5. Remove the breather tube.

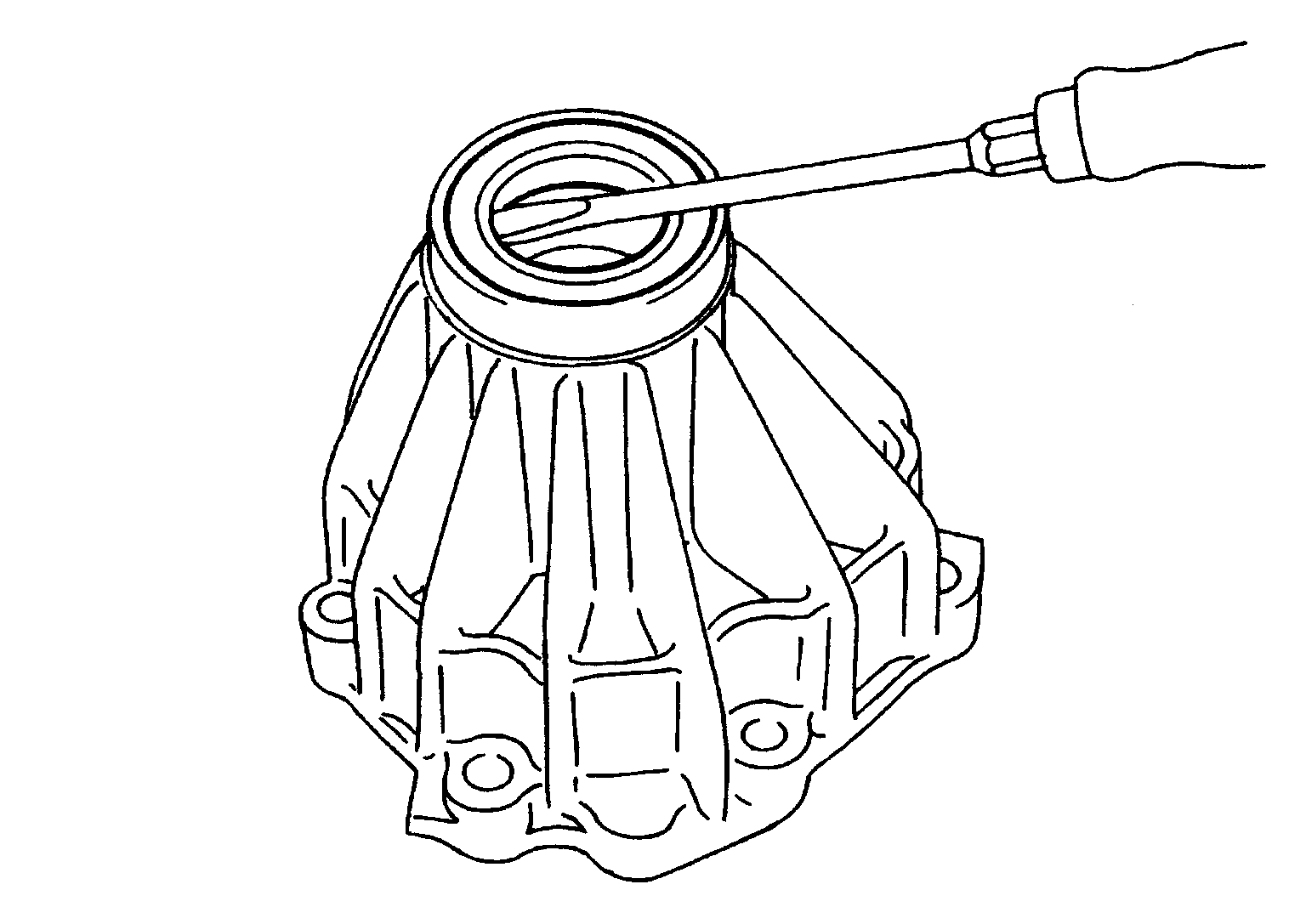

    Fig 4: Identifying Rear Oil Seal Using Suitable Tool
    G04134107Courtesy of NISSAN MOTOR CO., U.S.A.
