Rear Case

Apply petroleum jelly to the circumference of the new rear oil seal. Install the new rear oil seal so that it is flush with the case tip face using Tool.
Tool number : ST30720000 (J-25405)

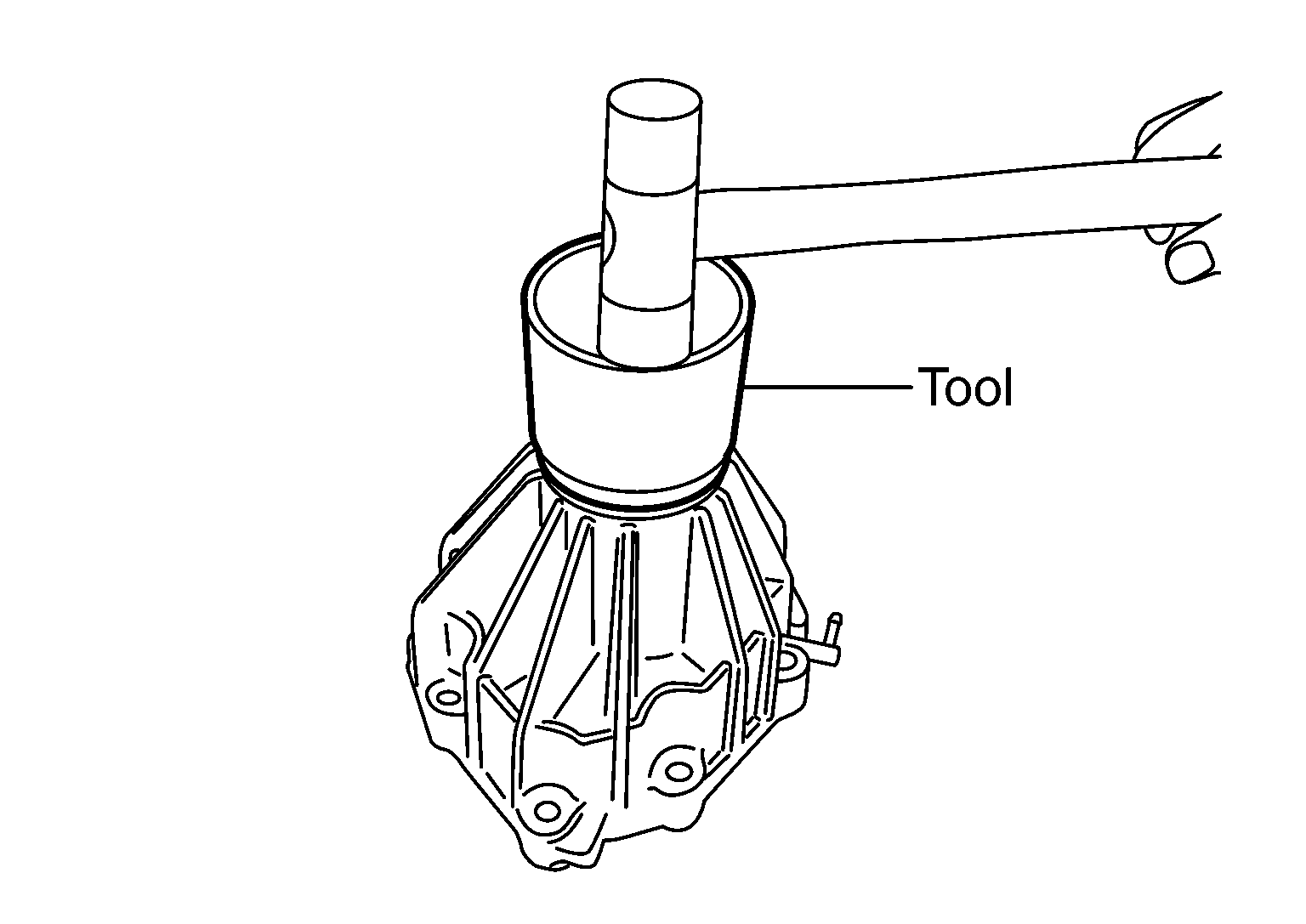

Fig 1: Installing Rear Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
- Do not reuse oil seal.
- Apply petroleum jelly to seal lip before installing.
Apply petroleum jelly to the circumference of the new dust cover. Position the new dust cover using the identification mark as shown.
CAUTION:
- Do not reuse dust cover.
- Position the identification mark at the position shown.

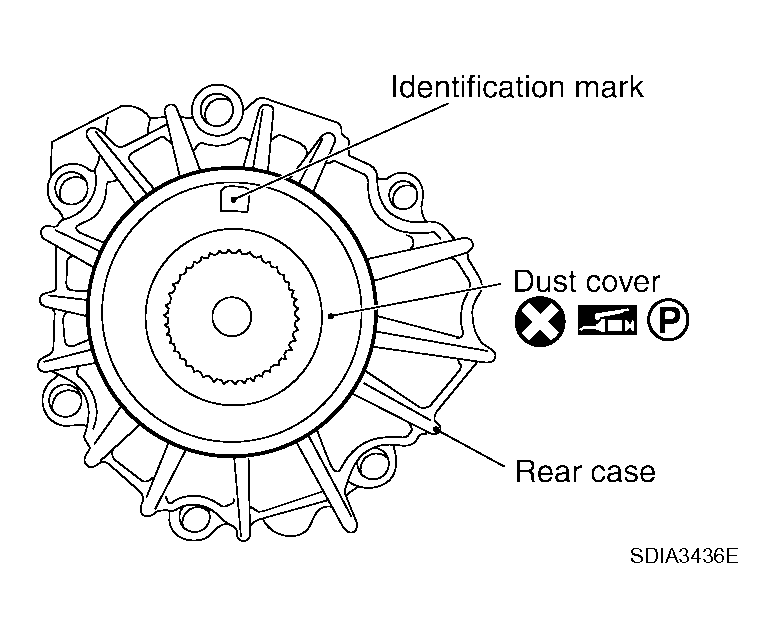

  Fig 2: Applying Petroleum Jelly To Circumference Of New Dust Cover
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install the dust cover using Tool.
Tool number : KV40105310 ( - )

Fig 3: Installing Dust Cover Using Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the breather tube into the rear case.
Remove all the sealant from the rear case to center case mating surfaces.
CAUTION: Remove all foreign materials such as water, oil, and grease from center case and rear case mating surfaces.
Apply liquid gasket to the entire rear case mating surface of the center case.
- Use Genuine Anaerobic Liquid Gasket or equivalent. Refer to " RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".
CAUTION: Do not to allow Liquid Gasket to enter stem bleeder hole.

For GI, go to GENERAL INFORMATION .

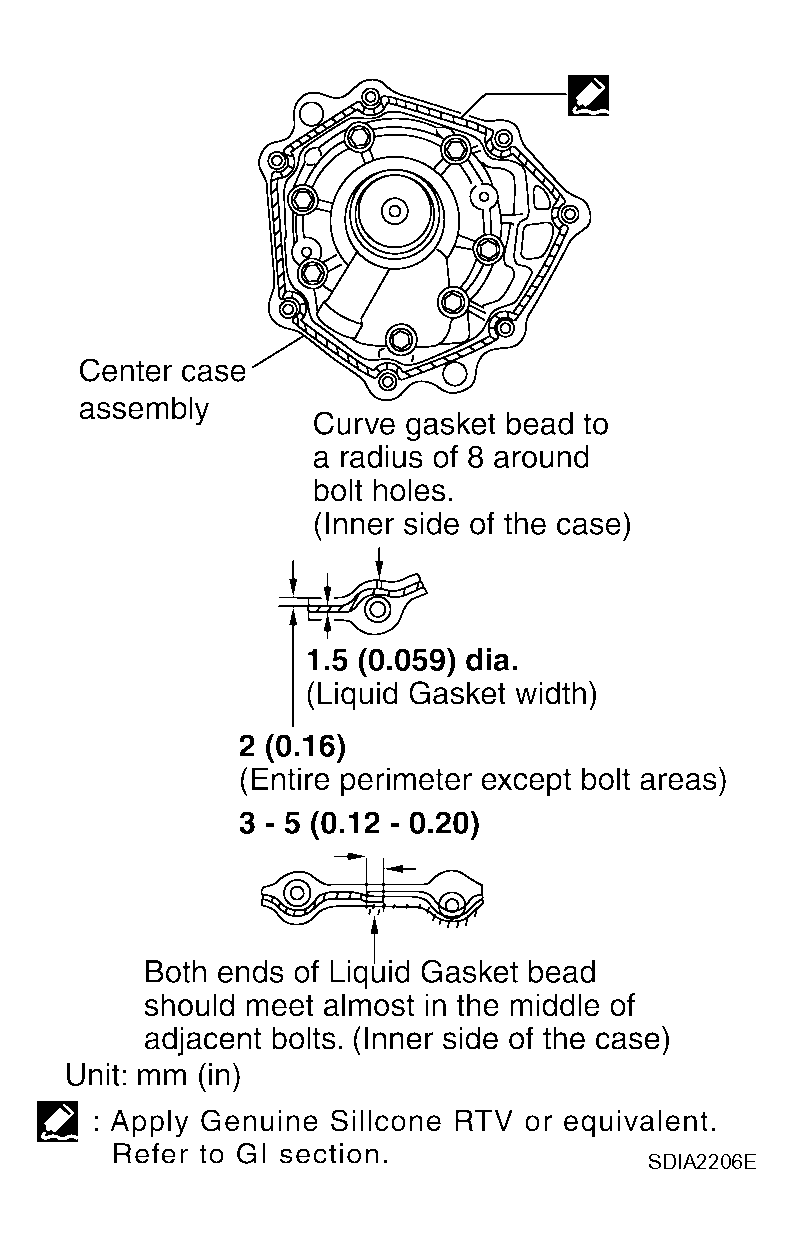

Fig 4: Applying Liquid Gasket To Entire Rear Case Mating Surface Of Center Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the rear case to the center case. Tighten the bolts to the specified torque. Refer to "COMPONENTS ".

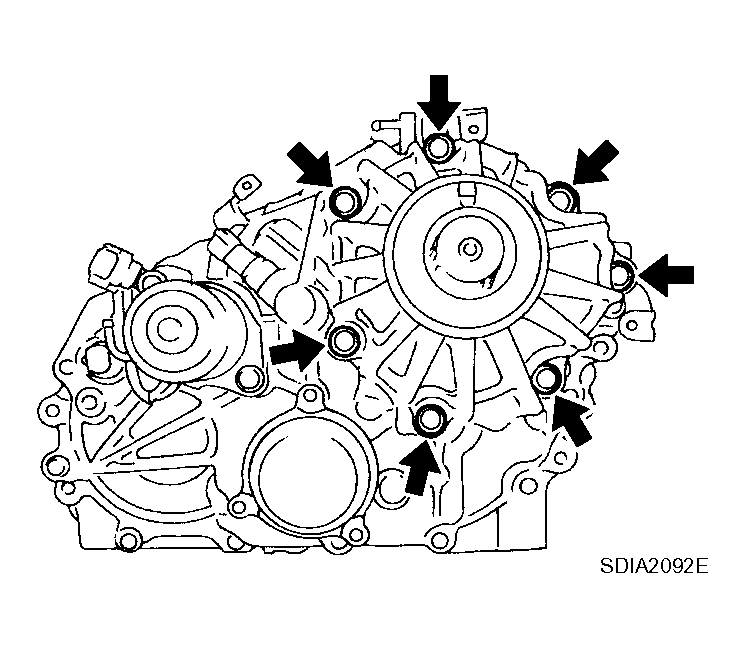

Fig 5: Identifying Installation Rear Case Bolts To Center Case
Courtesy of NISSAN MOTOR CO., U.S.A.
