Infiniti
>>
2006
>>
QX56 AWD
>>
Repair and Diagnosis
>>
Transmission
>>
Transfer Case
>>
All-Mode 4WD System
>>
Power Transfer
>>
Power Transfer Diagram
Power Transfer Diagram

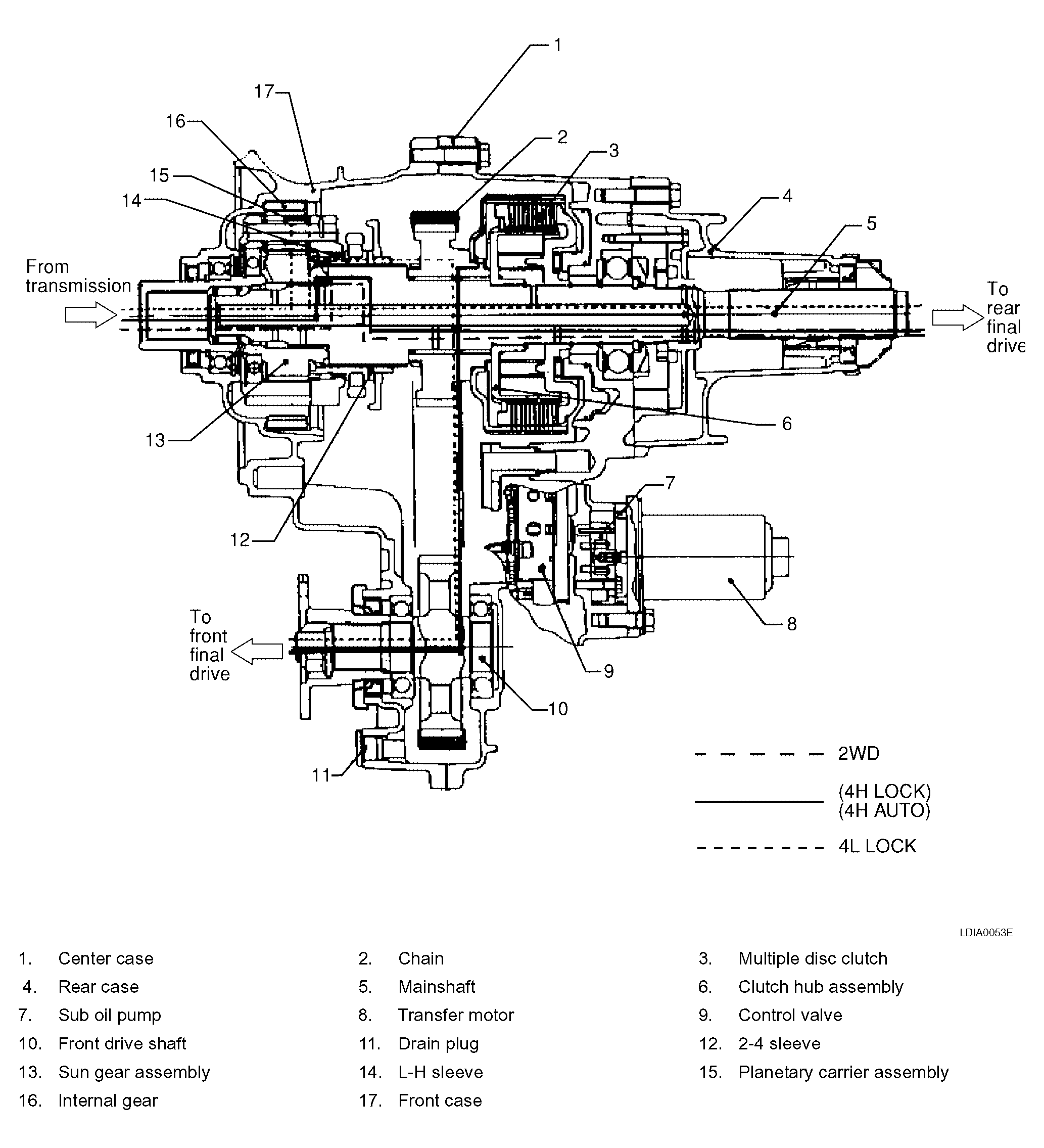

Fig 1: Power Transfer Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
