Diagnostic Procedure

  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws on the body. Refer to "GROUND INSPECTION ".
      Fig 1: Locating Body Ground Screws
      G04185036Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : GO TO 2.
    2. NG : Repair or replace ground connections.
  2. CHECK ASCD STEERING SWITCH CIRCUIT

    With CONSULT-II

    1. Turn ignition switch ON.
    2. Select " MAIN SW", "CANCEL SW", RESUME/ACC SW" and " SET SW" in " DATA MONITOR" mode with CONSULT-II.
    3. Check each item indication under the following conditions.
      ITEM INDICATIONS

      Switch Monitor item Condition Indication
      MAIN switch MAIN SW Pressed ON
      Released OFF
      CANCEL switch CANCEL SW Pressed ON
      Released OFF
      RESUME/ACCELERATE switch RESUME/ACC SW Pressed ON
      Released OFF
      SET/COAST switch SET SW Pressed ON
      Released OFF
      Fig 2: CONSULT II DATA MONITOR Screen
      G04133104Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 99 and ground with pressing each button.
      ECM TERMINAL 99 AND GROUND VOLTAGE

      Switch Condition Voltage [V]
      MAIN switch Pressed Approx. 0
      Released Approx. 4
      CANCEL switch Pressed Approx. 1
      Released Approx. 4
      RESUME/ACCELERATE switch Pressed Approx. 3
      Released Approx. 4
      SET/COAST switch Pressed Approx. 2
      Released Approx. 4
      Fig 3: Identifying Voltage Between ECM Terminal 99 And Ground
      G04133105Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : GO TO  8.
    2. NG : GO TO 3.
  3. CHECK ASCD STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect combination switch harness connector M102.
    3. Disconnect ECM harness connector.
    4. Check harness continuity between combination switch terminal 15 and ECM terminal 67.

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    5. Also check harness for short to ground and short to power.

    OK or NG

    1. OK : GO TO  5.
    2. NG : GO TO 4.

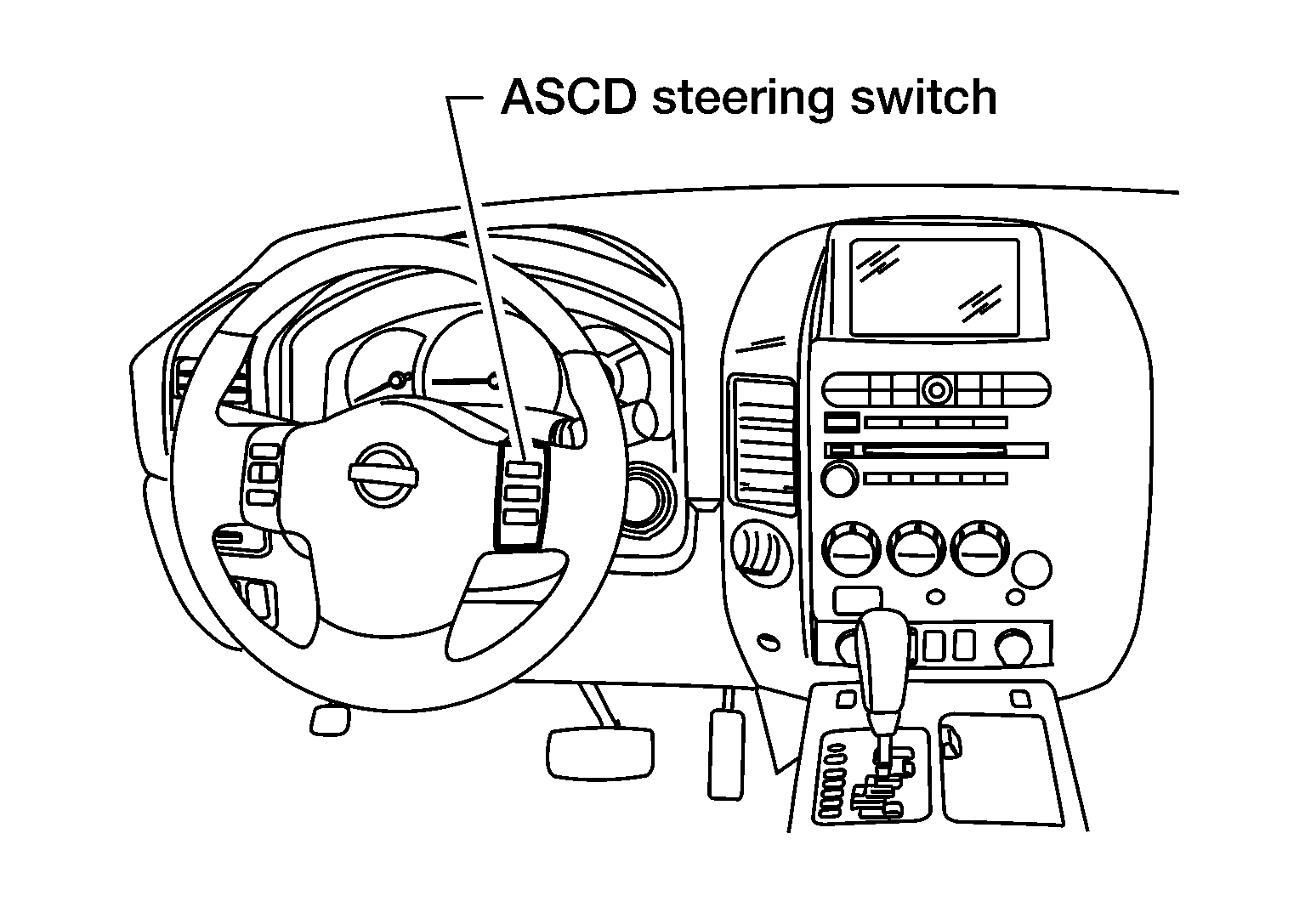

      Fig 4: Identifying ASCD Steering Switch
      G04133106Courtesy of NISSAN MOTOR CO., U.S.A.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M31, E152
    • Harness connectors E5, F14
    • Combination switch (spiral cable)
    • Harness for open and short between ECM and combination switch
      1. : Repair open circuit or short to ground or short to power in harness or connectors.
  5. CHECK ASCD STEERING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between ECM terminal 99 and combination switch terminal 14. Refer to WIRING DIAGRAM .

      Continuity should exist.

    2. Also check harness for short to ground and short to power.

    OK or NG

    1. OK : GO TO  7.
    2. NG : GO TO 6.
  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors M31, E152
    • Combination switch (spiral cable)
    • Harness for open and short between ECM and combination switch
      1. : Repair open circuit or short to ground or short to power in harness or connectors.
  7. CHECK ASCD STEERING SWITCH

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK : GO TO 8.
    2. NG : Replace ASCD steering switch. Refer to "STEERING WHEEL AUDIO CONTROL SWITCHES ".
  8. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    1. : INSPECTION END
