DTC P0181 FTT Sensor: Wiring Diagram

For PG, go to SYSTEM WIRING DIAGRAMS .

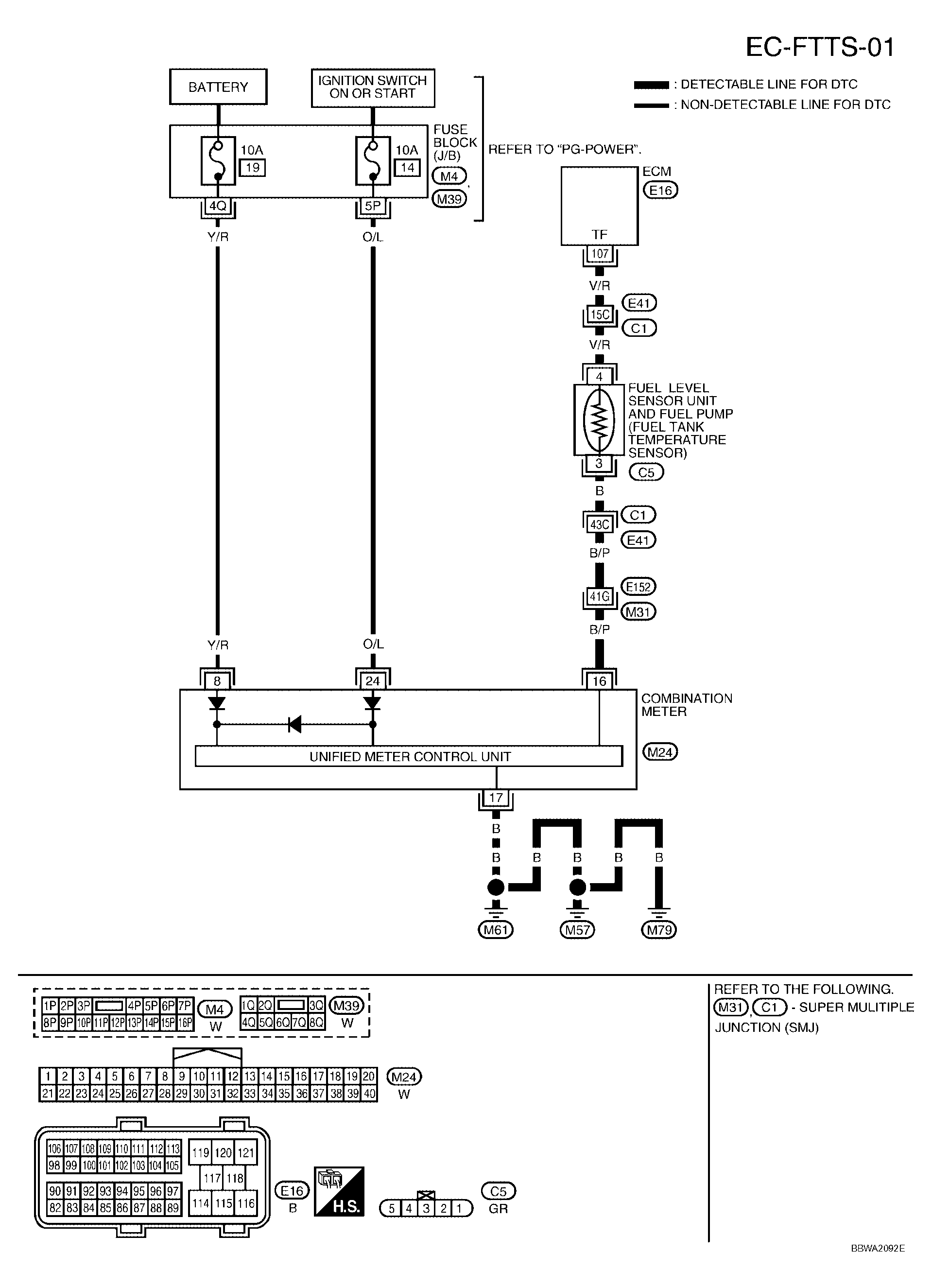

Fig 1: EC-FTTS-01 - Wiring Diagram
G04132859Courtesy of NISSAN MOTOR CO., U.S.A.
