Oil Pump: Assembly

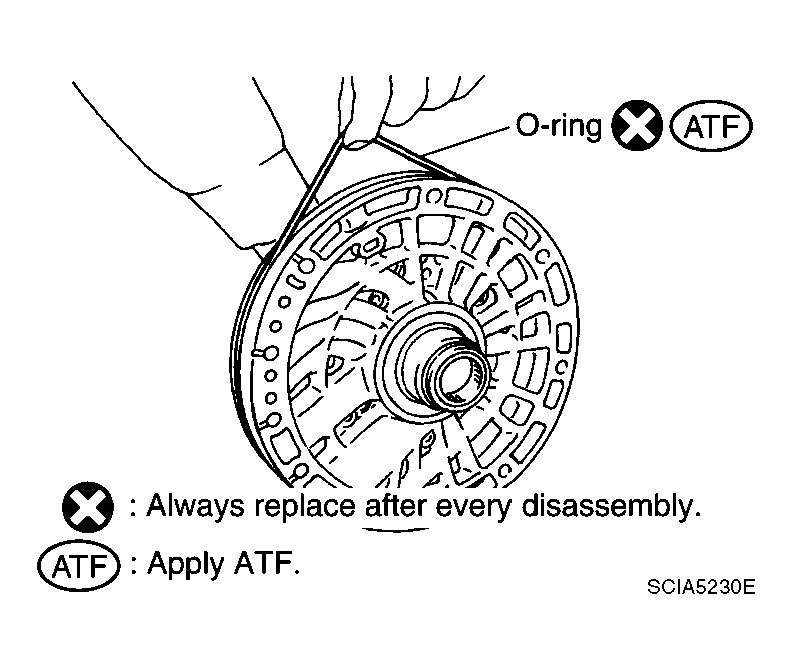

Install O-ring to oil pump cover.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

  Fig 1: Identifying O-Ring
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring to oil pump housing.
CAUTION:
- Do not reuse O-ring.
- Apply ATF to O-ring.

  Fig 2: Identifying O-Ring
  Courtesy of NISSAN MOTOR CO., U.S.A.
Using the drift, install oil pump housing oil seal to the oil pump housing until it is flush.
CAUTION:
- Do not reuse oil seal.
- Apply ATF to oil seal.

  Fig 3: Identifying Oil Pump Housing Oil Seal
  Courtesy of NISSAN MOTOR CO., U.S.A.

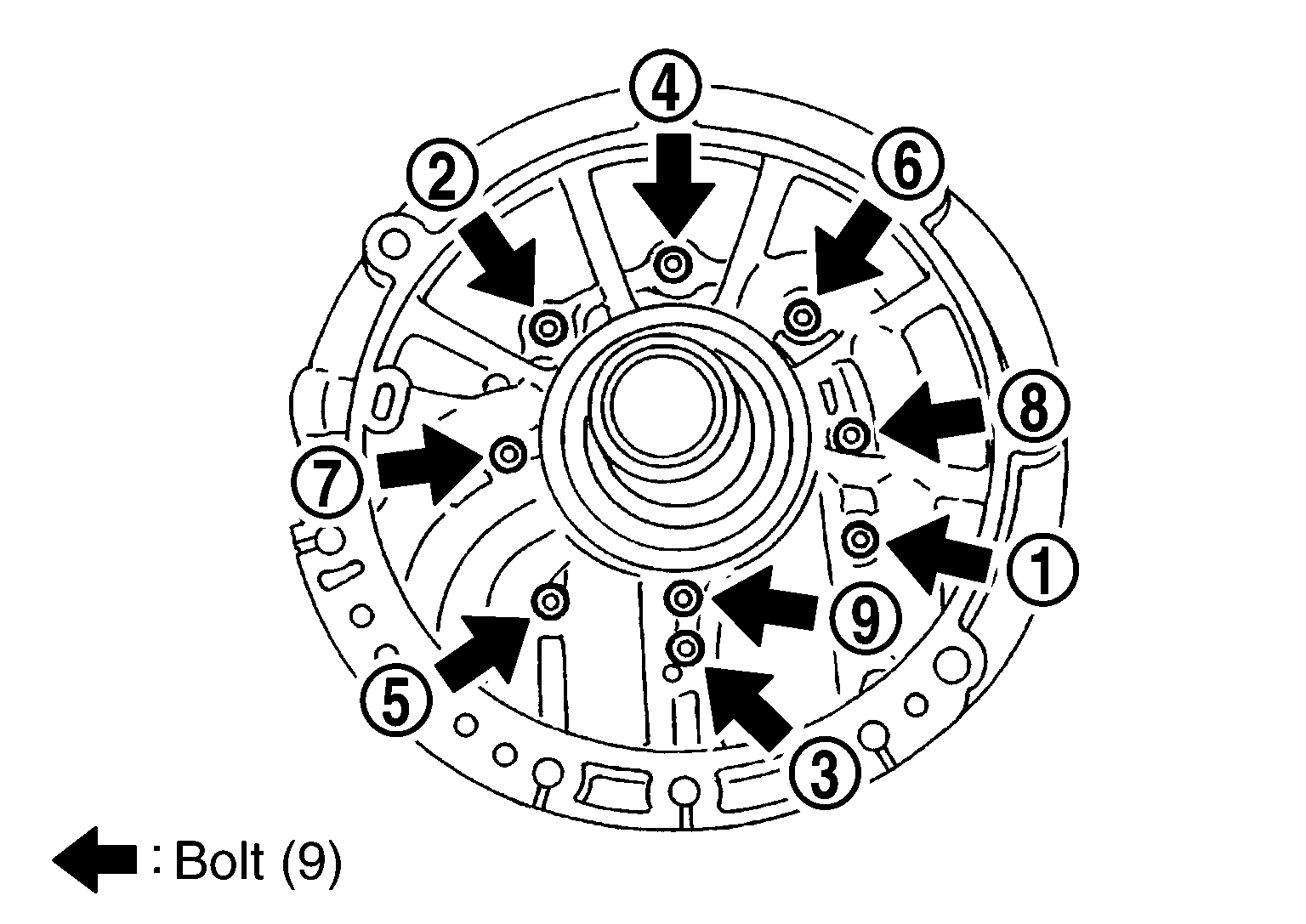

Install oil pump housing to oil pump cover.
Tighten bolts to the specified torque in numerical order shown in the figure after temporarily tightening them. Refer to "COMPONENTS ".

Fig 4: Identifying Oil Pump Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
