Revolution Sensor: Removal

  1. Disconnect the battery cable from the negative terminal.
  2. Drain ATF through drain plug.
  3. Remove exhaust front tube and center muffler with power tool. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
  5. Remove control rod. Refer to "CONTROL ROD REMOVAL AND INSTALLATION ".
  6. Remove oil pan and oil pan gasket.
    Fig 1: Identifying Oil Pan Bolts
    G04075672Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Check foreign materials in oil pan to help determine causes of malfunction. If the ATF is very dark, smells burned, or contains foreign particles, the frictional material (clutches, band) may need replacement. A tacky film that will not wipe clean indicates varnish build up. Varnish can cause valves, servo, and clutches to stick and can inhibit pump pressure.
    • If frictional material is detected, perform A/T fluid cooler cleaning. Refer to " A/T FLUID COOLER CLEANING  "  .
      Fig 2: Checking A/T Fluid For Foreign Materials
      G04081632Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Support A/T assembly with a transmission jack.
    CAUTION: When setting transmission jack, place wooden blocks to prevent from damaging control valve with TCM and transmission case.
  9. Remove rear member with power tool. Refer to "REMOVAL AND INSTALLATION ".

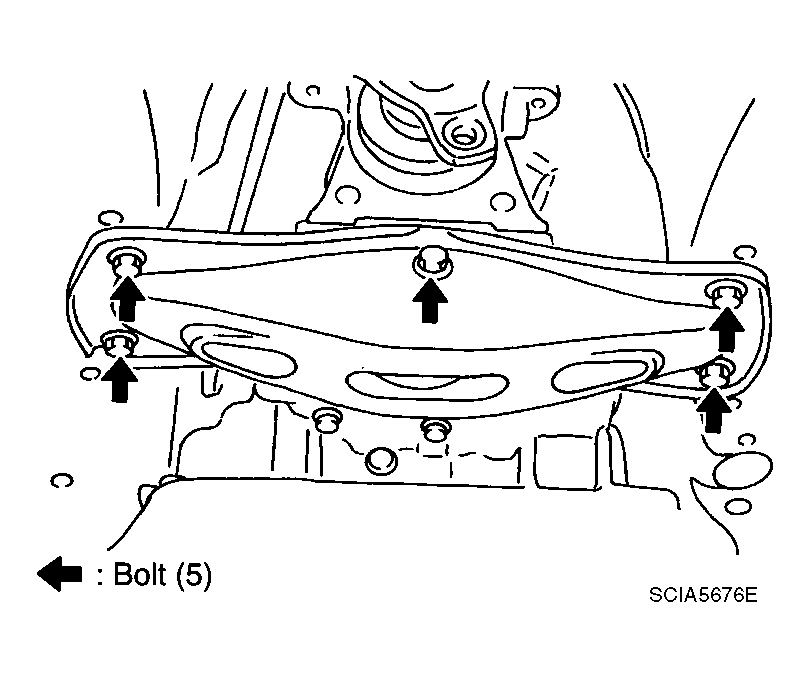

    Fig 3: Identifying Rear Member
    G04128203Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove rear engine mounting insulator. Refer to "REMOVAL AND INSTALLATION ".

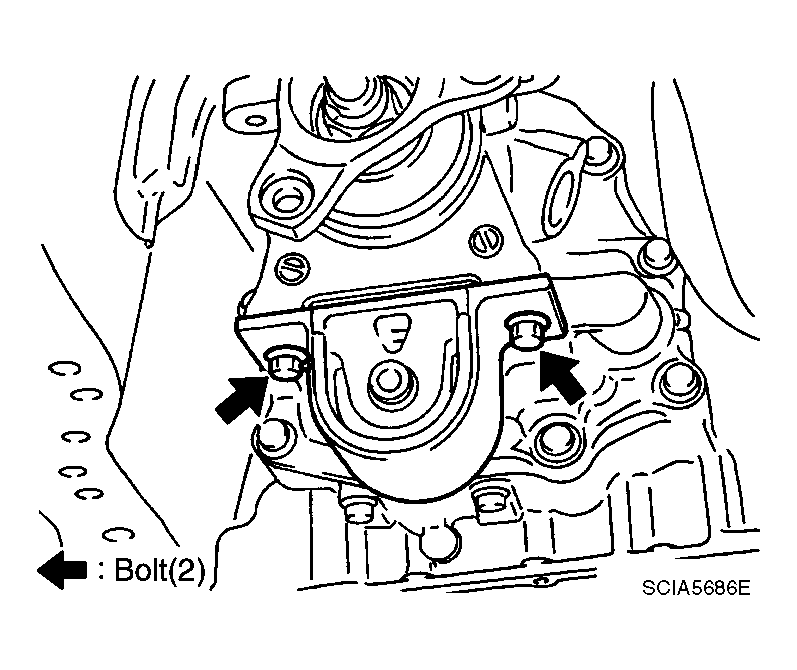

    Fig 4: Identifying Rear Engine Mounting Insulator
    G04128204Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove tightening bolts (1) for output shaft & companion flange complement and transmission case.

    : Bolt (10)

    • Self-searing bolts (2)

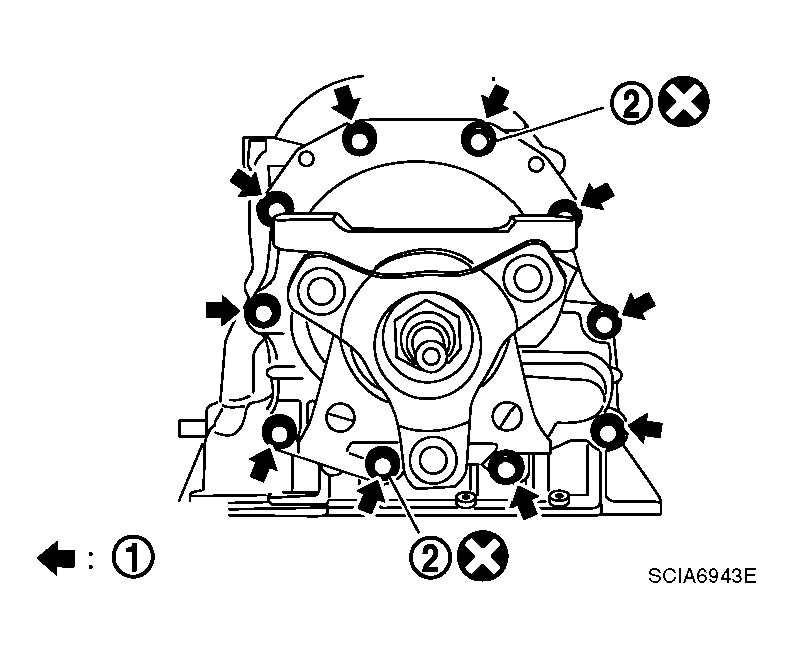

      Fig 5: Identifying Bolts
      G04128205Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Tap output shaft & companion flange complement with a soft hammer.

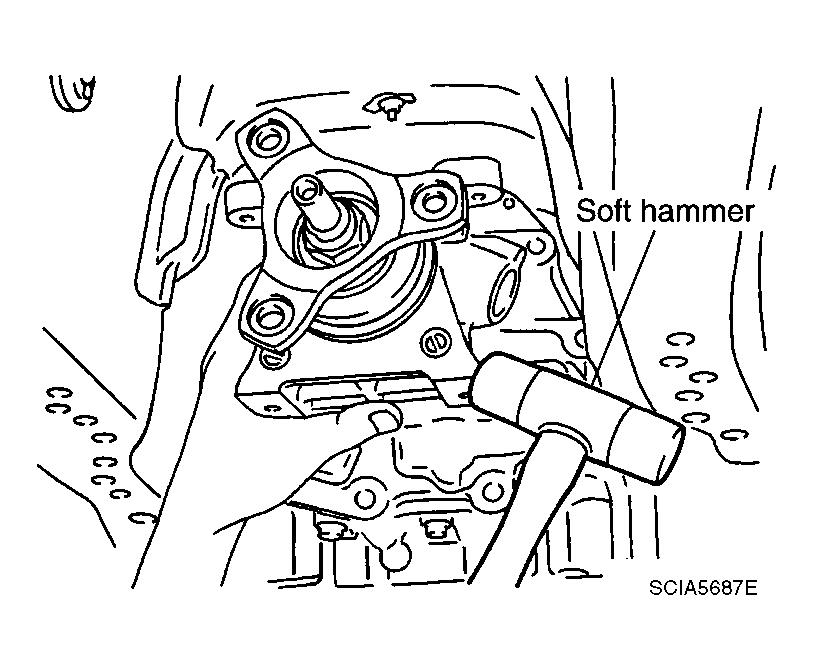

    Fig 6: Tapping Output Shaft & Companion Flange Complement With Soft Hammer
    G04128206Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove output shaft & companion flange complement from A/T assembly.

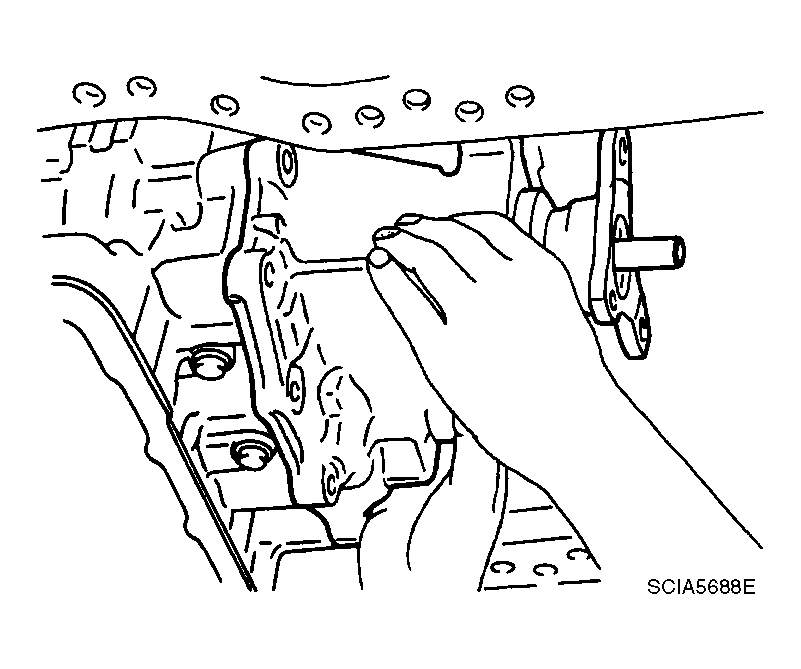

    Fig 7: Identifying Output Shaft & Companion Flange Complement
    G04128207Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Disconnect revolution sensor connector.
    CAUTION: Be careful not to damage connector

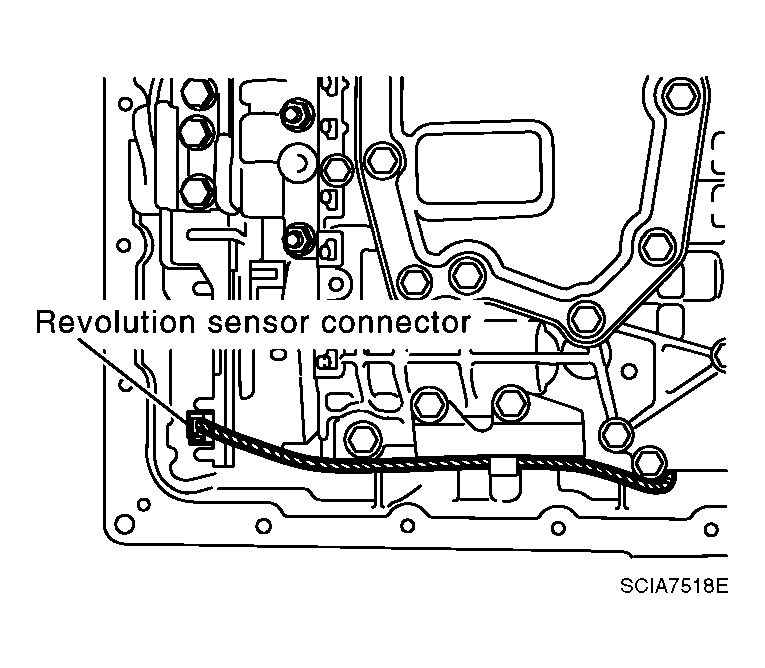

    Fig 8: Identifying Revolution Sensor Connector
    G04128208Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Straighten terminal clip to free revolution sensor harness.

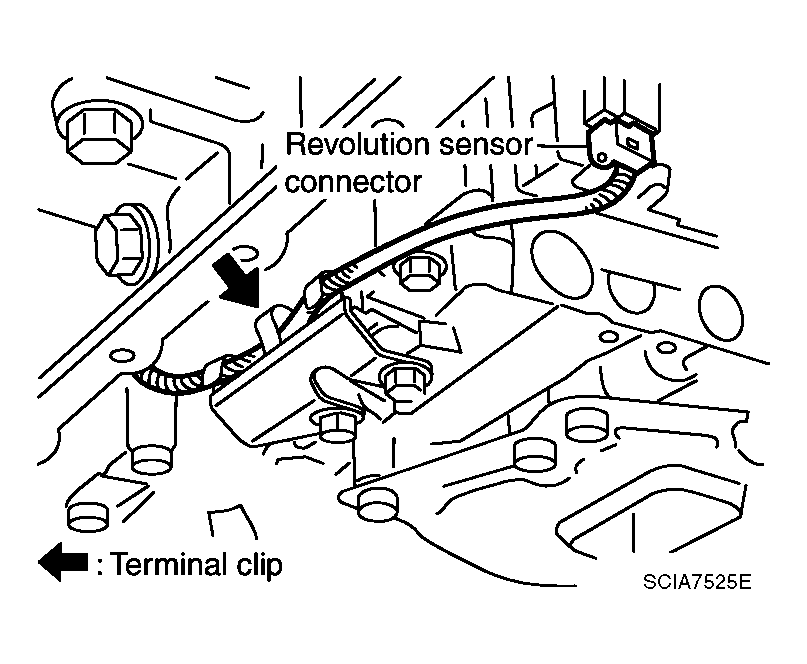

    Fig 9: Straightening Terminal Clip
    G04128209Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Remove revolution sensor from transmission case.
    CAUTION:
    • Do not subject it to impact by dropping or hitting it.
    • Do not disassemble.
    • Do not allow metal filings, etc. to get on the sensor's front edge magnetic area.
    • Do not place in an area affected by magnetism.

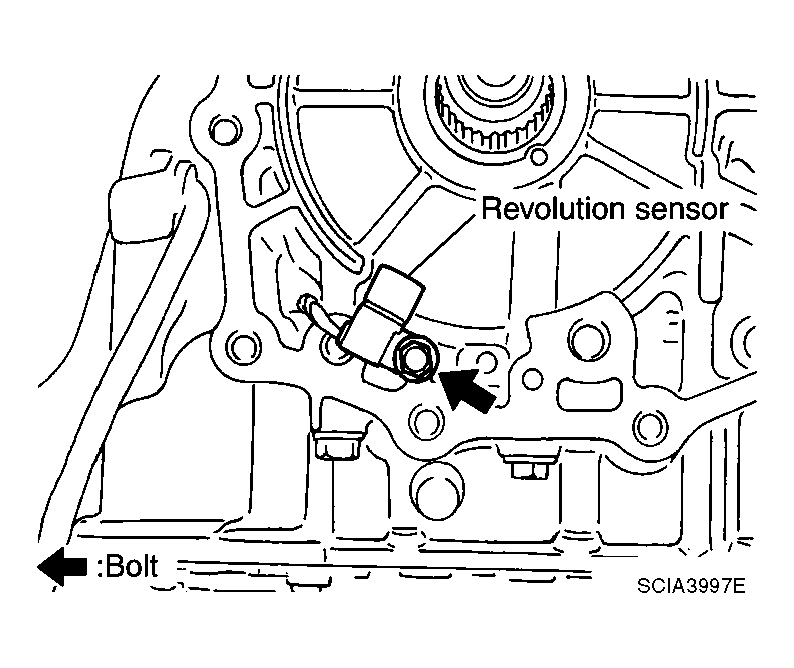

      Fig 10: Identifying Revolution Sensor From Transmission Case
      G04128210Courtesy of NISSAN MOTOR CO., U.S.A.
