Parking Components: Installation

CAUTION: After completing installation, check A/T fluid leakage, A/T fluid level and A/T position. Refer to "CHECKING A/T FLUID ", "CHECKING OF A/T POSITION ".
  1. Install return spring (1) to parking pawl (2).
    Fig 1: Identifying Return Spring To Parking Pawl
    G04128192Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install parking pawl (with return spring) (1) and pawl shaft (2) in output shaft & companion flange complement.

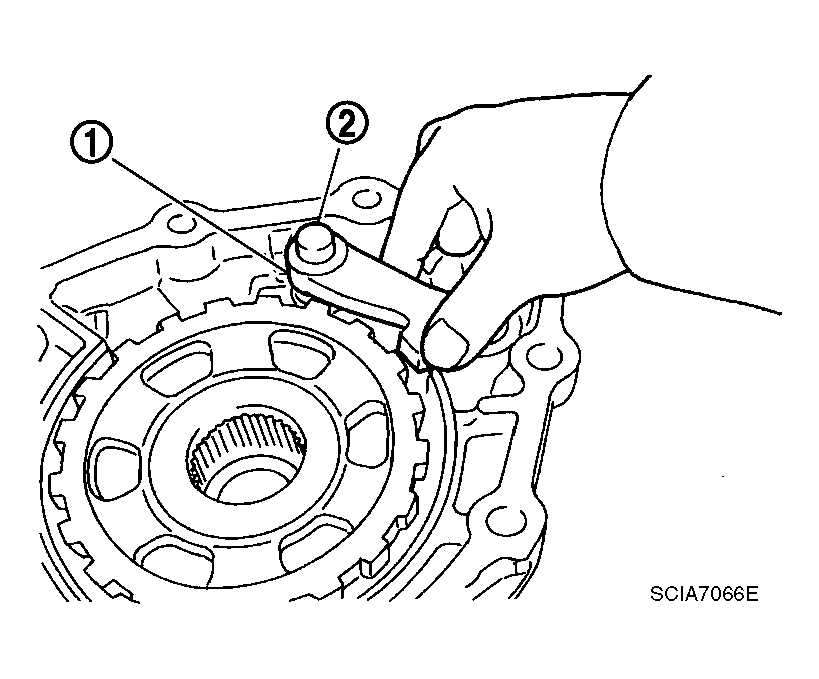

    Fig 2: Identifying Parking Pawl
    G04128193Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install parking actuator support (1) in output shaft & companion flange complement.

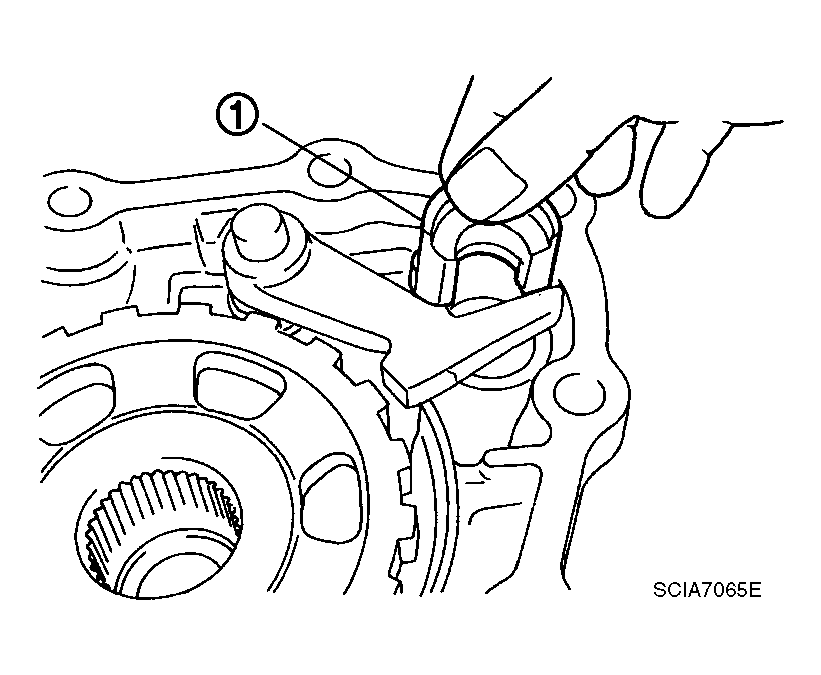

    Fig 3: Identifying Parking Actuator Support
    G04128194Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".) to output shaft & companion flange complement as shown in the figure.
    CAUTION: Completely remove all moisture, oil and old sealant, etc. from the transmission case and output shaft & companion flange complement mounting surfaces.

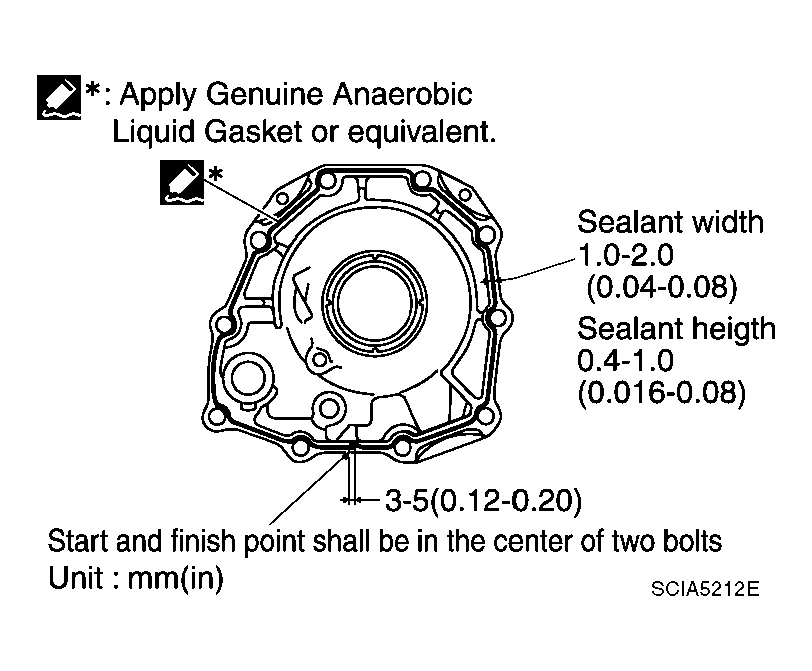

    Fig 4: Applying Sealant
    G04128195Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install output shaft & companion flange complement in A/T assembly.
    CAUTION: Insert the tip of parking rod between the parking actuator support when assembling the output shaft companion flange complement.
    Fig 5: Identifying Output Shaft & Companion Flange
    G04128196Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Tighten output shaft & companion flange complement mounting bolts (1) to specified torque.

    : Bolt (10)

    CAUTION: Do not reuse self-sealing bolts (2).

    Output shaft & companion flange complement mounting bolt:

    : 52 N.m (5.3 Kg-m, 38 ft-lb)

    Self-sealing bolt:

    : 61 N.m (6.2 Kg-m, 45 ft-lb)

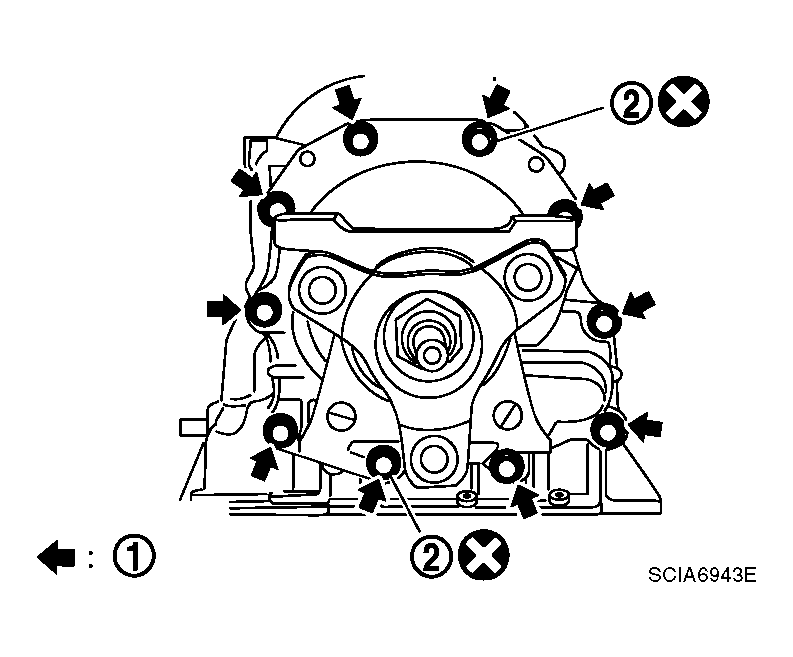

    Fig 6: Tightening Bolts
    G04128197Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install rear engine mounting insulator. Refer to "REMOVAL AND INSTALLATION ".

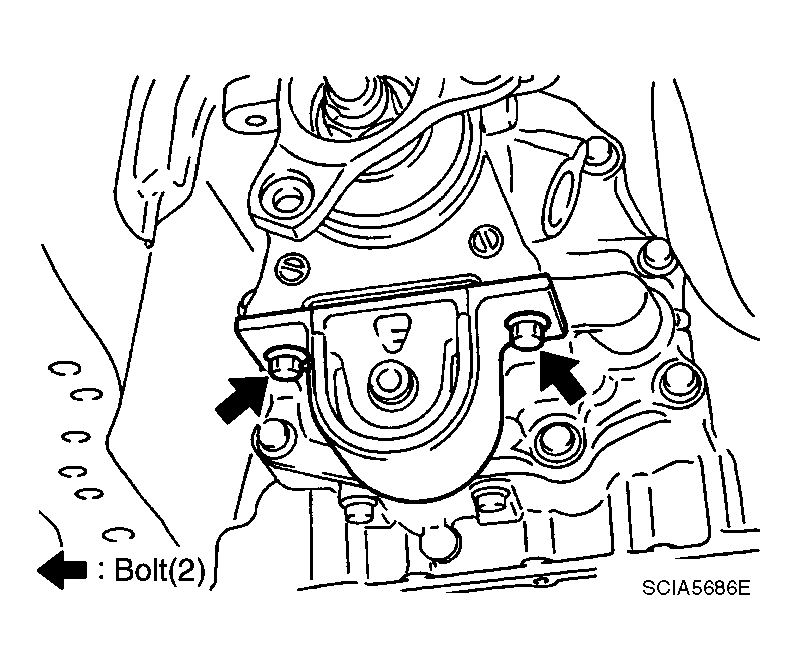

    Fig 7: Identifying Rear Engine Mounting Insulator
    G04128198Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install rear member. Refer to "REMOVAL AND INSTALLATION ".
  9. Install control rod. Refer to "CONTROL ROD REMOVAL AND INSTALLATION ".
  10. Install rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
  11. Install exhaust front tube and center muffler. Refer to "REMOVAL AND INSTALLATION ".
  12. Install drain plug in oil pan.
    CAUTION: Do not reuse drain plug gasket.

    : 34 N.m (3.5 kg-m, 25 ft-lb)

    Fig 8: Identifying Rear Propeller Shaft
    G04128199Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Pour ATF into A/T assembly. Refer to "CHANGING A/T FLUID ".
