Wheel Alignment Inspection: Toe-In

If toe-in is not within the specification, adjust with adjusting bolt in rear lower link.

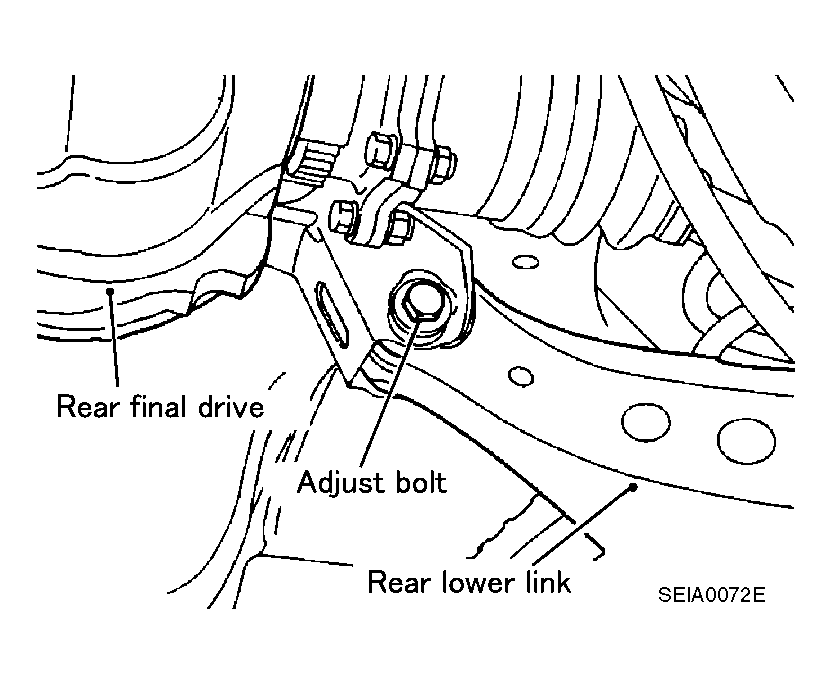

Fig 1: Identifying Toe-In Adjusting Bolt

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Be sure to adjust equally on RH and LH side with adjusting bolt.

If toe-in is not still within the specification, inspect and replace any damaged or worn rear suspension parts.
