Front Vertical G Sensor

  1. Remove the lower dash side finisher. Refer to "DASH SIDE FINISHER ".
  2. Remove the SMJ harness connector bolt.
  3. Remove the IVMS control unit. Refer to "REMOVAL ".
  4. Disconnect the front vertical G sensor connector.
  5. Remove the front vertical G sensor bolts.
  6. Remove the front vertical G sensor (1).

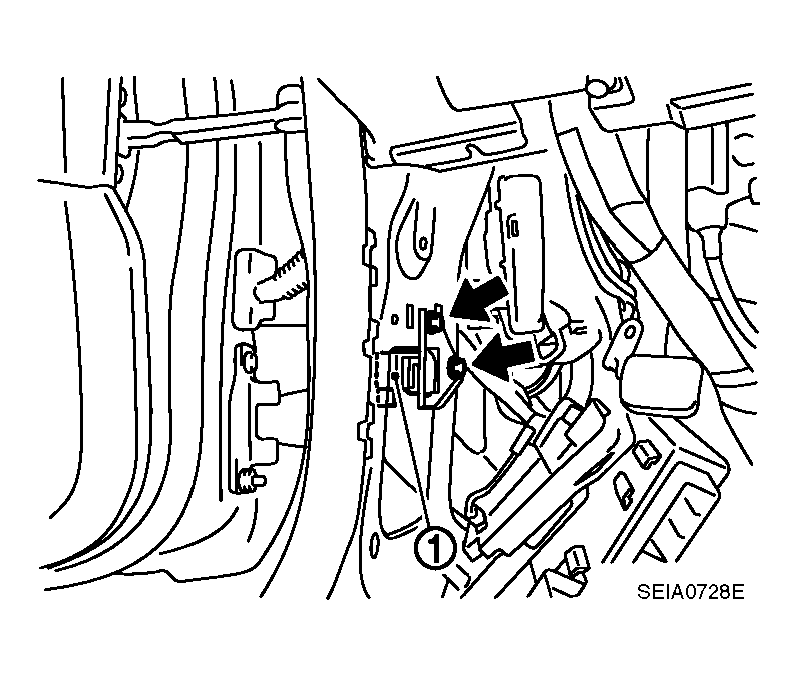

    Fig 1: Locating Front Vertical G Sensor Bolts
    G04128847Courtesy of NISSAN MOTOR CO., U.S.A.
