Specifications Between Active Damper Suspension Control Unit Terminals
Data are reference value and are measured between each terminal and ground.

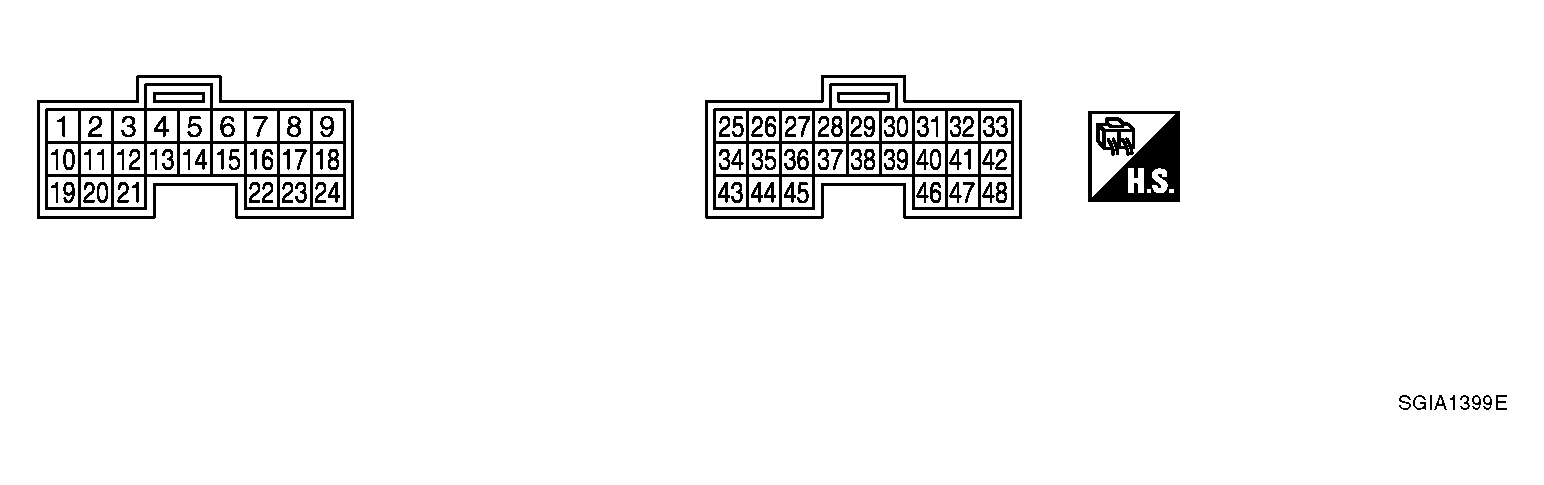

TERMINAL SPECIFICATION TABLE
| Terminal | Wire color | Item | Condition | Data (Approx.) |
|---|---|---|---|---|
| 8 | B | Ground | Always | 0 V |
| 10 | GY | Power supply | Ignition switch: | ON Battery voltage |
| Ignition switch: OFF | 0 V | |||

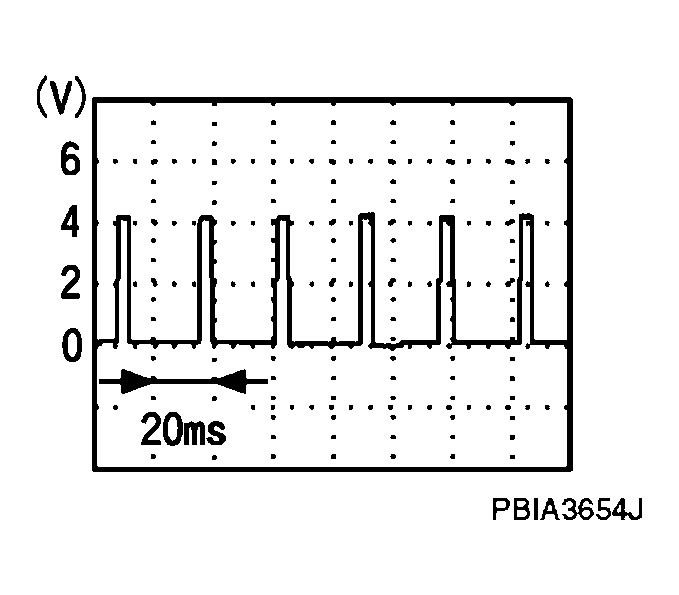

| 12 | W/G | Engine speed | Engine speed: At idle (Warm-up condition) | |

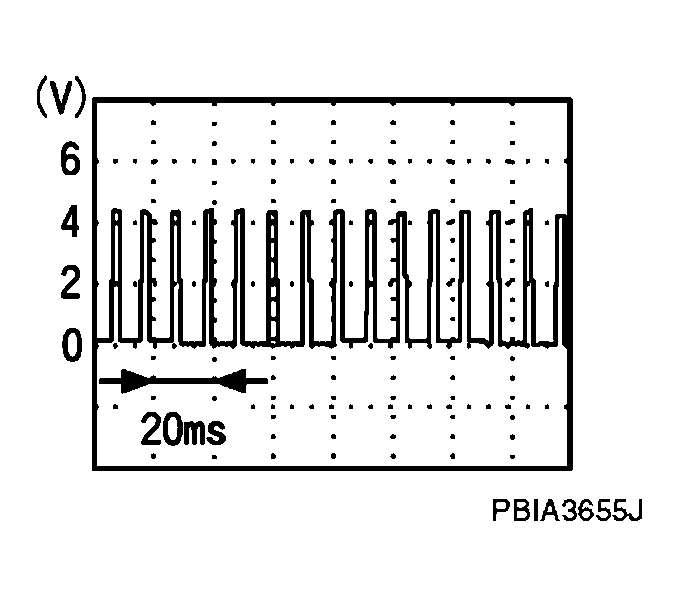

| Engine speed: Approx. 2,000 rpm (Warm-up condition) | ||||
| 14 | BR/Y | Data link connector (RX) | - | - |
| 15 | P | Data link connector (TX) | - | - |
| 19 | Y/G | Power supply (Memory back-up) | Ignition switch: ON | Battery voltage |
| Ignition switch: OFF | ||||
| 21 | OR/L | Power steering solenoid valve | Vehicle speed: 0 km/h (0 MPH) (Engine is running) |
4.4 - 6.6 V |
| Vehicle speed: 100 km/h (62 MPH) | 2.4 - 3.6 V | |||

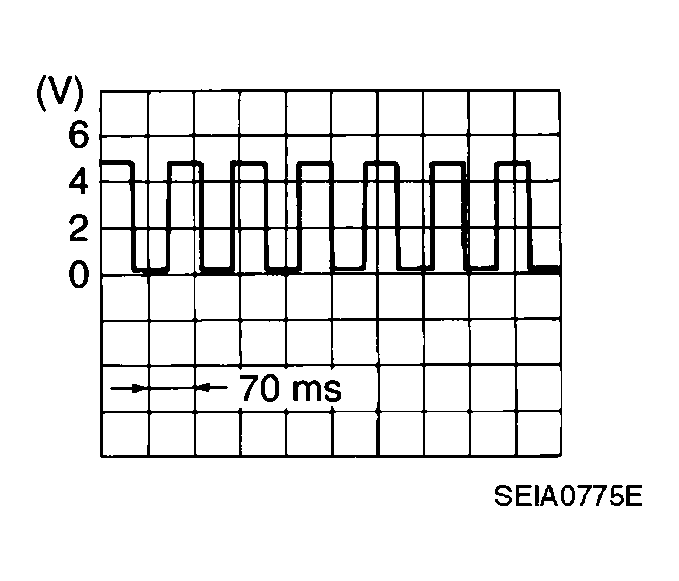

| 22 | PU/W | Vehicle speed | Vehicle speed: 40 km/h (25 MPH)
CAUTION:
Check air pressure of tire under standard condition.
|
|
| 23 | B | Ground | Always | 0 V |
| 24 | B | Ground | Always | 0 V |
| 31 | GY | Power supply | Ignition switch: ON | Battery voltage |
| Ignition switch: OFF | 0 V | |||
| 32 | GY | Power supply | Ignition switch: ON | Battery voltage |
| Ignition switch: OFF | 0 V |
CAUTION:
When using circuit tester or oscilloscope to measure voltage for inspection, be sure not to extend forcibly any connector terminals.
