Removal and Installation: Removal

  1. Turn the ignition switch OFF and disconnect the battery cable from the negative terminal.
  2. Remove the trunk side finisher. Refer to "REMOVAL AND INSTALLATION ".
  3. Disconnect the RAS control unit connector.
  4. Remove the RAS control unit bolts.
  5. Remove the RAS control unit (1).

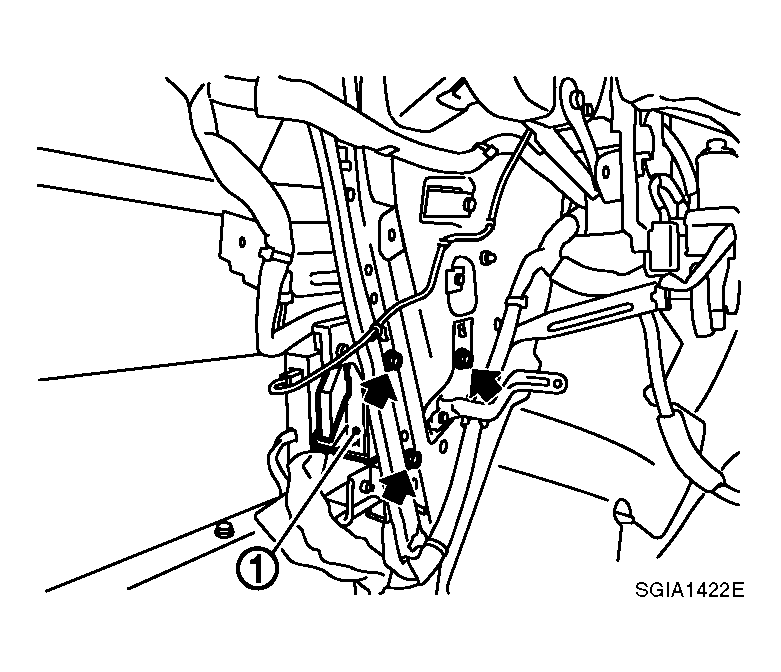

    Fig 1: Identifying RAS Control Unit
    G04129198Courtesy of NISSAN MOTOR CO., U.S.A.
