Removal and Installation: Notes

CAUTION:

Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat resistance, corrosion resistance, and shape.
Perform the operation with the exhaust system fully cooled down because the system will be hot just after engine stops.
Be careful not to cut your hand on the insulator edge.

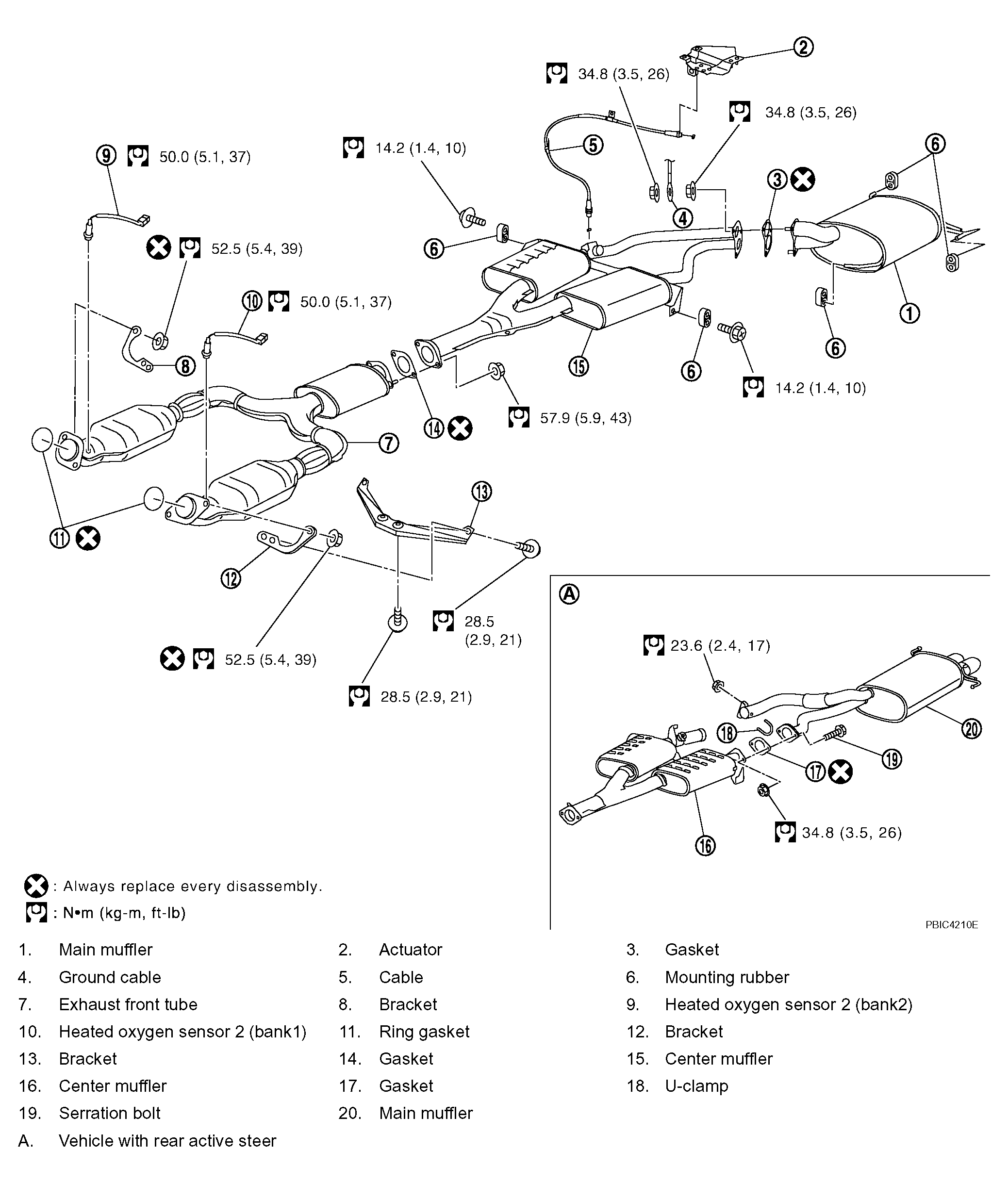

Fig 1: Exploded View Of Exhaust System With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
