Home >> Infiniti >> 2006 >> Q45 >> Repair and Diagnosis >> Engine Mechanical >> Exhaust System >> Dual Mode Muffler >> Removal and Installation >> Notes

Removal and Installation: Notes

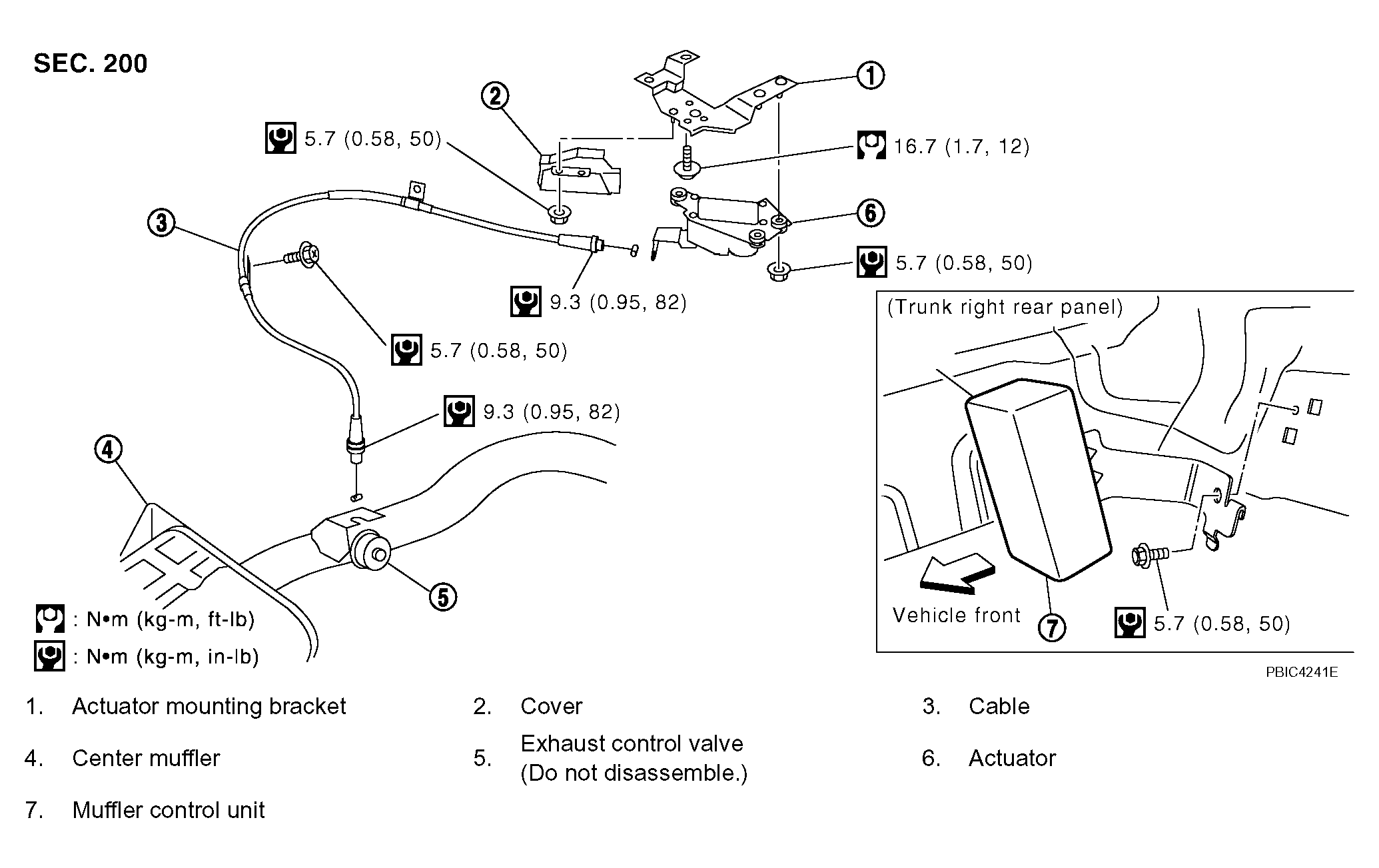

Fig 1: Dual Mode Muffler With Torque Specifications
G04127923Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Exhaust control valve is provided in center muffler and not permitted to disassemble.
