System Chart
System Chart

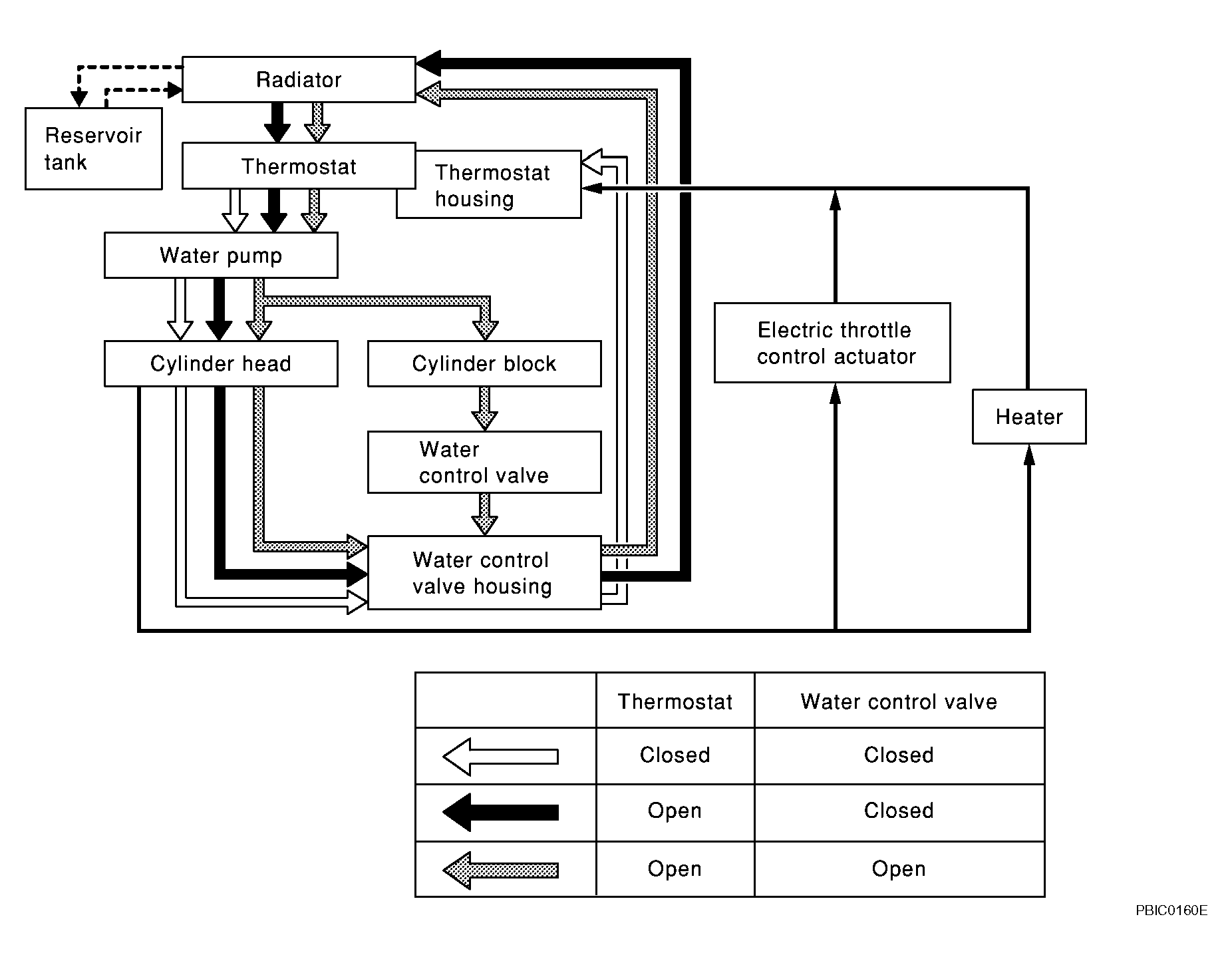

Fig 1: System Chart - Cooling System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
