Driver Information System
>>
Voice Activated Control System
>>
Schematic
>>
With NAVI
With NAVI

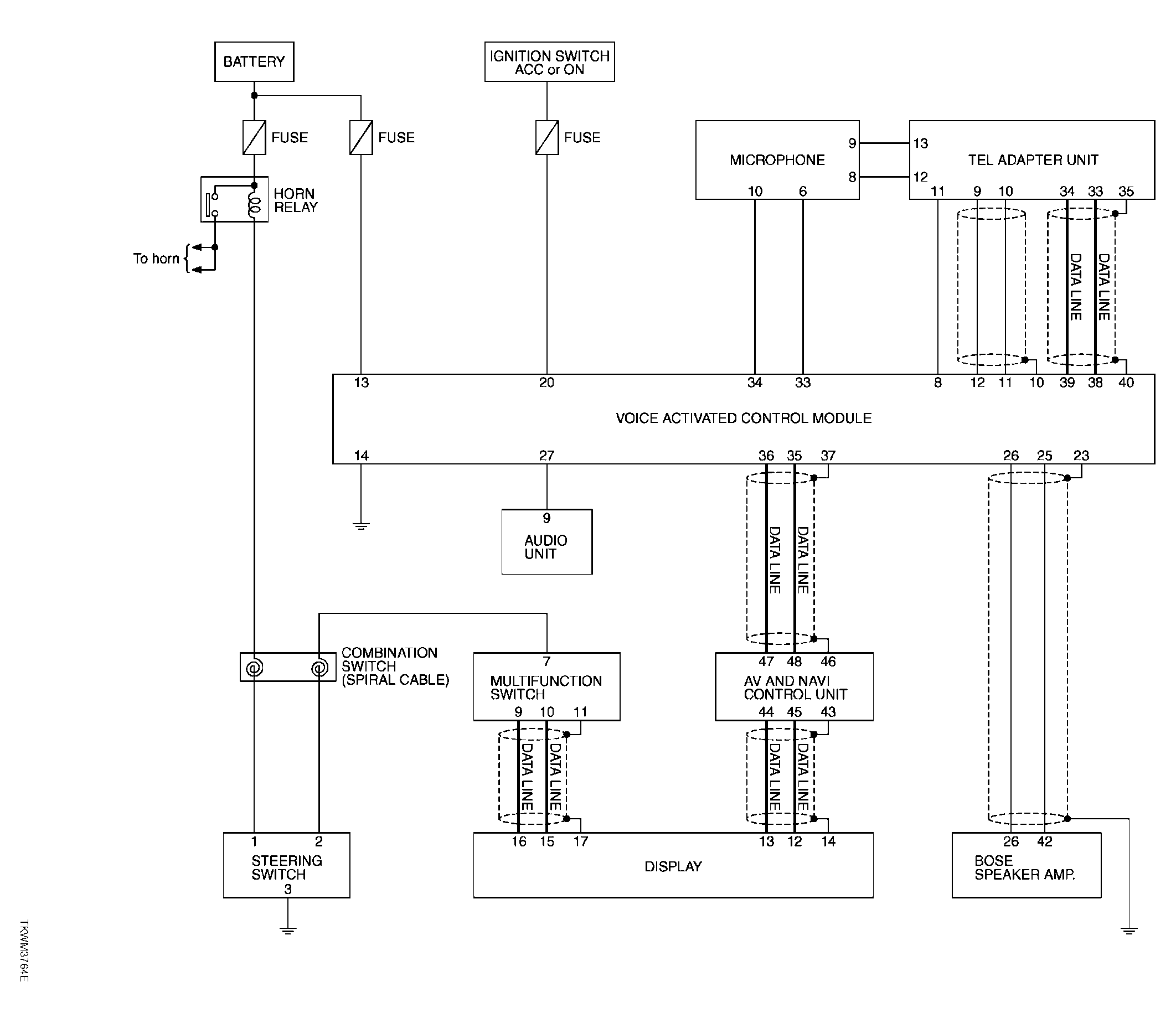

Fig 1: Voice Activated Control System Schematic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
