Removal and Installation of Display: Removal

  1. Remove the cluster lid C. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  2. Remove the screws (4), and remove the display.

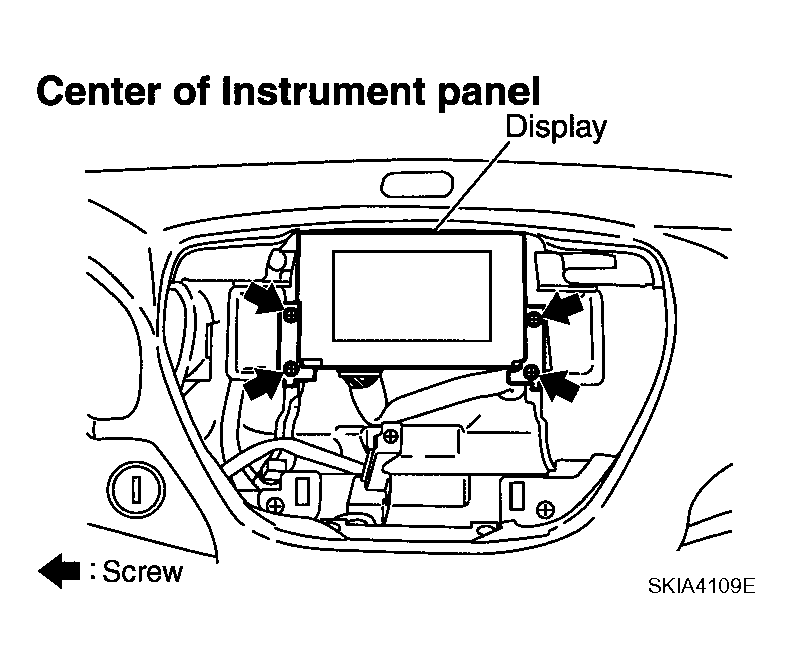

    Fig 1: Identifying Display
    G04131241Courtesy of NISSAN MOTOR CO., U.S.A.
