Side Distance Guideline Correction

This mode is used to modify the side distance guidelines if they are dislocated from the rear view monitor image, because of variations of body/camera mounting conditions.

Create a correction line to modify the screen. Draw lines on the backward of the vehicle passing through the following points: 0.2 m (7.87 inch) from both sides of the vehicle, and
- *1: 0.5 m (1.64 feet)
- *2: 1.0 m (3.28 feet)
- *3: 2.0 m (6.56 feet)
- *4: 3.0 m (9.84 feet)
  from the rear end of the bumper.

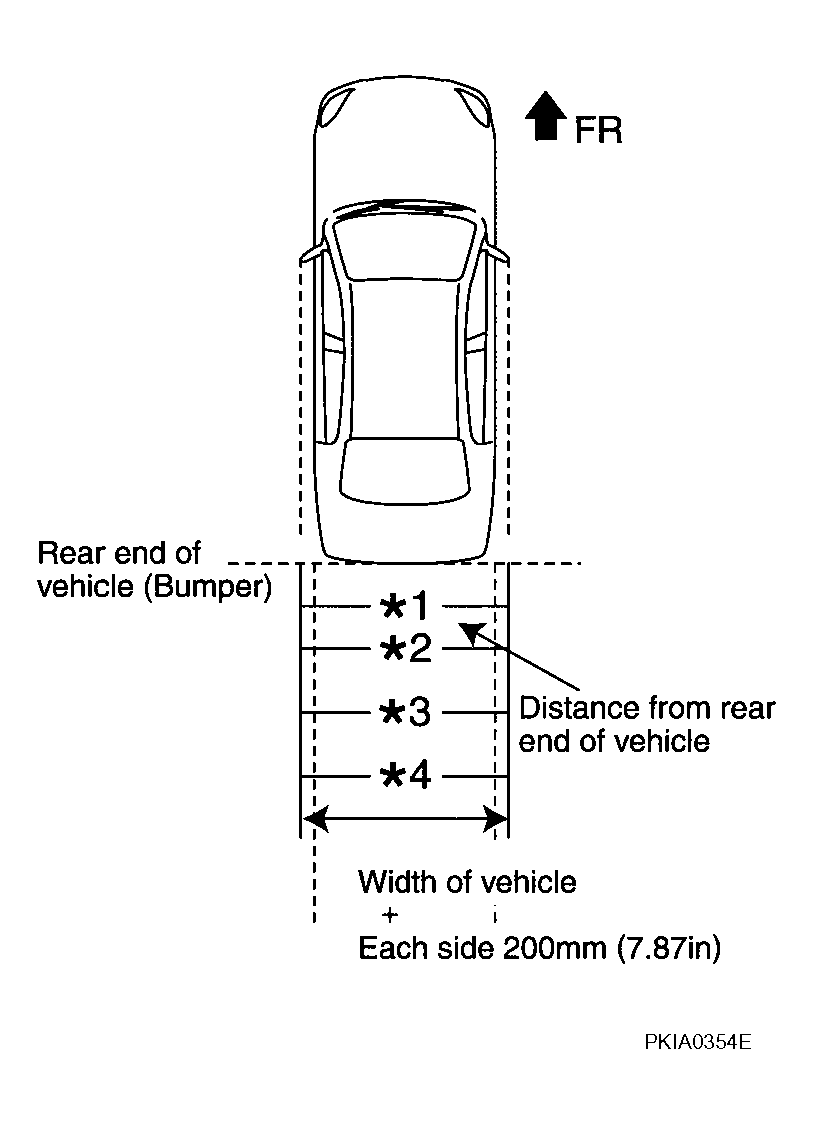

  Fig 1: Side Distance Guideline Correction
  Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Turn OFF the audio system.
While pressing the "INFO" switch, turn volume control dial clockwise or counterclockwise for 30 clicks or more. (When self-diagnosis mode is activated, a short beep will be heard.)
- To return to the previous screen, press "PREV" switch.

  Fig 2: Identifying INFO Switch
  Courtesy of NISSAN MOTOR CO., U.S.A.
The initial trouble diagnosis screen is displayed for selecting "Confirmation/Adjustment" mode.

Fig 3: Initial Trouble Diagnosis Screen - Self Diagnosis
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "Rearview" in "CONFIRMATION/ADJUSTMENT".
Shift the A/T selector lever to "R" position.

Fig 4: Initial Trouble Diagnosis Screen - Confirmation/Adjustment
Courtesy of NISSAN MOTOR CO., U.S.A.
Using the joy stick, select the pattern closest to the prepared correction line among the 6 guideline patterns, then press "ENTER" button.

Fig 5: Prepared Correction Guideline Pattern (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Carefully adjust the center of the background vertically and horizontally in the range of 8 - 8. Align it with the prepared line, and press the "ENTER" button.
The adjustment is completed.

Fig 6: Prepared Correction Guideline Pattern (2 Of 2)
