Turn Signal Input Inspection

CHECK TURN SIGNAL INPUT (LDW CAMERA UNIT)
Check turn signal input "TURN SIGNAL" in "DATA MONITOR" mode with CONSULT-II.

"TURN SIGNAL"

When lighting switch is in TURN RH position : RH

When lighting switch is in TURN LH position : LH

NOTE: It dose not display when hazard switch turns ON.

OK or NG
1. OK : Turn signal input is OK. Return to "SYMPTOM CHART ".
2. NG : GO TO 2.

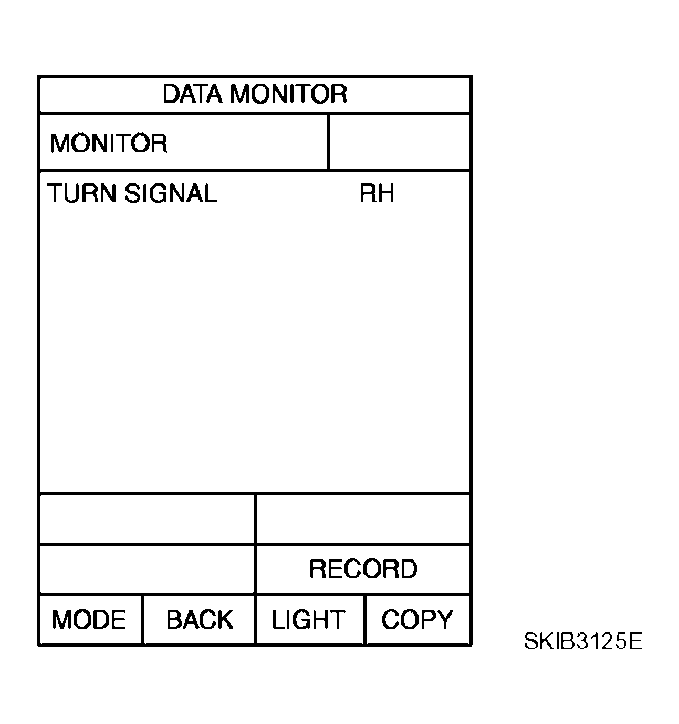

  Fig 1: CONSULT-II Display - Data Monitor (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK TURN SIGNAL INPUT (ICC UNIT)
1. Select "ICC" on "SELECT SYSTEM" screen. Refer to "CONSULT-II FUNCTION (ICC) ".
2. Check turn signal input "TURN SIGNAL" in "DATA MONITOR" mode.
  "TURN SIGNAL"

  When lighting switch is in TURN RH position : RH

  When lighting switch is in TURN LH position : LH

  When hazard switch is turned ON : RH/LH
OK or NG
1. OK : Replace LDW camera unit.
2. NG : GO TO 3.

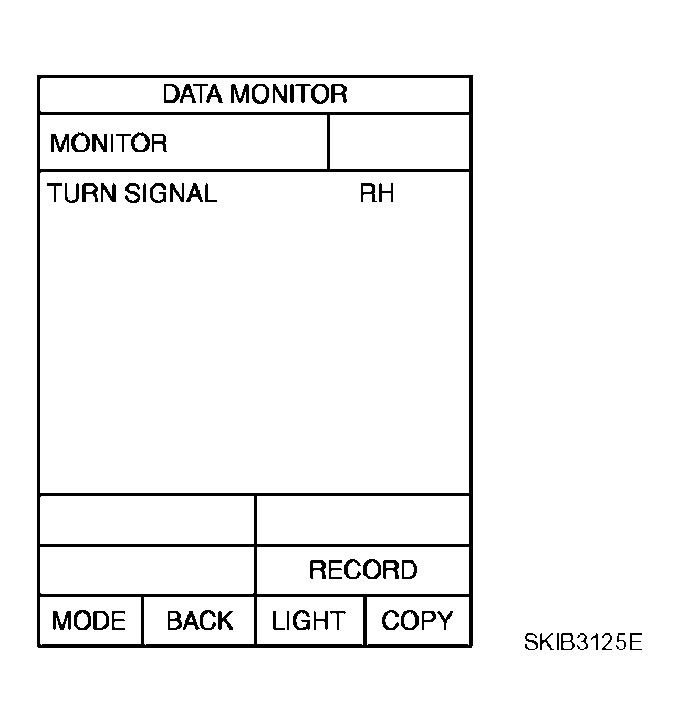

  Fig 2: CONSULT-II Display - Data Monitor (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK VOLTAGE OF TURN SIGNAL

Check voltage between ICC unit harness connector and ground.

CONNECTOR TERMINALS VOLTAGE SPECIFICATIONS

Terminals			Condition	Voltage (Approx.)
(+)		(-)	Condition
ICC unit connector	Terminal	(-)	Turn signal lamp (RH):
B243	16	Ground	Illuminate	12 V
B243	16	Ground	Not illuminate	0 V

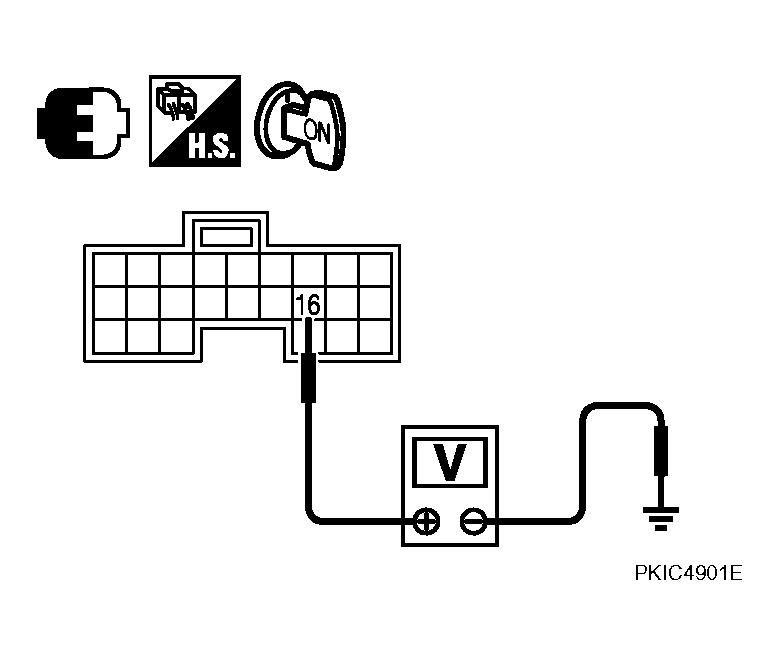

Fig 3: Identifying Voltage Of Turn Signal (1 Of 2)

G04131091

Courtesy of NISSAN MOTOR CO., U.S.A.

CONNECTOR TERMINALS VOLTAGE SPECIFICATIONS

Terminals			Condition	Voltage (Approx.)
(+)		(-)	Condition
ICC unit connector	Terminal	(-)	Turn signal lamp (LH):
B244	28	Ground	Illuminate	12 V
B244	28	Ground	Not illuminate	0 V

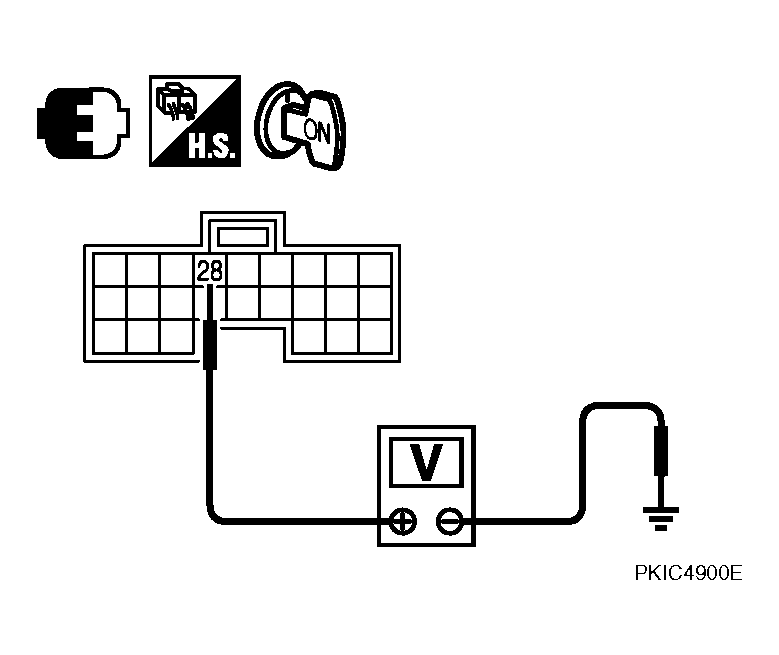

Fig 4: Identifying Voltage Of Turn Signal (2 Of 2)

G04131092

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Replace ICC unit.
NG : Repair harness between ICC unit and combination flasher unit. Refer to "WIRING DIAGRAM - TURN - ".
