Bulb Replacement

  1. Turn the back of the bulbs (1) counterclockwise about 1/4 turn to unlock them.
  2. Pull the old bulbs from the clock (2).
  3. Install the new bulbs and turn them clockwise about 1/4 turn to lock them in place.

    Clock bulbs : 12V-1.12W (BLUE CAP) x 2

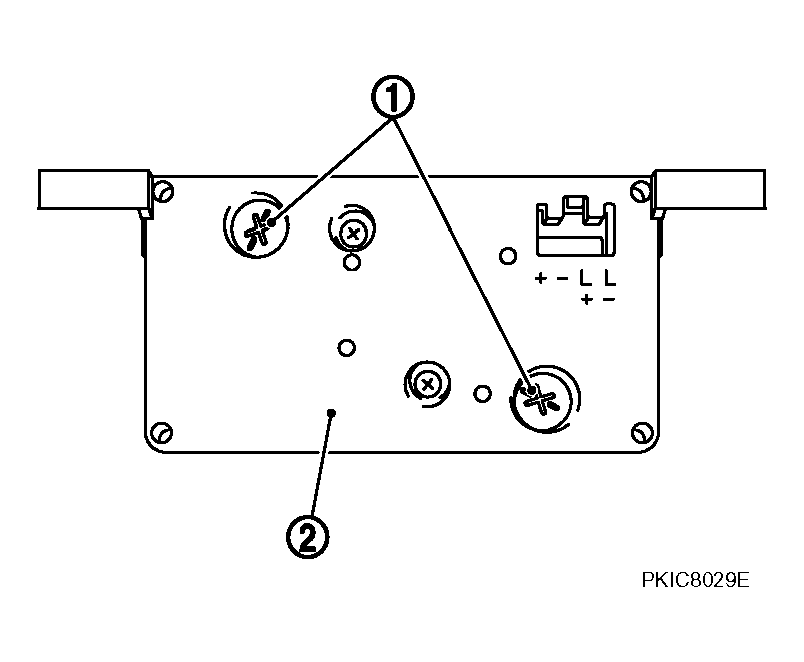

    Fig 1: View Of Bulb
    G04131348Courtesy of NISSAN MOTOR CO., U.S.A.
