Infiniti
>>
2006
>>
Q45
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
VDC/TCS/Abs
>>
System Description
>>
Hydraulic Circuit Diagram
Hydraulic Circuit Diagram

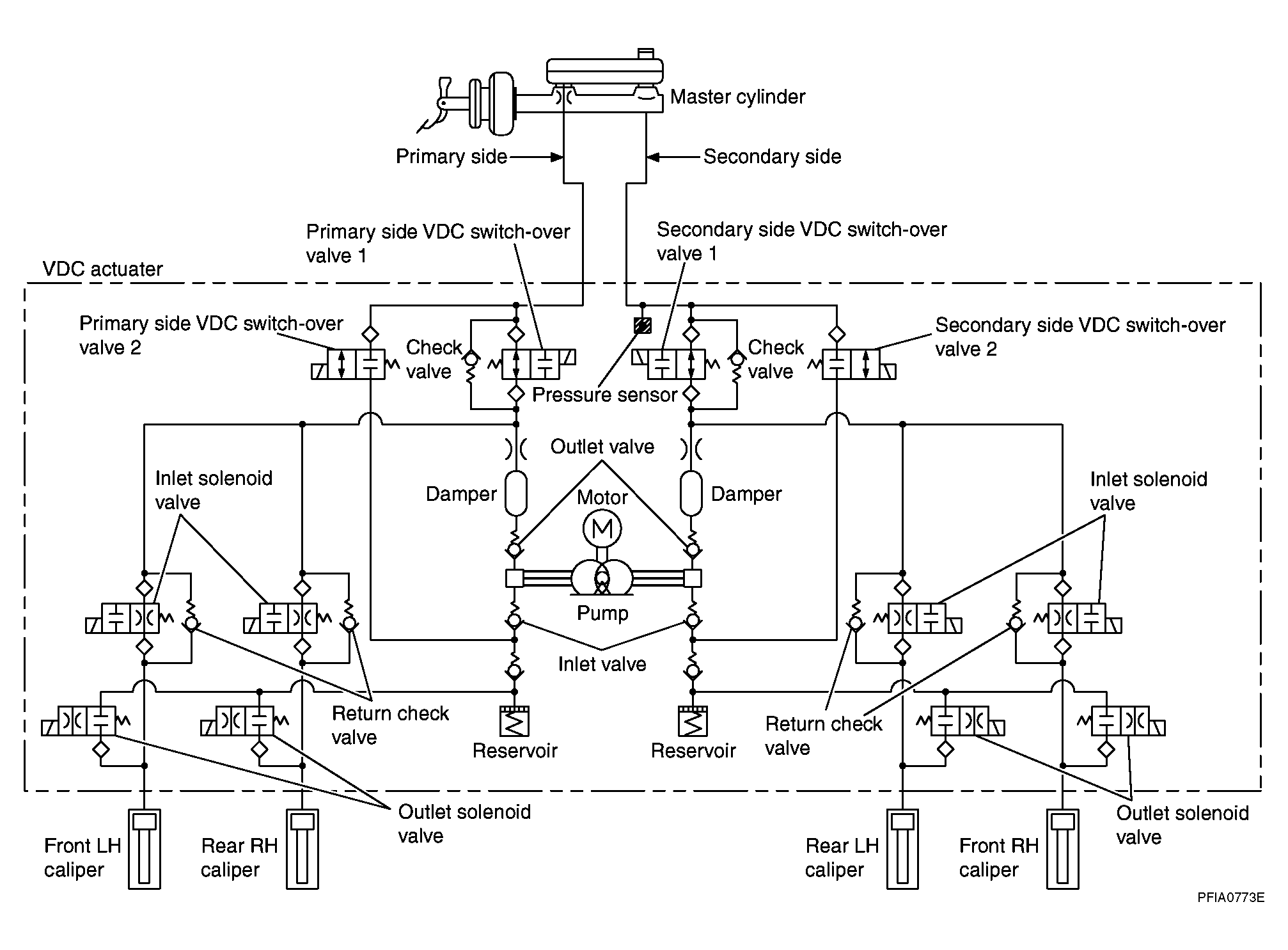

Fig 1: VDC/TCS/ABS Hydraulic Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
