Removal and Installation: Removal

  1. Remove front air guide. Refer to "ENGINE ROOM COVER ".
  2. Remove harness connector.
  3. Remove VDC relay box bracket mounting bolt.
  4. Remove VDC relay box (1) from vehicle.

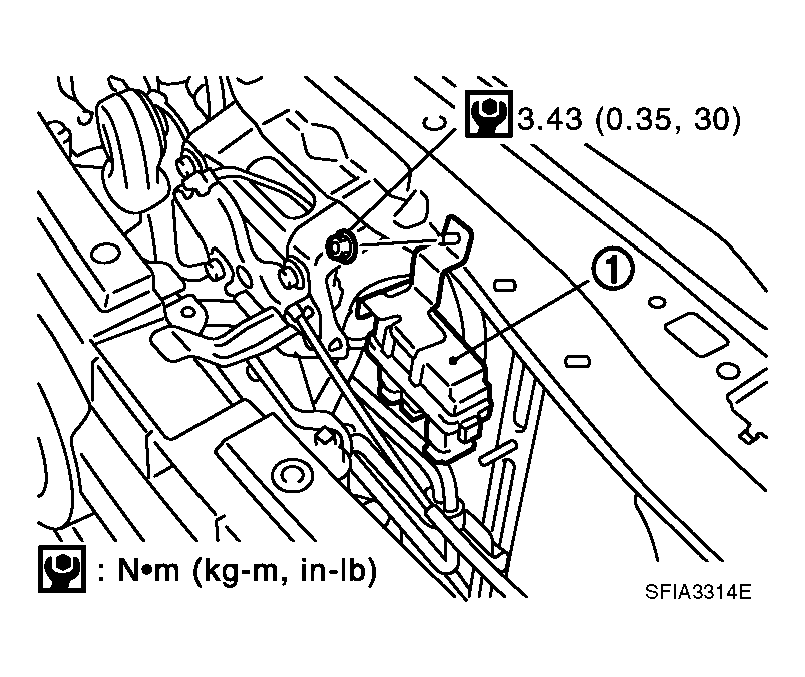

    Fig 1: Relay Box With Torque Specification
    G04128995Courtesy of NISSAN MOTOR CO., U.S.A.
