Home >> Infiniti >> 2006 >> Q45 >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System >> VDC/TCS/Abs >> G Sensor >> Removal and Installation >> Removal

Removal and Installation: Removal

  1. Remove center console. Refer to "(M) CONSOLE BOX ASSEMBLY ".
  2. Remove harness connector.
  3. Remove rear ventilator duct No. 2. Refer to "REMOVAL OF REAR VENTILATOR DUCTS ".
  4. Remove mounting bolts. Remove yaw rate/side G sensor.

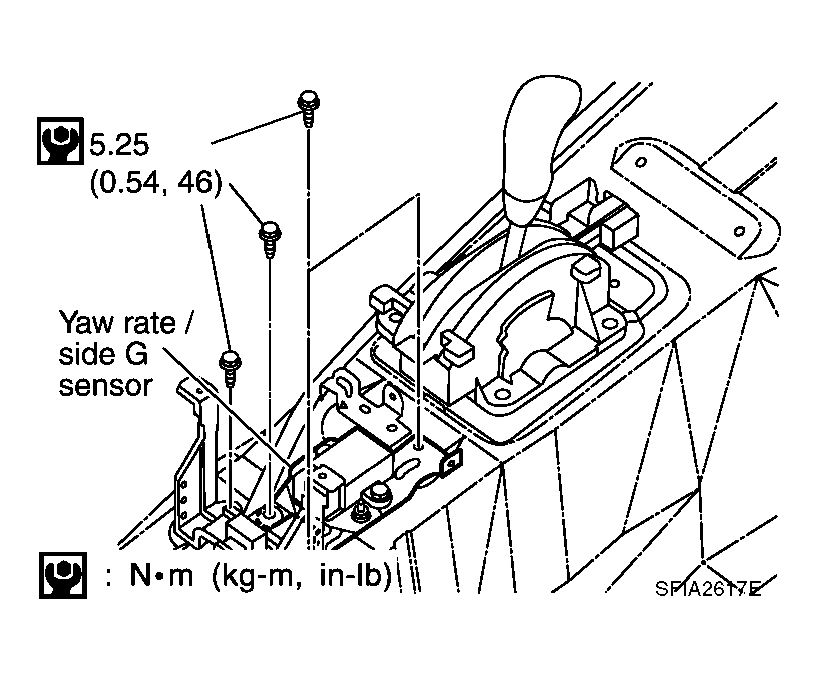

    Fig 1: G Sensor With Torque Specifications
    G04128993Courtesy of NISSAN MOTOR CO., U.S.A.
