Home >> Infiniti >> 2006 >> Q45 >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System >> VDC/TCS/Abs >> Actuator >> Removal and Installation >> Components

Removal and Installation: Components

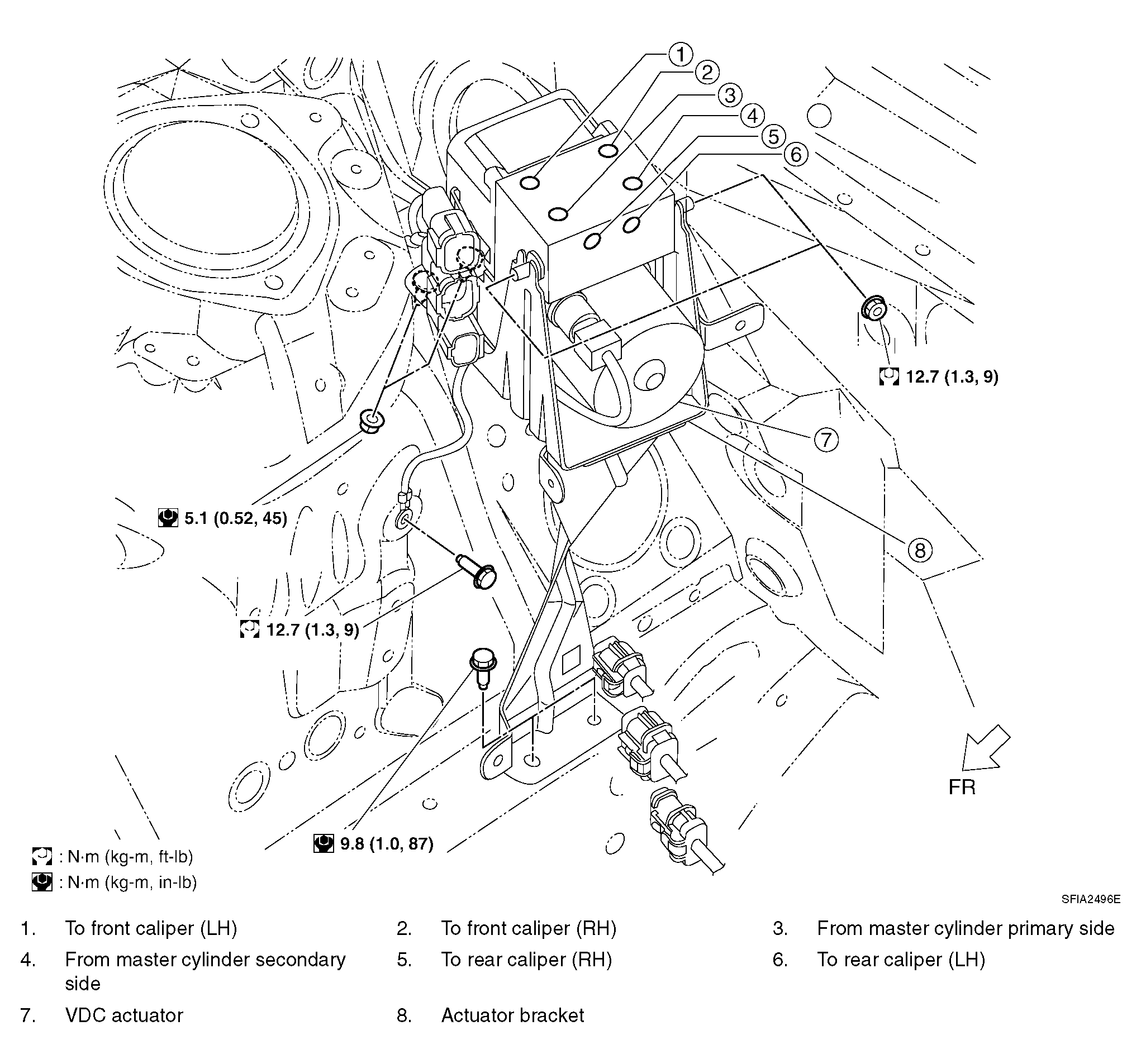

Fig 1: Actuator Replacement Components With Torque Specifications

G04128992

Courtesy of NISSAN MOTOR CO., U.S.A.
