Consult-II Basic Operation Procedure: Notes

1. Turn ignition switch "OFF".
2. Connect "CONSULT-II" and CONSULT-II CONVERTER to data link connector.
   Fig 1: Locating Data Link Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Turn ignition switch "ON".
4. Touch "START(NISSAN BASED VHCL)".
   Fig 2: Consult-II Display Screen

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Touch "IVMS"on the "SELECT SYSTEM" screen. If "IVMS" is not indicated, go to Refer to "CONSULT-II DATE LINK CONNECTOR (DLC) CIRCUIT ".
   Fig 3: Consult-II SELECT SYSTEM Display Screen

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Check the model specification, and touch either "WITH SUNROOF" or "WITHOUT SUNROOF" on the "SELECT SYS COND" screen.
7. Touch "OK". If the selection is wrong, touch "CANCEL".
8. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.

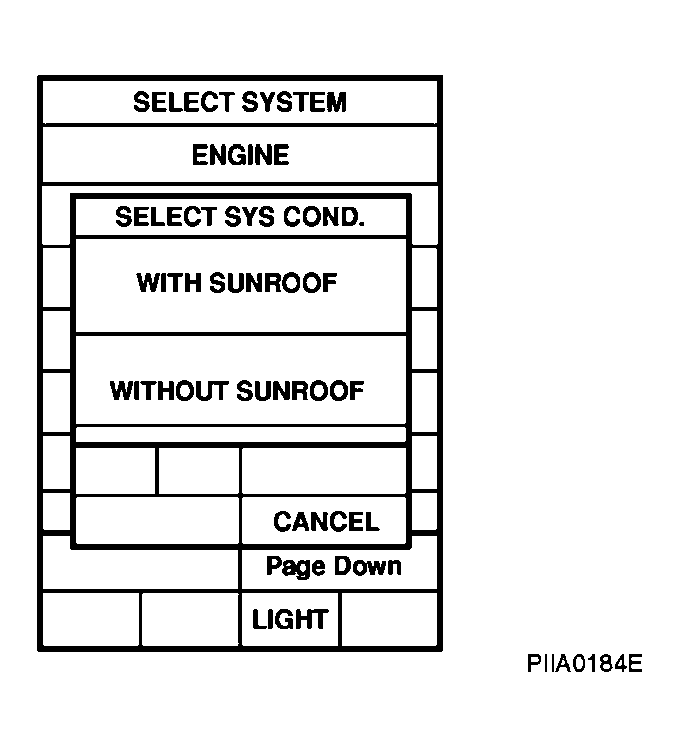

   Fig 4: Consult-II Display - With Sunroof

   Courtesy of NISSAN MOTOR CO., U.S.A.
