Procedure 2 (With Consult-II)

NOTE: If a electronic key is lost, the ID code of the lost electronic key must be erased to prevent unauthorized use. When the ID code of a lost electronic key is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new electronic key must be re-registered.

Turn ignition switch "OFF".
Connect "CONSULT-ll" and "CONSULT-ll CONVERTER" to the data link connector.

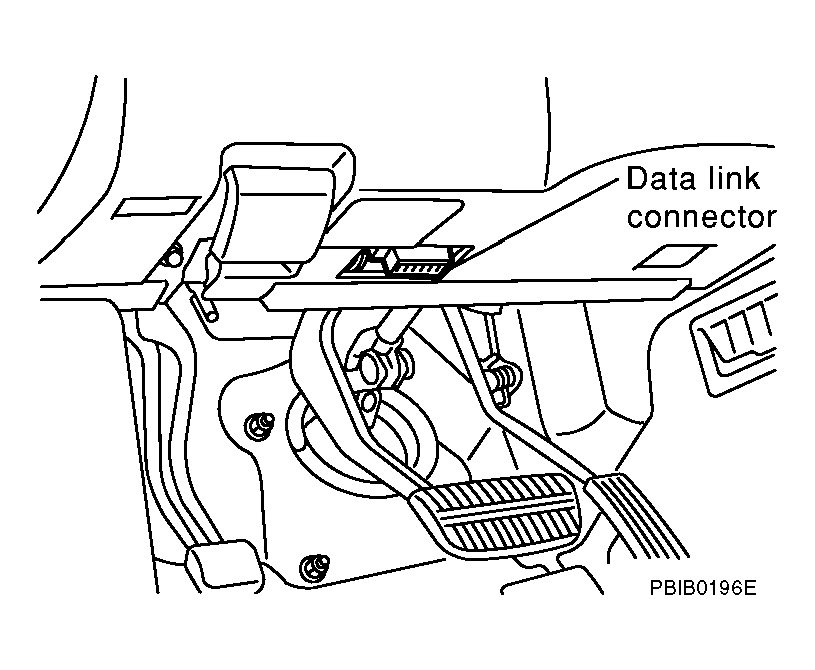

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)"

Fig 2: CONSULT-II Display - START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IVMS"
If "IVMS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: CONSULT-II Display - IVMS
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
Touch "OK". If the selection is wrong, touch "CANCEL".

Fig 4: CONSULT-II Display - WITH SUNROOF
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MULTI-REMOTE CONT SYS".

Fig 5: CONSULT-II Display - MULTI-REMOTE CONT SYS
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "WORK SUPPORT".
The item shown on the figure at right can be set up.
- "REMO CONT ID CONFIR"
  Use this mode to confirm if a electronic key ID code is registered or not.
- "REMO CONT ID REG" Use this mode to register a electronic key ID code.
  NOTE: Register the ID code when electronic key or BCM is replaced, or when additional electronic key is required.
- "REMO CONT ID ERASUR" Use this mode to erase a electronic key ID code.

  Fig 6: CONSULT-II Display - WORK SUPPORT
  Courtesy of NISSAN MOTOR CO., U.S.A.
