Check Trunk Lid Opener Cancel Switch

CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect trunk lid opener cancel switch connector.
3. Check voltage between trunk lid opener cancel switch connector M117 terminal 1 and ground.
  1 (G) - Ground : Battery voltage.
OK or NG
- OK : GO TO 2.
- NG : Check the following.
  - Trunk lid opener relay
  - Harness for open or short between trunk lid opener cancel switch and trunk lid opener relay

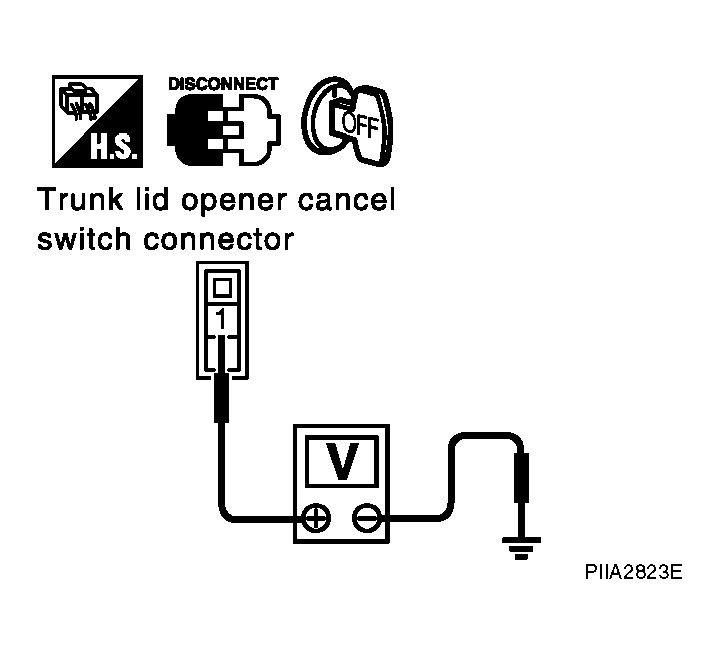

    Fig 1: Checking Voltage Between Trunk Lid Opener Cancel Switch Connector M117 Terminal 1 And Ground
    Courtesy of NISSAN MOTOR CO., U.S.A.

CANCEL SWITCH INSPECTION

Check continuity between trunk lid opener cancel switch terminals 1and 2.

CONTINUITY CHART

Terminal		Condition of trunk lid opener cancel switch	Continuity
1	2	ON	Yes
1	2	OFF	No

OK or NG

OK : GO TO 3.
NG : Replace trunk lid opener cancel switch.

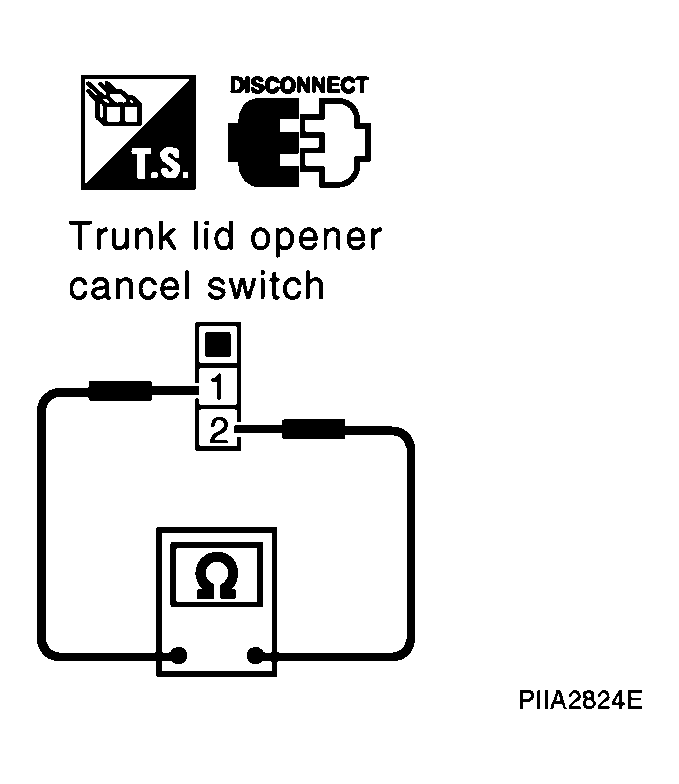

Fig 2: Checking Continuity Between Trunk Lid Opener Cancel Switch Terminals 1 And 2
Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK HARNESS CONTINUITY
1. Disconnect BCM connector.
2. Check continuity between BCM connector M4 terminal 109 and trunk lid opener cancel switch connector M117 terminal 2.
  109 (LG) - 2 (LG) : Continuity should exist.
3. Check continuity between trunk lid opener cancel switch connector M117 terminal 2 and ground.
  2 (LG) - Ground : Continuity should not exist.
OK or NG
- OK : Trunk lid opener cancel switch circuit is OK.
- NG : Repair or replace harness.

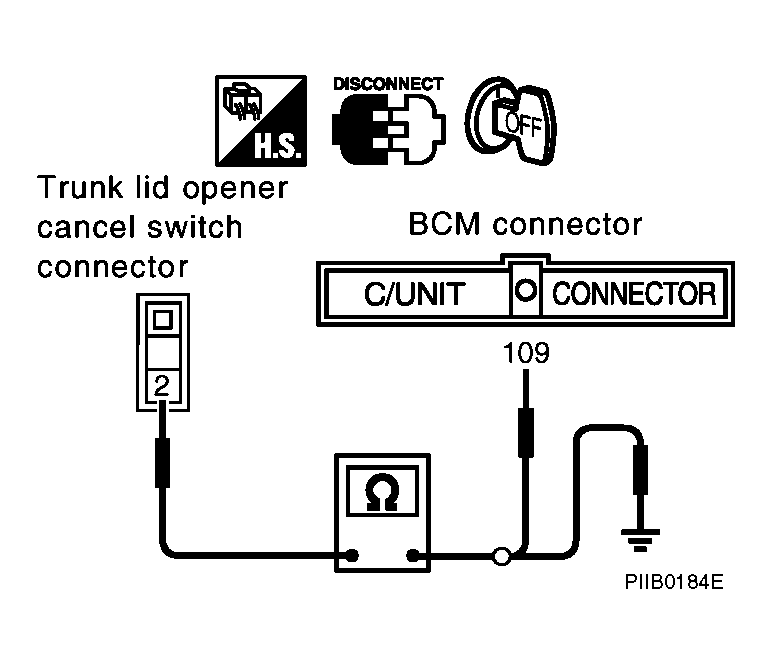

  Fig 3: Checking Continuity Between Trunk Lid Opener Cancel Switch Connector M117 Terminal 2 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
