Check Rear Door Switch

With CONSULT-II

Check rear door switch ("DOOR SW-RR" and "DOOR SW-RL") in "DATA MONITOR" mode with CONSULT-II.

Fig 1: CONSULT-II Display - Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check front door switch in "SWITCH MONITOR" mode. Refer to , "SWITCH MONITOR ".

OK or NG

• OK : Rear door switch is OK.
• NG : GO TO 2

1. Turn ignition switch OFF.
2. Disconnect door switch and BCM connector.
3. Check continuity between rear door switch connector D62 (rear LH), D82 (rear RH) terminal 1 (W) and BCM connector M4 (rear LH), B4 (rear RH) terminal 33 (W), 143 (W/L).

   Rear door switch LH

   1 (W) - 33 (W) : Continuity should exist.

   Rear door switch RH

   1 (W) - 143 (W/L) : Continuity should exist.

4. Check continuity between rear door switch connector D62 (rear LH), D82 (rear RH) terminal 1(W) and ground.

   1 (W) - Ground : Continuity should not exist.

OK or NG

• OK : GO TO 3.
• NG : Repair or replace harness.

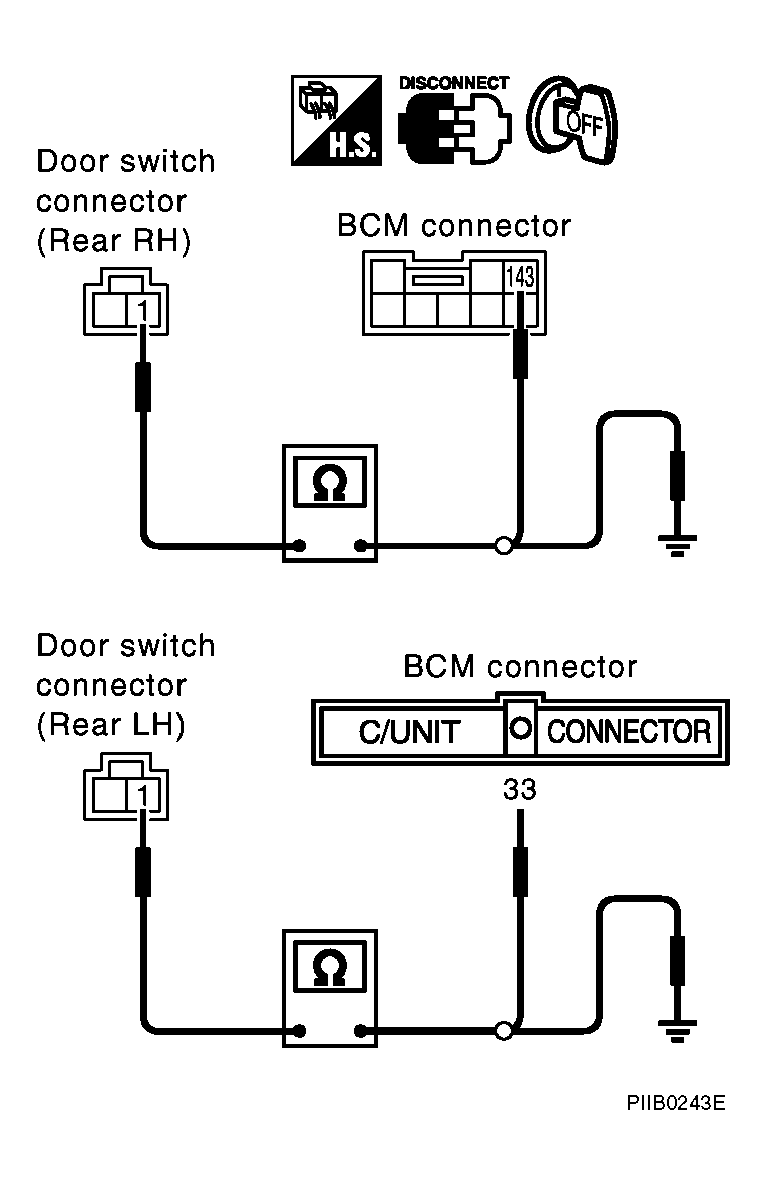

  Fig 2: Checking Continuity Between Rear Door Switch Connector D62 (Rear LH), D82 (Rear RH) Terminal 1(W) And Ground

  Courtesy of NISSAN MOTOR CO., U.S.A.

1. Turn ignition switch OFF.
2. Check continuity between rear door switch connector D62 (rear LH), D82 (rear RH) terminal 2 and ground.

   2 (B) - Ground : Continuity should exist.

OK or NG

• OK : GO TO 4.
• NG : Repair or replace harness.
  Fig 3: Checking Continuity Between Rear Door Switch Connector D62 (Rear LH), D82 (Rear RH) Terminal 2 And Ground

  Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between rear door switch (rear LH), (rear RH) terminals 1and 2.

OK or NG

• OK : Rear door switch is OK.
• NG : Replace malfunction door lock assembly rear (door switch).
  Fig 4: Checking Continuity Between Rear Door Switch (Rear LH), (Rear RH) Terminals 1 And 2

  Courtesy of NISSAN MOTOR CO., U.S.A.
