Power Door Lock System: Schematic

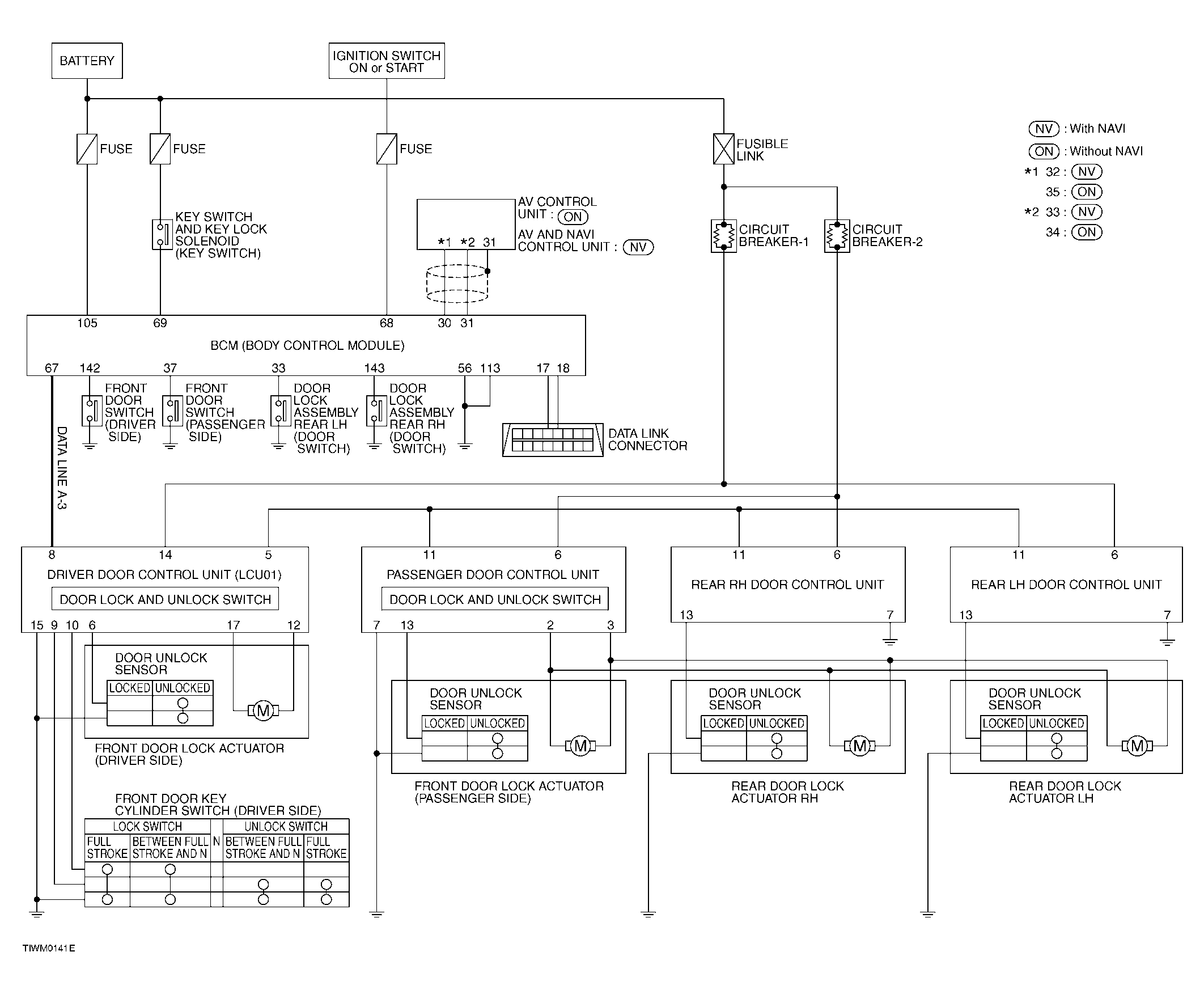

Fig 1: Schematic Diagram

G04129348

Courtesy of NISSAN MOTOR CO., U.S.A.
