Rear Panel
Rear Panel

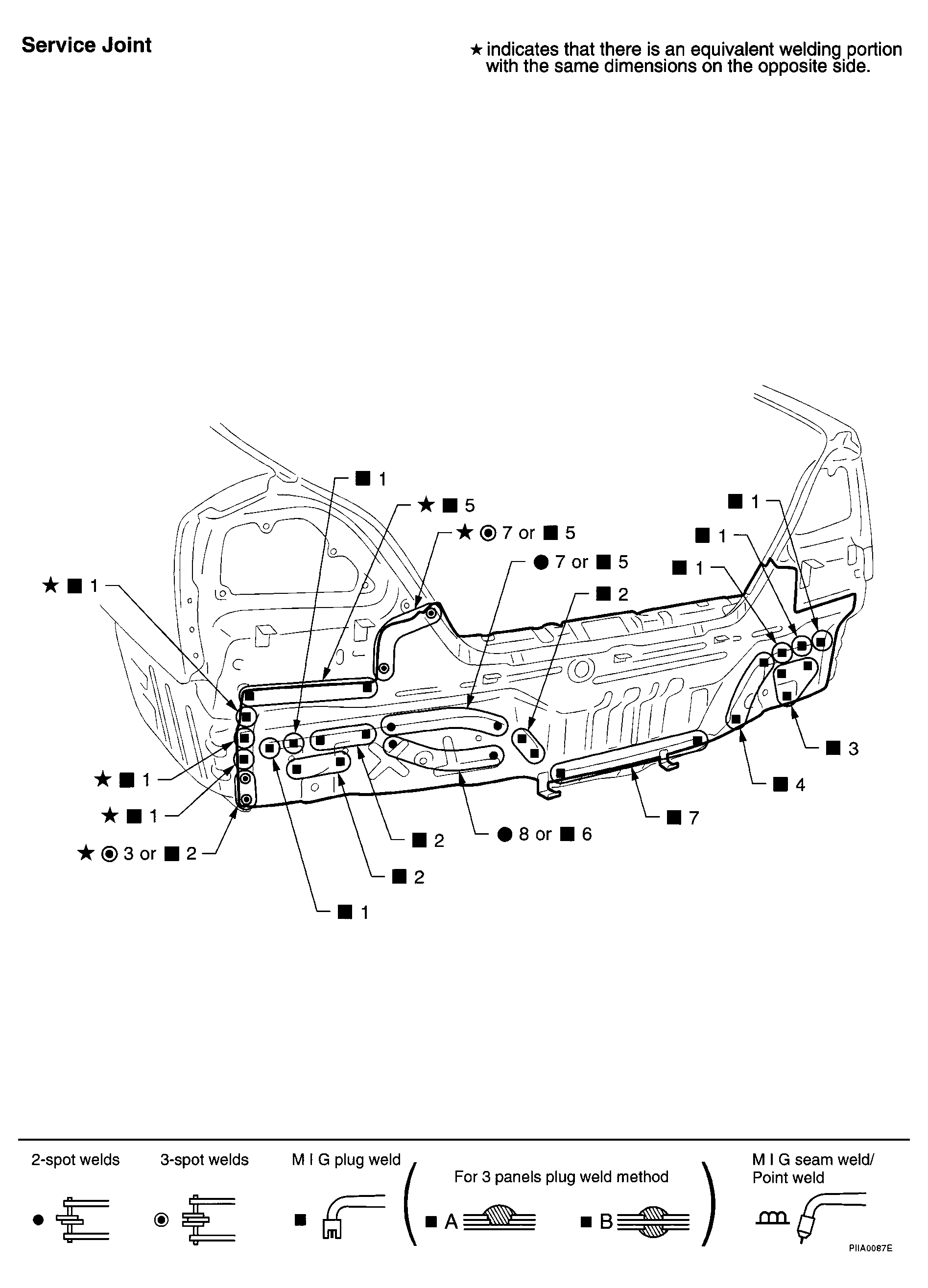

Fig 1: Identifying Rear Panel
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
