Rear Fender
Rear Fender

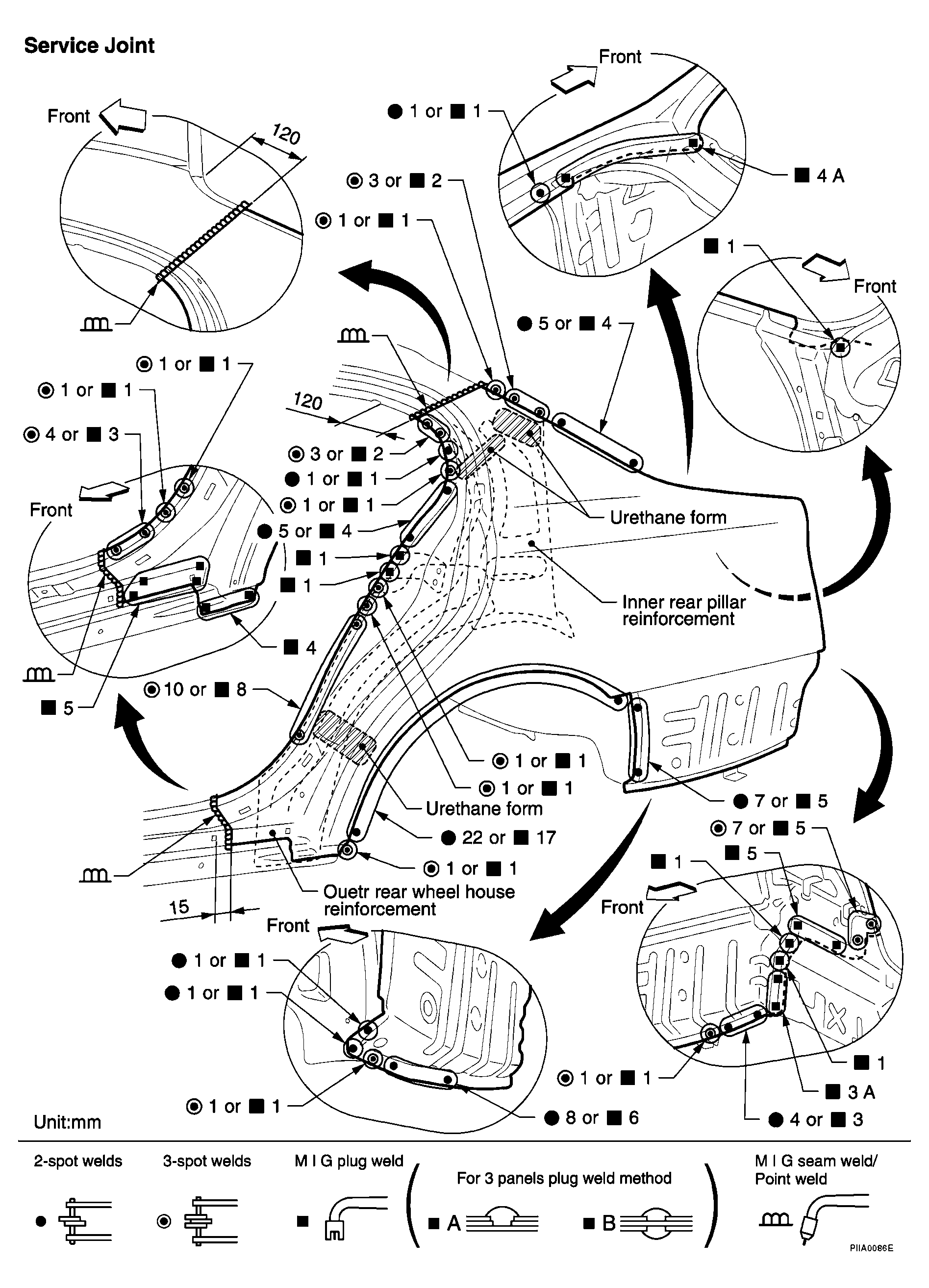

Fig 1: Identifying Rear Fender
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
