Removal and Installation: Components

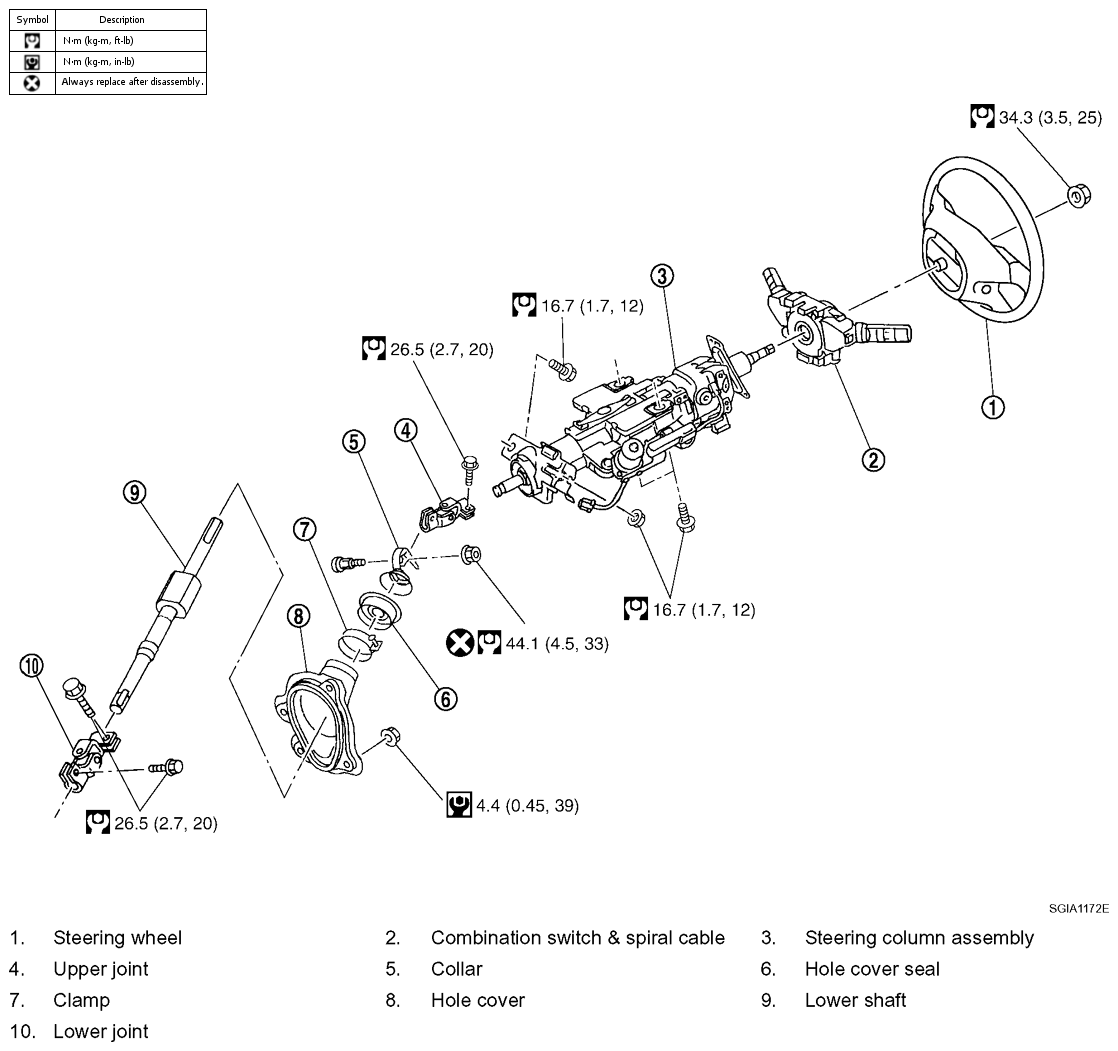

Fig 1: Steering Column Replacement Components With Torque Specifications
G04144825Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Do not give axial impact to steering column assembly during removal and installation.
  • Do not move steering gear assembly when removing steering column assembly.
