General Specifications
WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
GENERAL SPECIFICATIONS
| Cylinder arrangement | V-8 | |
| Displacement cm3 (cu in) | 5,552 (338.80) | |
| Bore and stroke mm (in) | 98 x 92 (3.86 x 3.62) | |
| Valve arrangement | DOHC | |
| Firing order | 1-8-7-3-6-5-4-2 | |
| Number of piston rings | Compression | 2 |
| Oil | 1 | |
| Number of main bearings | 5 | |
| Compression ratio | 9.8: 1 | |
| Compression pressure kPa (kg/cm2 , psi)/rpm | Standard | 1,520 (15.5, 220)/200 |
| Minimum | 1,324 (13.5, 192)/200 | |
| Differential limit between cylinders | 98 (1.0, 14)/200 | |

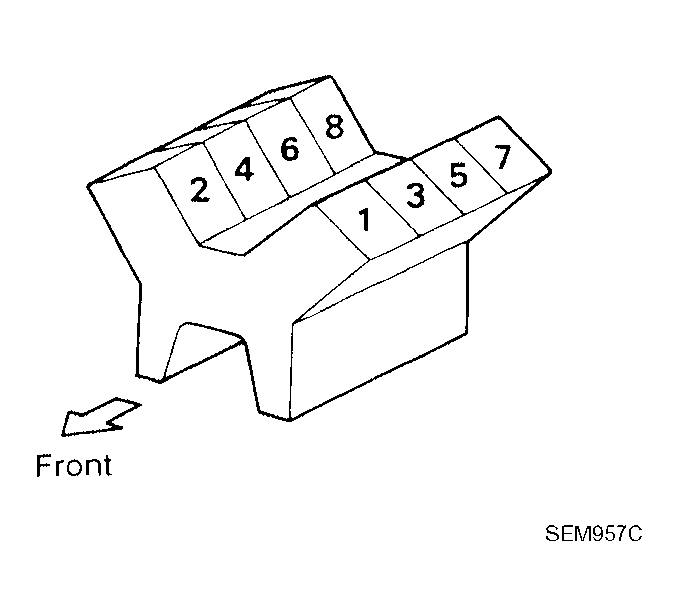

| Cylinder number | ||

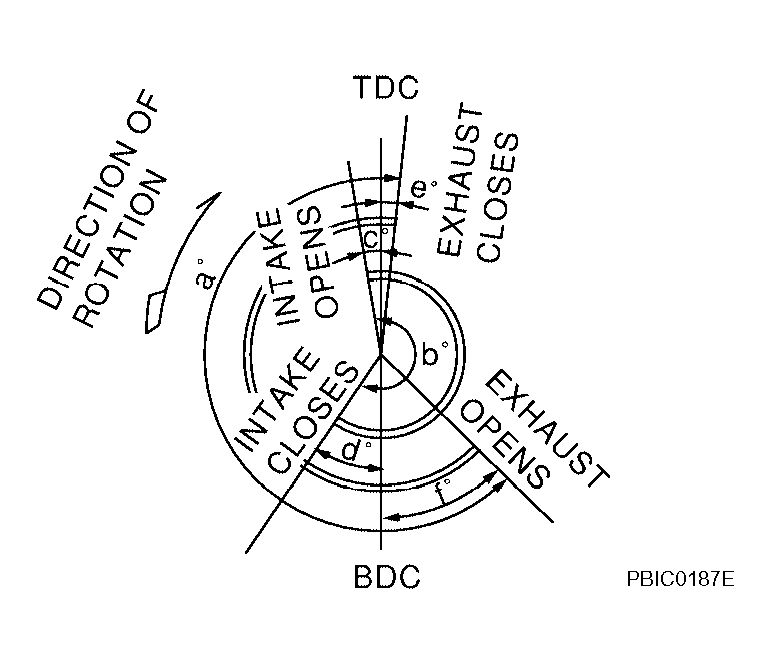

| Valve timing | ||
TIMING ANGLE SPECIFICATIONS
| Unit: degree | |||||
|---|---|---|---|---|---|
| a | b | c | d | e | f |
| 232° | 230° | 2° | 48° | 3° | 49° |
