Commercial Service Tools
WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
COMMERCIAL SERVICE TOOLS DESCRIPTION
| (Kent-Moore No.) Tool name |
Description | |
|---|---|---|
| Power tool | Loosening bolts and nuts | |
| Spark plug wrench | Removing and installing spark plug | |

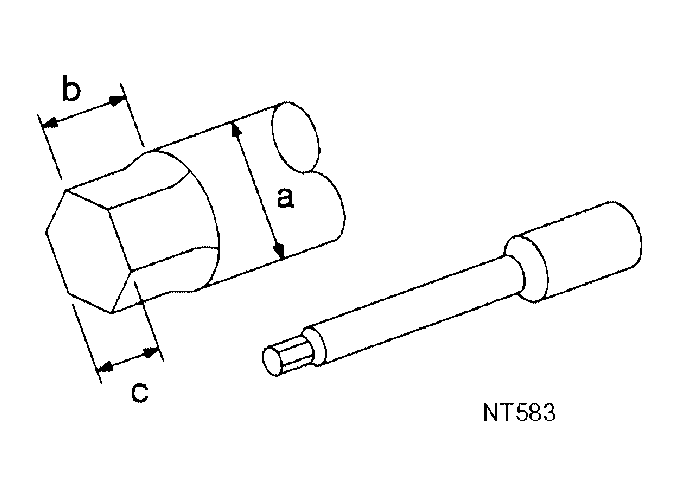

| (J-24239-01) Cylinder head bolt wrench |
Loosening and tightening cylinder head bolt, and use with angle wrench [SST: KV10112100 (BT-8653-A)] a: 13 (0.51) dia. b: 12 (0.47) c: 10 (0.39) Unit: mm (in) |
|

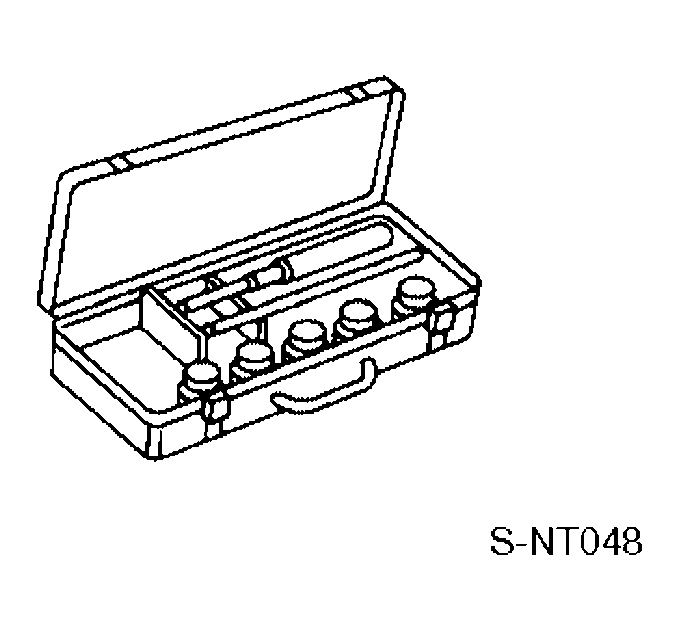

| Valve seat cutter set | Finishing valve seat dimensions | |

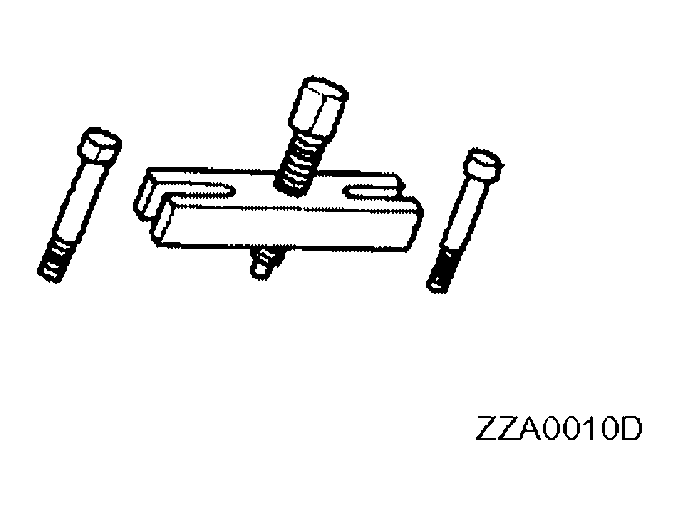

| Pulley puller | Removing crankshaft pulley | |

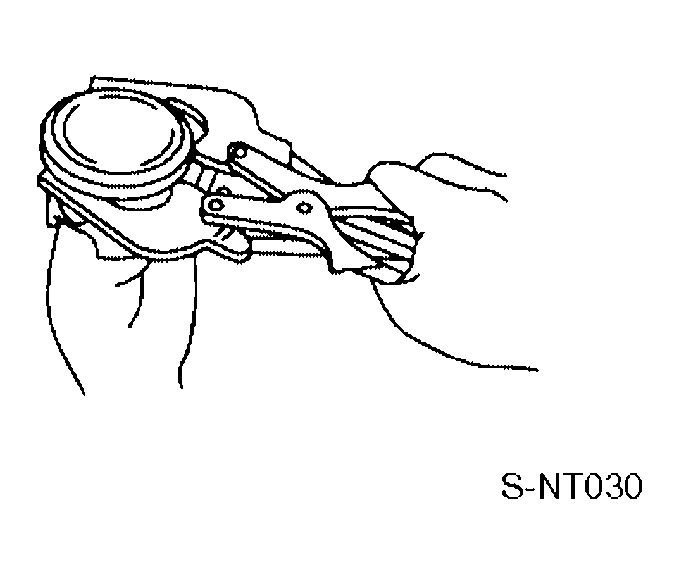

| Piston ring expander | Removing and installing piston ring | |

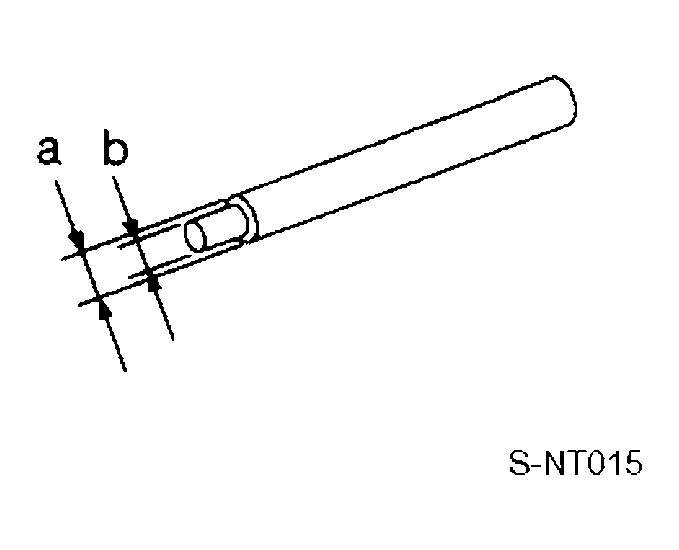

| Valve guide drift | Removing and installing valve guide Intake & Exhaust: a: 9.5 mm (0.374 in) dia. b: 5.5 mm (0.217 in) dia. |
|

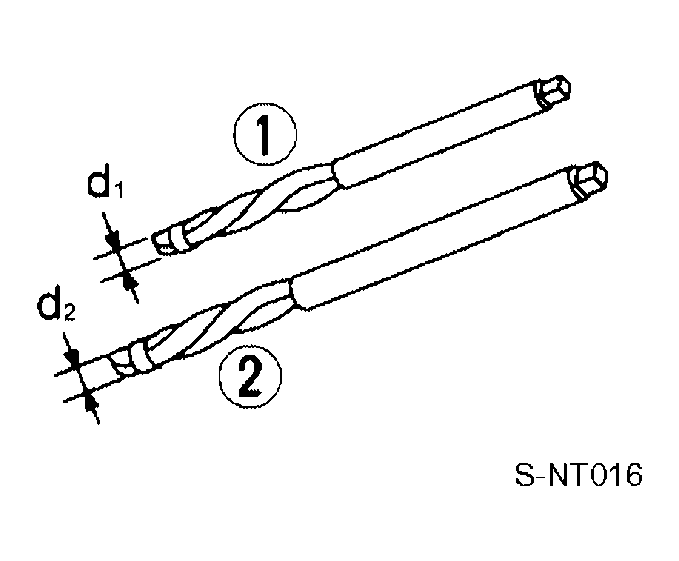

| Valve guide reamer |
Intake & Exhaust: d1 : 6.0 mm (0.236 in) dia. d2 : 10.175 - 10.196 mm (0.4006 - 0.4014 in) dia. |
|
| Front oil seal drift | Installing front oil seal | |
| Rear oil seal drift | Installing rear oil seal | |
| (J-43897-18) (J-43897-12) Oxygen sensor thread cleaner |
Reconditioning the exhaust system threads before installing a new A/F sensor and heated oxygen sensor (Use with anti-seize lubricant shown below.) a: J-43897-18 (18 mm dia.) (0.71 in) for zirconia heated oxygen sensor b: J-43897-12 (12 mm dia.) (0.55 in) for Titania heated oxygen sensor |
|
| Anti-seize lubricant (Permatex 133AR or equivalent meeting MIL specification MIL-A-907) | Lubricating A/F sensors and heated oxygen sensor thread cleaning tool when reconditioning exhaust system threads | |
