Cause of Auto-Cancel: Notes

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "WORK SUPPORT" on "SELECT DIAG MODE" screen.
  2. Touch "CAUSE OF AUTO-CANCEL" on "SELECT WORK ITEM" screen.
  3. Cause of automatic cancellation screen will be shown.
  4. The last five causes of automatic cancellation of ICC system will be displayed.

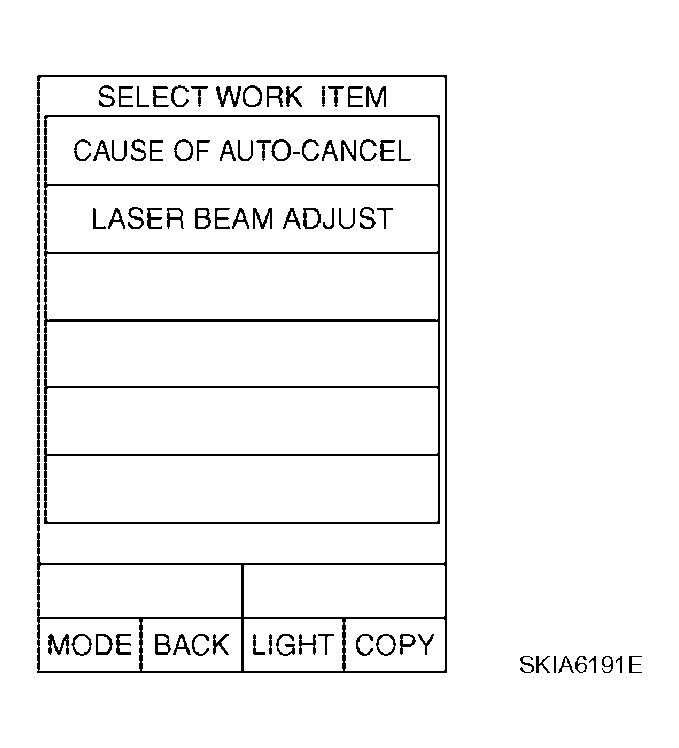

    Fig 1: Display SELECT WORK ITEM Screen
    G04137145Courtesy of NISSAN MOTOR CO., U.S.A.
