ICC Brake Switch and Stop Lamp Switch

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

ICC BRAKE SWITCH AND STOP LAMP SWITCH CONTINUITY REFERENCE

	Continuity
	ICC brake switch	Stop lamp switch
When brake pedal is depressed	No	Yes
When brake pedal is released	Yes	No

Check each switch after adjusting brake pedal. Refer to " BRAKE PEDAL ".

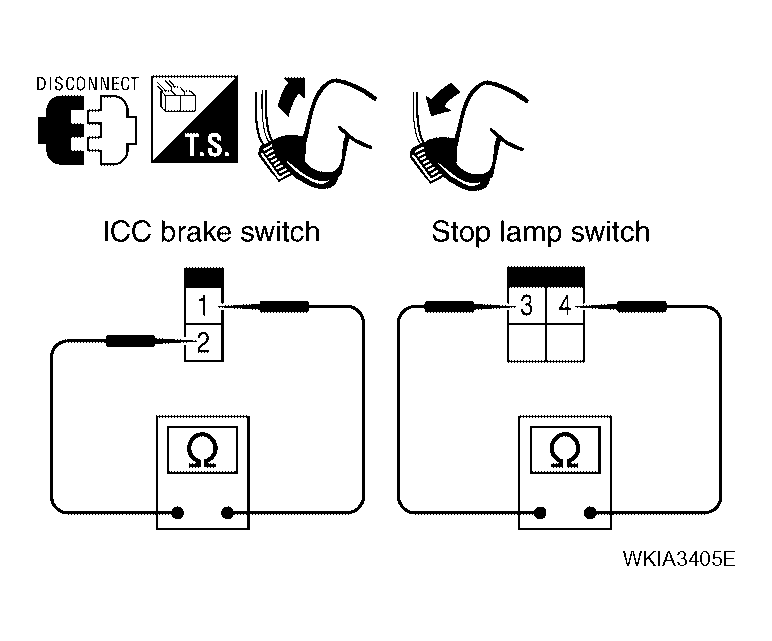

Fig 1: Identifying Continuity Between ICC Brake Switch And Stop Lamp Switch Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
