CONSULT-II Data Link Connector (DLC) Circuit: Notes

WARNING: This page is about a different car, the 2006 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

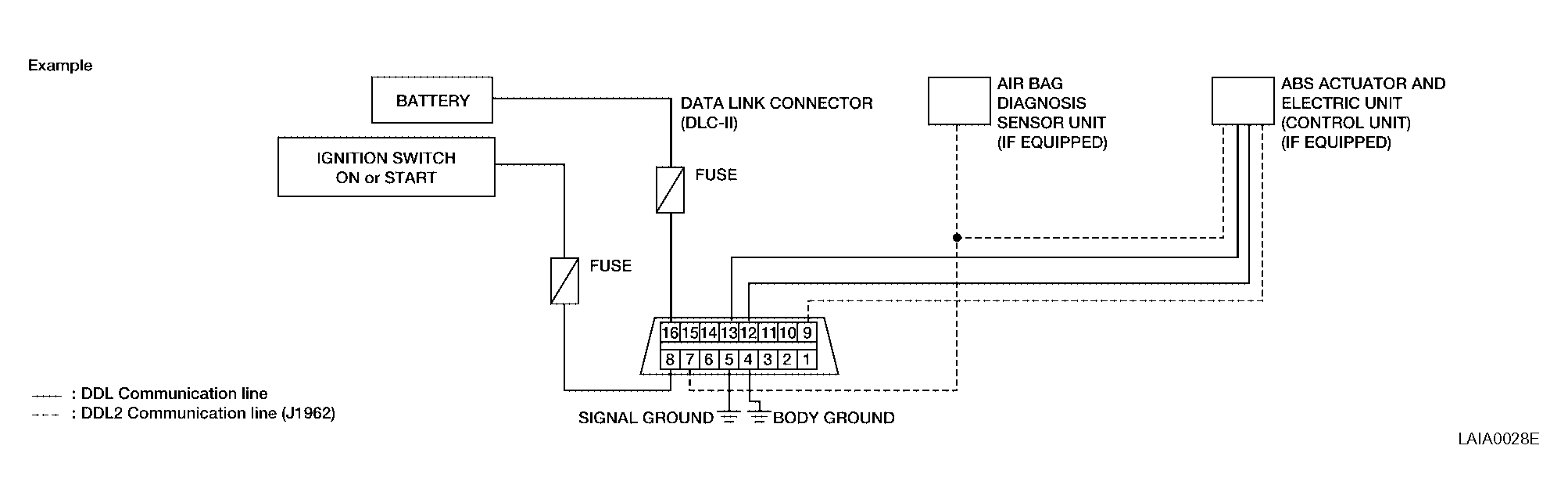

Fig 1: Data Link Connector (DLC) Circuit Diagram
G04132130Courtesy of NISSAN MOTOR CO., U.S.A.
