Overall Sequence: Notes

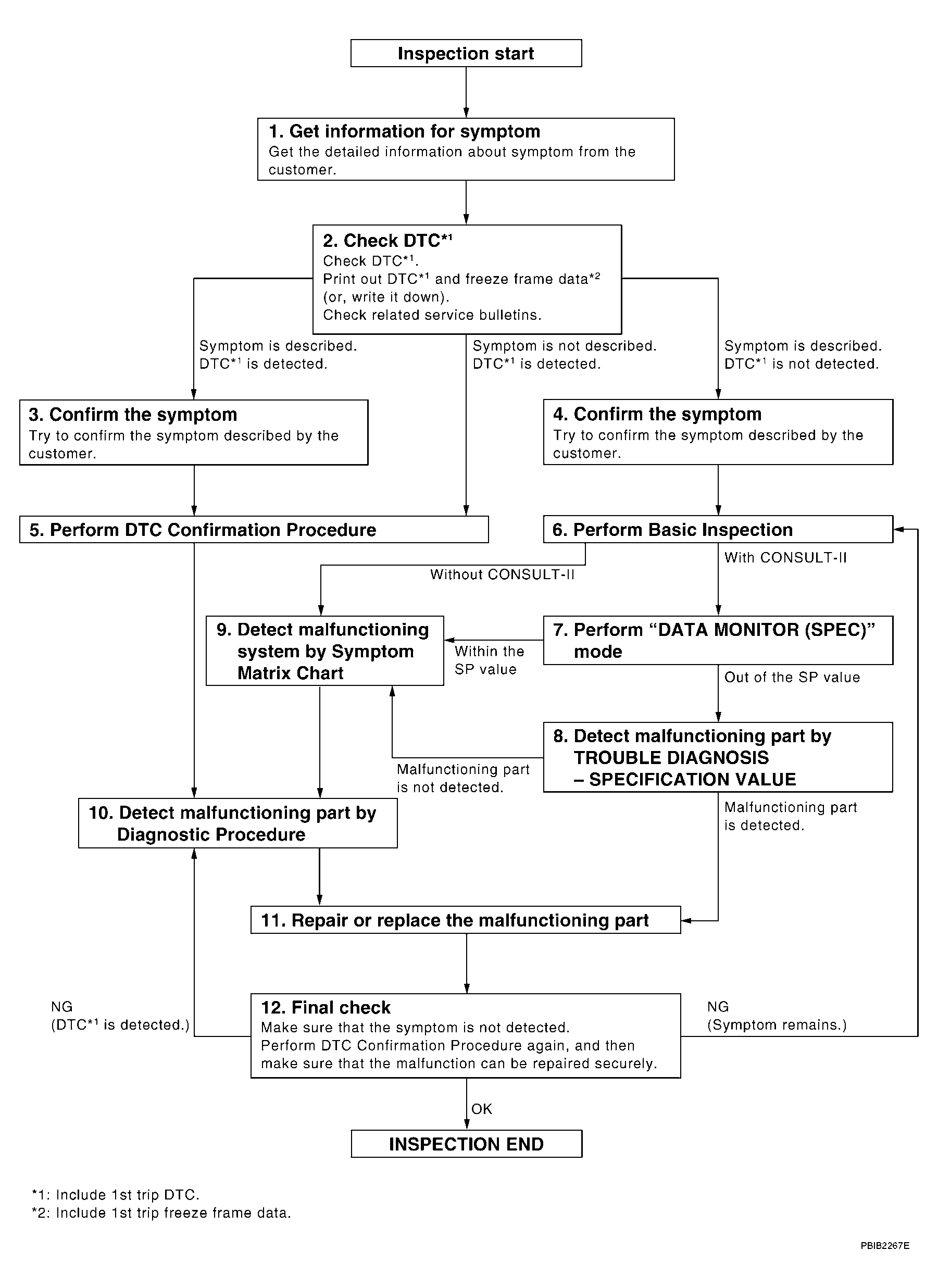

Fig 1: Identifying Work Flow Overall Sequence
G04143193Courtesy of NISSAN MOTOR CO., U.S.A.
