Inspection Procedure

1. Turn ignition switch OFF.
2. Connect GST to data link connector (1), which is located under LH dash panel near the hood opener handle.

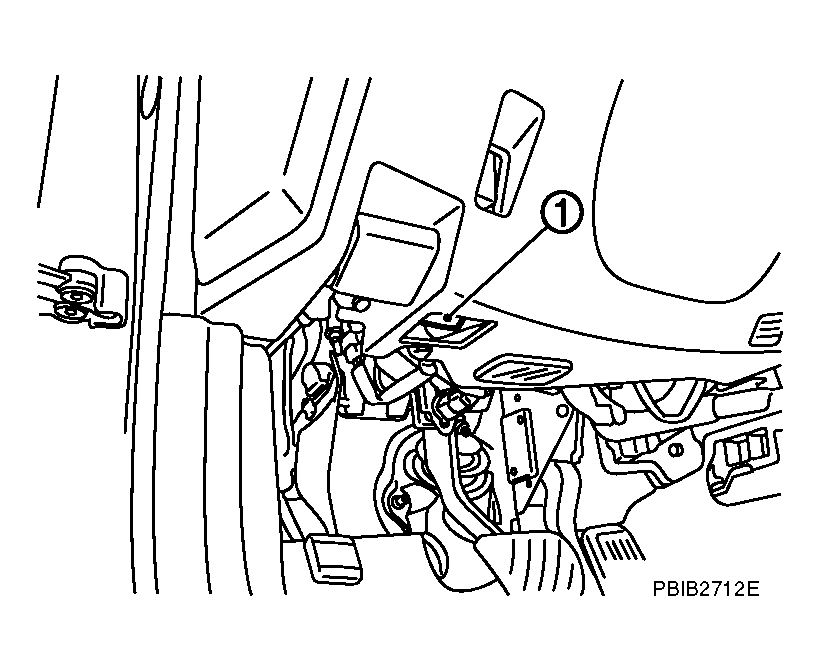

   Fig 1: Locating Data Link Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Turn ignition switch ON.
4. Enter the program according to instruction on the screen or in the operation manual.

   (*: Regarding GST screens in this information, sample screens are shown.)

   Fig 2: Identifying Generic Scan Tool Display

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Perform each diagnostic service according to each service procedure.

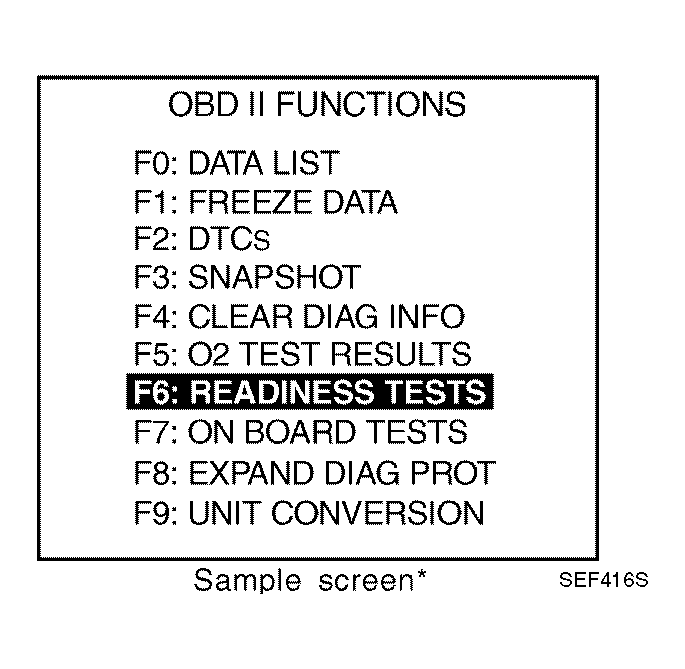

   Fig 3: Identifying Generic Scan Tool Display - OBD II Function

   Courtesy of NISSAN MOTOR CO., U.S.A.

For further information, see the GST Operation Manual of the tool maker.
