Overall Sequence

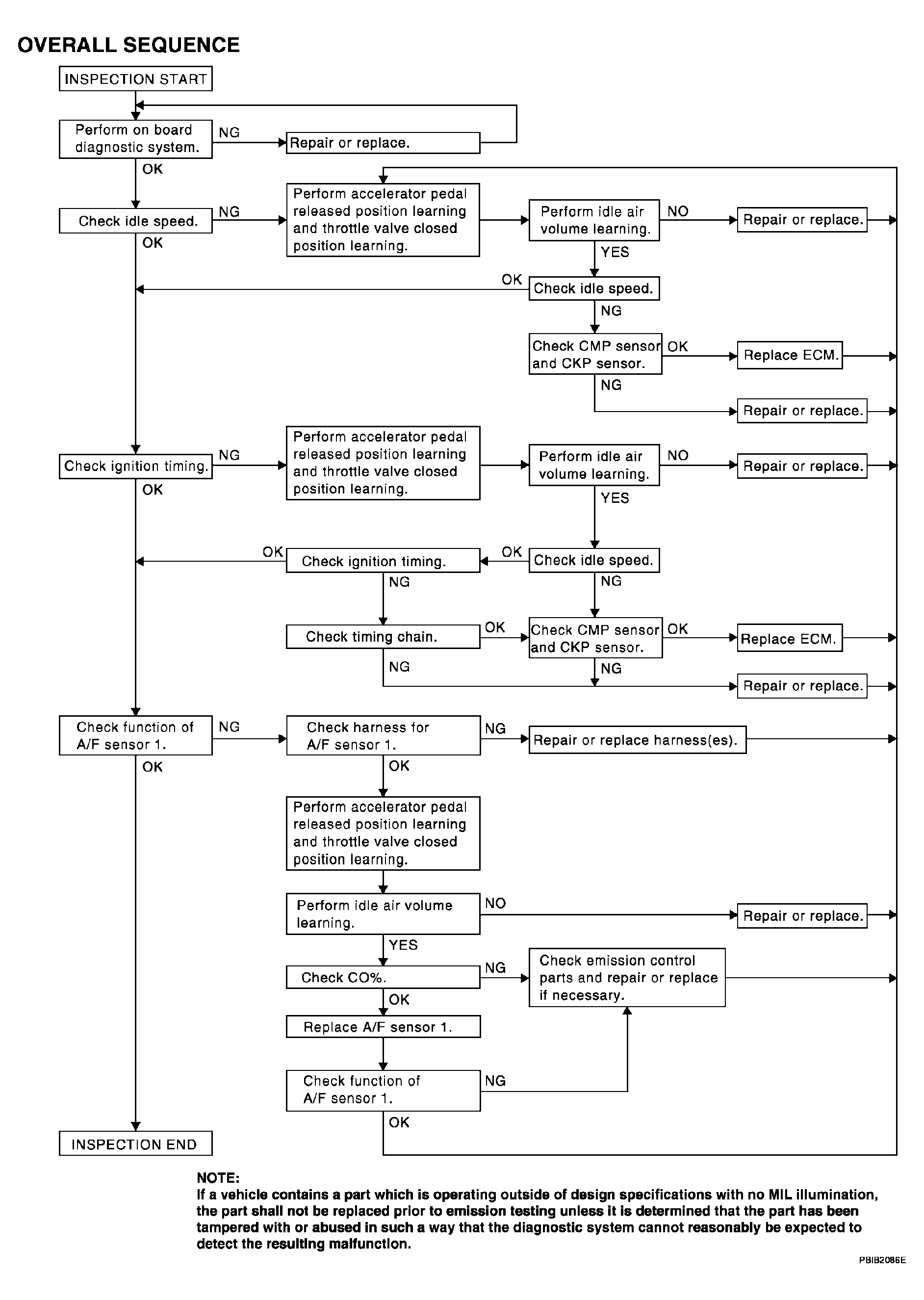

Fig 1: Overall Sequence Of Basic Service Procedure
G04143172Courtesy of NISSAN MOTOR CO., U.S.A.
