CONSULT-II Function (BCM): Notes

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.

DIAGNOSTIC CHART

BCM diagnostic test item	Check item diagnostic test mode	Content
RETAINED PWR	Work support	Changes setting of each function.
RETAINED PWR	Data monitor	Displays the input data of BCM in real time.

Turn ignition switch "ON".
Connect "CONSULT-II and CONSULT-II CONVERTER" to the data link connector (1).

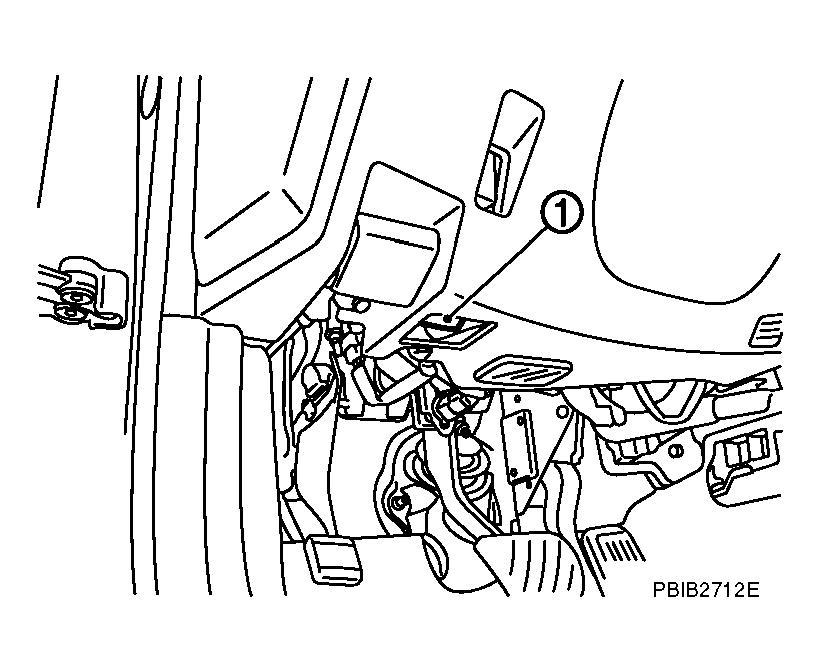

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

Fig 2: Consult-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM" is not indicated, go to Refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT "

Fig 3: Consult-II SELECT SYSTEM Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "RETAINED PWR".

Fig 4: CONSULT II Display - Select Test Item
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"ACTIVE TEST", "WORK SUPPORT" and "DATA MONITOR" are available.

Fig 5: Consult-II SELECT DIAG MODE Display Screen

Courtesy of NISSAN MOTOR CO., U.S.A.
