CHECK HOOD SWITCH
Check hood switch and hood fitting condition.

OK or NG
- OK : GO TO 2.
- NG : Adjust installation of hood switch.
CHECK HOOD SWITCH INPUT SIGNAL
With CONSULT-II

Check "HOOD SW" in "DATA MONITOR" mode with CONSULT-II.

When hood is open : HOOD SW ON

When hood is closed : HOOD SW OFF

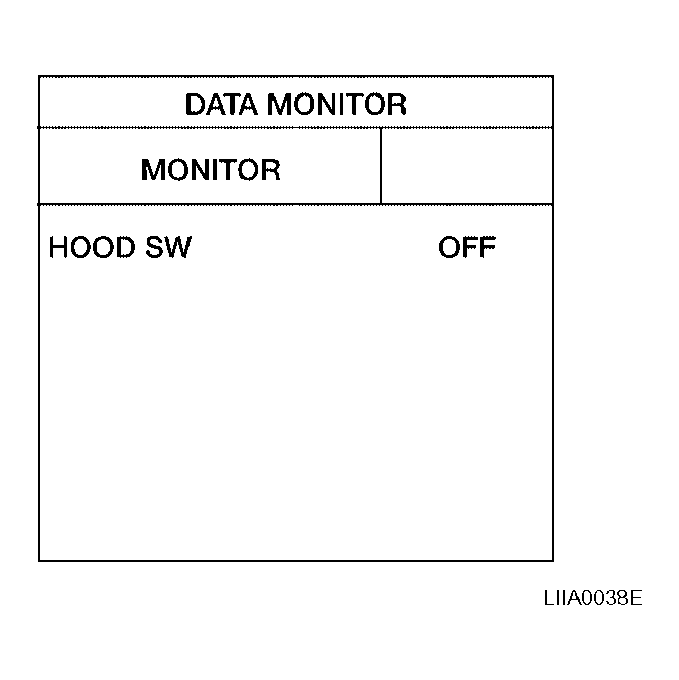

Fig 1: Identifying Scan Tool Display - Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between IPDM E/R harness connector E122 terminal 41 and ground.

OK or NG
- OK : Hood switch is OK.
- NG : GO TO 3.

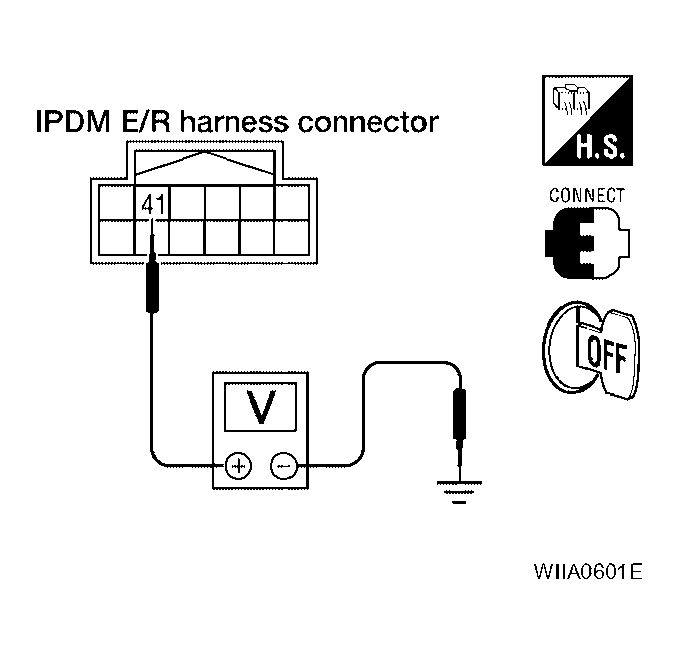

  Fig 2: Identifying Voltage Between IPDM E/R Harness Connector E122 Terminal 41 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK HOOD SWITCH

Turn ignition switch OFF.
Disconnect hood switch connector.

Check continuity between hood switch terminals 1 and 2.

TERMINALS CONTINUITY CHART

Terminals	Condition	Continuity
1- 2	Pressed	No
1- 2	Released	Yes

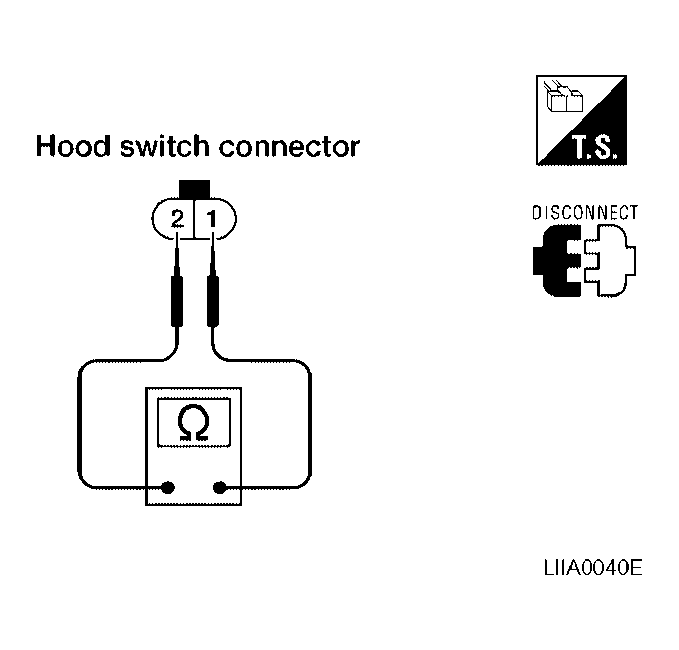

Fig 3: Identifying Continuity Between Hood Switch Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : Check the following:
- Hood switch ground circuit.
- Harness for open or short between hood switch and IPDM E/R
NG : Replace hood switch.
